Schneider Electric Comb Rail - A9XPH524
Notice: This product will be discontinued in the future

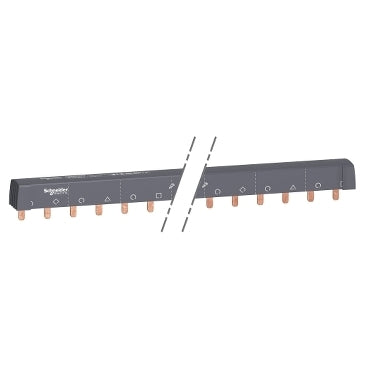

This comb rail from Schneider Electric Merlin Gerin's Acti9 series is used for interconnecting the phase(s) and neutral. The insulated terminal rail features 2 poles and 24 modules. Furthermore, the comb rail has a cross section of 16mm² and a rated continuous current of 100A.
Notice: This product will be discontinued in the future
Description
This Acti 9 horizontal busbar with 18mm modules is suitable for Acti 9 iC60 or Acti 9 iK60 and is cuttable. This product is designed for 3 (N+L) installations. The type is N-L1-N-L2-N-L3 (Neutral, Line). This is a set of 1 device. It is suitable for 12 devices (1P+N). The length is 430mm.
The total number of 18mm modules is 24. The pin diameter is 16mm2. The type of electrical connection is PIN. The number of phases is 3 and the number of poles is 4. The Ie nominal operating current at 40°C is 100A. The Isc short-circuit current is compatible with Schneider Electric circuit breakers' tripping capacity. The Ui nominal insulation voltage is 500VAC. The Ue nominal operating voltage is 415 V AC. The device color is white (RAL 9003). The pollution degree is 3.
According to the IEC 60695-2-1 standard, the fire resistance at 960°C within 30 years is self-extinguishing. It complies with IEC 60947-7-1 and IEC 61439-2 standards.
