Schneider Electric Circuit Breaker - M9F11416
Schneider Electric circuit breaker, tripping characteristic C, nom. (measuring) current 16A, voltage type AC/DC, 4 poles (total), width in module units 4, secondary device possible, connectable conductor cross-section duck 1 - 25mm², 4 protected poles, nom. (measuring) voltage 415V.
- Regular price
- $75.11 USD
We sell only to registered businesses
Description

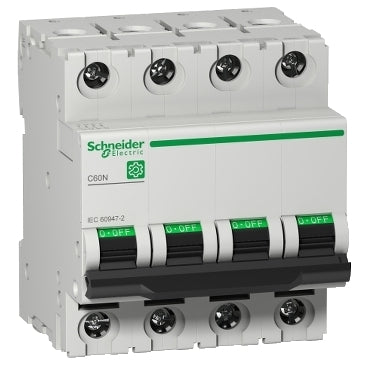

This Multi 9 C60N is a low-voltage circuit breaker (MCB). This product is a 4P circuit breaker with 4 protected poles. It has a nominal current of 16A and a C cut-off characteristic.
It can be mounted on a DIN rail for a modular installation. As a circuit breaker, the breaking capacity according to IEC/EN 60947-2 is 20kA at 230V AC and 10kA at 400V AC.
This power switch offers additional circuit protection against short circuit and overcurrent. It has an IP20 degree of protection (according to IEC/EN 60529) on the terminals. The degree of protection increases to IP40 when it is mounted in a modular housing.
- The quick closing mechanism, the overvoltage resistance and the high performance limitation extend the lifespan of this component.
- The cut-off or position indication functions are delivered remotely by adding electrical aids.
- The green indicator guarantees the physical opening of the contacts, so maintenance can be performed downstream.
