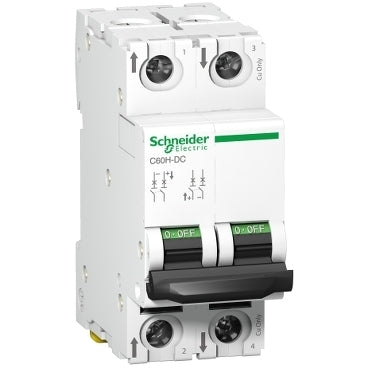

Schneider Electric Circuit Breaker - A9N61522
Schneider Electric circuit breaker, tripping characteristic C, nom. (measuring) current 2A, voltage type DC, 2 poles (total), width in module units 2, ancillary device possible, connectable conductor cross-section duck 1 - 25mm², 2 protected poles, nom. (measuring) voltage 440V.
- Regular price
- $69.94 USD
We sell only to registered businesses
Description
This Acti9 C60H-DC is a low voltage direct current miniature circuit breaker (MCB). It has 2P, a rated current of 2A, and a C tripping curve. The rated short circuit breaking capacity reaches up to 20kA at 220VDC, conforming to the GB 14048.2 standard. This product complies with both the industrial standard, EN/IEC 60898-1, and the residential standard, EN/IEC 60947-2. This miniature circuit breaker protects circuits against short circuit and overload current. It features VisiTrip for safety during maintenance and VisiSafe to reduce intervention time.
The Acti9 C60H-DC is used in direct current circuits, specifically for industrial control and automation, transport, and renewable energy. This device is dedicated to industrial control, automations, transport, and renewable energy applications. It has an electrical endurance of up to 3000 cycles and a mechanical endurance of up to 20000 cycles. The Ue operational voltage is 500VDC. The Ui rated insulation voltage is 500VDC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. It is mountable on a DIN rail. Its width is 4 pitches of 9mm. The pollution degree is 3. The overvoltage category is IV.
- The product color is white (RAL9003).
- The weight is 0.256kg.
According to the IEC 60529 standard, the degree of protection is IP20 and IP40 in an enclosure. The operating temperature ranges from -25°C to 70°C. The storage temperature ranges from -40°C to 85°C.
