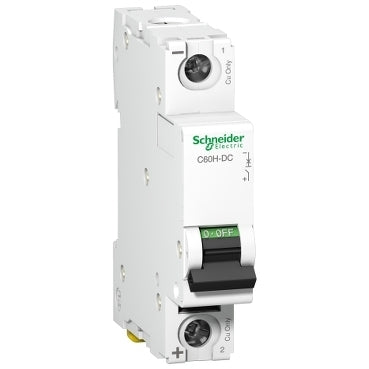

Schneider Electric Circuit Breaker - A9N61517
Schneider Electric circuit breaker, tripping characteristic C, nom. (measuring) current 40A, voltage type DC, 1 poles (total), width in module units 2, ancillary device possible, connectable conductor cross-section duck 1 - 35mm², 1 protected poles, nom. (measuring) voltage 220V.
- Regular price
- $36.40 USD
We sell only to registered businesses
Description
This Acti 9 C60H-DC is a low-voltage circuit breaker. This product is equipped with 1P, has a nominal current of 40A and a C cut-off characteristic.
The cut-off capacity at different voltages is as follows:
- At 110V DC: 20kA
- At 220V DC: 10kA
- At 250V DC: 6kA
This is according to IEC 60947-2. They combine functions such as short-circuit and overload protection, control, and isolation.
VisiTrip provides extra safety during maintenance and VisiSafe helps to shorten the intervention time. It has a longer life thanks to the high limits and fast closing. The fast opening of contacts prevents the loads from being disturbed in the event of a short circuit.
This device is intended for industrial control, automation, transportation, and renewable energy applications.
