Schneider Electric Circuit Breaker - A9F94432
Schneider electric acti9 ic60l mcbs 1 pole. Acti 9 schneider ic60l series multi-standard circuit breakers combine circuit protection against short circuit currents and circuit protection against overload currents it also protects people against indirect contact with tn and it neutral systems. Fully compliant with standards iec/en 60898 and iec/en 60947-2. Acti 9 is fully tested, approved and certified by national and international third parties.
- Regular price
- $220.00 USD
We sell only to registered businesses
Description

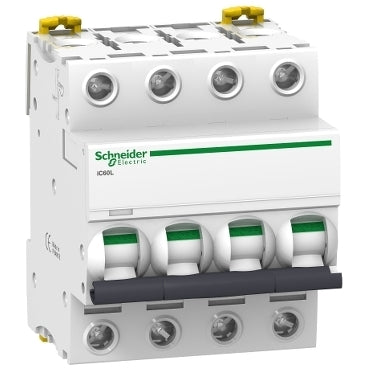

This Acti9 iC60L is a low-voltage circuit breaker. It is a 4P circuit breaker with 4 protected poles. It has a nominal current of 32A and a C tripping characteristic.
The tripping capacity of this circuit breaker is 15000A at 400VAC according to the standard EN/IEC 60898-1 (domestic standard) and 36kA at 220VAC to 240VAC according to the standard EN/IEC 60947-2 (industrial standard).
This iC60N circuit breaker complies with both the domestic standard EN/IEC 60898-1 and the industrial standard EN/IEC 60947-2. This circuit breaker protects power circuits against short circuits and overload currents.
The unique VisiTrip indicator shortens the search for the tripped circuit breaker by clearly marking it. The green VisiSafe indication guarantees the physical opening of the contacts, so maintenance can be carried out downstream. The quick tripping mechanism extends the life of this component.
This Schneider Electric circuit breaker has an electrical lifespan of up to 10,000 cycles and a mechanical lifespan of up to 20,000 cycles. The Ui assigned insulation voltage is 500VAC.
Its limitation class 3 (according to EN/IEC60898-1) reduces the cost of protecting the power circuit. It can be mounted on a DIN rail for a modular installation.
The width of this circuit breaker is 4 modules of 18mm. The pollution degree is 3 and the overvoltage category is IV. This product is executed in white color (RAL9003).
The dimensions are 72mm (W) x 85mm (H) x 78.5mm (D). The weight is 0.5kg. According to the standard IEC 60529, the degree of protection is IP20.
The level of protection increases to IP40 when it is mounted in a modular housing with insulation class II. The operating temperature is between -35°C and 70°C. The storage temperature is between -40°C and 85°C.
