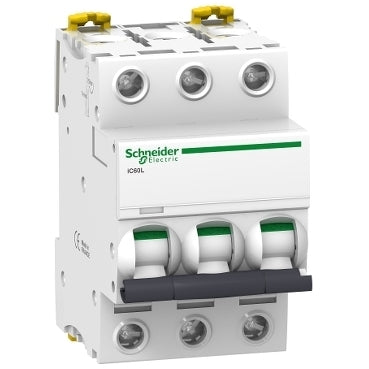

Schneider Electric Circuit Breaker - A9F94316
The schneider electric acti9 ic60l miniature circuit breaker is the safest, simplest and most efficient system for power distribution solutions. It delivers complete industry approved protection. It is perfect for commercial and industrial applications. It guarantees total safety during maintenance. It guarantees long life service. It has fast closing mechanism. It prevents unnecessary trips. It is easy to operate. It is easy to upgrade.
- Regular price
- $157.14 USD
We sell only to registered businesses
Description
This Acti9 iC60L is a low-voltage circuit breaker. It is a 3P circuit breaker with 3 protected poles. It has a nominal current of 16A and a C tripping characteristic.
The breaking capacity of this circuit breaker is 15000A at 400VAC according to the EN/IEC 60898-1 standard (domestic standard) and 50kA at 220VAC to 240VAC according to the EN/IEC 60947-2 standard (industrial standard).
This iC60N circuit breaker complies with both the domestic standard EN/IEC 60898-1 and the industrial standard EN/IEC 60947-2. This circuit breaker protects the circuits against short circuit and overload currents.
The unique VisiTrip indicator shortens the search for the tripped breaker by clearly marking it. The green indication of VisiSafe guarantees the physical opening of the contacts, so maintenance can be done downstream. The fast tripping mechanism extends the lifespan of this component.
This Schneider Electric circuit breaker has an electrical lifespan of up to 10000 cycles and a mechanical lifespan of up to 20000 cycles. The Ui assigned insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) reduces the costs for protecting the power circuit.
It can be mounted on a DIN rail for a modular installation. The width of this circuit breaker is 3 modules of 18mm. The pollution degree is 3 and the overvoltage category is IV. This product is executed in white colour (RAL9003).
The dimensions are 54mm (W) x 85mm (H) x 78.5mm (D). The weight is 0.375kg. According to the IEC 60529 standard, the protection degree is IP20. The protection degree increases to IP40 when it is mounted in a modular housing with insulation class II.
The operating temperature is between -35°C and 70°C. The storage temperature is between -40°C and 85°C.
