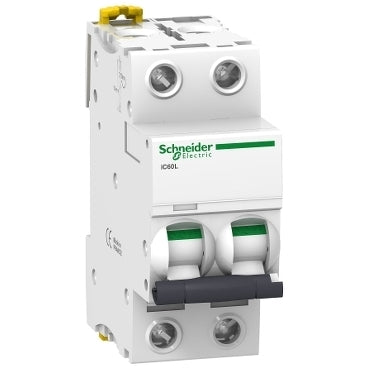

Schneider Electric Circuit Breaker - A9F94216
Schneider electric acti9 ic60l mcbs 1 pole. Acti 9 schneider ic60l series multi-standard circuit breakers combine circuit protection against short circuit currents and circuit protection against overload currents it also protects people against indirect contact with tn and it neutral systems. Fully compliant with standards iec/en 60898 and iec/en 60947-2. Acti 9 is fully tested, approved and certified by national and international third parties.
- Regular price
- $101.84 USD
We sell only to registered businesses
Description
This Acti9 iC60L is a low voltage circuit breaker. It is a 2P circuit breaker with 2 protected poles. It has a nominal current of 16A and a C cut-off characteristic. The cut-off capacity of this circuit breaker is 15000A at 400VAC according to EN/IEC 60898-1 standard (domestic standard) and 50kA at 220VAC to 240VAC according to EN/IEC 60947-2 standard (industrial standard).
This iC60N circuit breaker complies with both the domestic standard EN/IEC 60898-1 and the industrial standard EN/IEC 60947-2. This circuit breaker protects the current circuits against short circuit and overload currents. The unique VisiTrip indicator shortens the search for the tripped circuit breaker by clearly marking it. The green label of VisiSafe ensures the physical opening of the contacts, so that maintenance can be carried out downstream. The quick cut-off mechanism extends the life of this component.
This Schneider Electric circuit breaker has an electrical lifespan of up to 10000 cycles and a mechanical lifespan of up to 20000 cycles. The Ui assigned insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) reduces the costs for protecting the current circuit. It can be mounted on a DIN rail for a modular installation. The width of this circuit breaker is 2 modules of 18mm. The pollution degree is 3 and the overvoltage category is IV.
This product is executed in white colour (RAL9003). The dimensions are 36mm (W) x 85mm (H) x 78.5mm (D). The weight is 0.25kg. According to IEC 60529 standard, the degree of protection is IP20. The degree of protection increases to IP40 when it is mounted in a modular enclosure with insulation class II. The operating temperature is between -35°C and 70°C. The storage temperature is between -40°C and 85°C.
