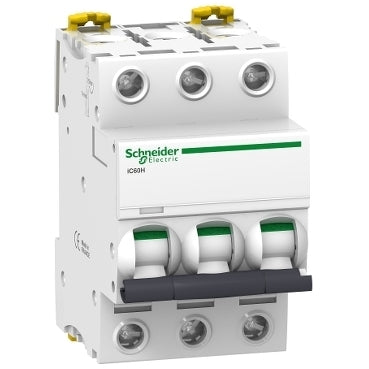

Schneider Electric Circuit Breaker - A9F89316
This iC60H circuit breaker has a visi-trip window. This signaling of shutdown due to a fault by a red mechanical status indicator is on the front of the automaton. The green strip on the switch of the Acti 9 iC60 circuit breaker ensures that the contacts are physically open and that work can be performed on the downstream circuit in complete safety. In addition, this Schneider Electric circuit breaker features a double clip for disassembly while the comb rail is still in place.
- Regular price
- $132.51 USD
We sell only to registered businesses
Description
The Acti9 iC60H is a multi-standard low-voltage circuit breaker with double tunnel connections. It's a 3P circuit breaker with 3 protected poles. The circuit breaker offers a nominal current of 16A and a C cut-off characteristic. Its switch-off capacity is 10000A at 400VAC as per the EN/IEC 60898-1 domestic standard and 30kA at 220VAC to 240VAC according to the EN/IEC 60947-2 industrial standard.
This iC60N circuit breaker complies with the domestic standard EN/IEC 60898-1 and the industrial standard EN/IEC 60947-2. It is designed to protect power circuits from short circuits and overload currents. The VisiTrip indicator uniquely shortens the search for the shut-off (tripped) circuit breaker by clearly identifying it. The VisiSafe's green indication ensures the physical opening of the contacts, allowing for downstream maintenance. The quick cut-off mechanism helps prolong the life of the component.
This Schneider Electric circuit breaker has an electrical lifespan of up to 10,000 cycles and a mechanical lifespan of up to 20,000 cycles. The assigned Ui insulation voltage is 500VAC. Its class 3 limitation (in accordance with EN/IEC60898-1) helps reduce the cost of protecting the power circuit. It can be mounted on a DIN rail for modular installation.
The circuit breaker spans 3 modules of 18mm in width. It falls under pollution degree 3 and overvoltage category IV. It is available in white color (RAL9003), and measures 54mm (W) x 85mm (H) x 78.5mm (D), and weighs 0.375kg. The protection degree as per the IEC 60529 standard is IP20. This increases to IP40 when mounted in a modular housing with insulation class II. Its operating temperature ranges between -35°C and 70°C, while the storage temperature ranges between -40°C and 85°C.
