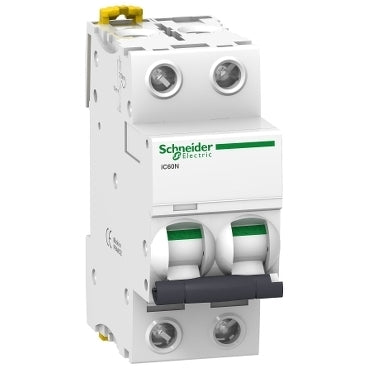

Schneider Electric Circuit Breaker - A9F79225
The schneider electric ic60a miniature circuit breaker is multi-standard circuit breaker which combine circuit protection against short-circuit current and circuit protection against overload current. It has 2 pole and has 25 a of current. Its width size. Ambient air temperature for operation -35 to 70 °c. Degree of protection ip20.
- Regular price
- $55.11 USD
We sell only to registered businesses
Description
This Acti9 iC60N is a low voltage circuit breaker. It is a 2P circuit breaker with 2 protected poles. It has a nominal current of 25A and a C cut-off characteristic. The cut-off capacity of this circuit breaker is 6000A at 400VAC according to the EN/IEC 60898-1 standard (domestic standard) and 20kA at 220VAC to 240VAC according to the EN/IEC 60947-2 standard (industrial standard).
This iC60N circuit breaker meets both the domestic EN/IEC 60898-1 standard and the industrial EN/IEC 60947-2 standard. This circuit breaker protects the power circuits against short-circuits and overload currents. The unique VisiTrip indicator shortens the search for the tripped breaker by clearly marking it. The green VisiSafe indication guarantees the physical opening of the contacts, so maintenance can be performed downstream. The quick cut-off mechanism extends the lifespan of this component.
This Schneider Electric circuit breaker has an electrical lifespan of up to 10,000 cycles and a mechanical lifespan of up to 20,000 cycles. The Ui assigned insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) reduces the costs for protecting the power circuit. It can be mounted on a DIN rail for a modular installation. The width of this circuit breaker is 2 modules of 18mm. The pollution degree is 3 and the overvoltage category is IV. This product is executed in white color (RAL9003).
- The dimensions are 36mm (W) x 85mm (H) x 78.5mm (D).
- The weight is 0.25kg.
- According to the IEC 60529 standard, the degree of protection is IP20.
- The degree of protection increases to IP40 when it is mounted in a modular enclosure with insulation class II.
- The operating temperature is between -35°C and 70°C.
- The storage temperature is between -40°C and 85°C.
