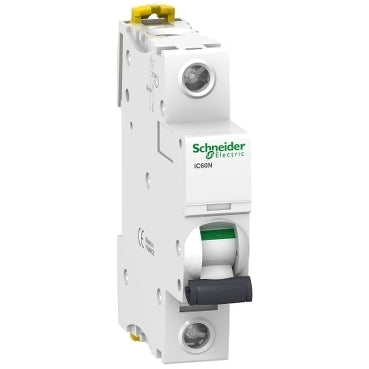

Schneider Electric Circuit Breaker - A9F79140
This iC60N circuit breaker has a visi-trip window. This signaling of shutdown due to a fault by a red mechanical status indicator is on the front of the automaton. The green strip on the switch of the Acti 9 iC60 circuit breaker ensures that the contacts are physically open and that work can be performed on the downstream circuit in complete safety. In addition, this Schneider Electric circuit breaker features a double clip for disassembly while the comb rail is still in place.
- Regular price
- $36.68 USD
We sell only to registered businesses
Description
This Acti9 iC60N is a low-voltage circuit breaker. It is a 1P circuit breaker with 1 protected pole. It has a nominal current of 40A and a C cut-off characteristic. The breaking capacity of this circuit breaker is 6000A at 230VAC according to the standard EN/IEC 60898-1 (domestic standard) and 10kA at 220VAC to 240VAC according to the standard EN/IEC 60947-2 (industrial standard). This iC60N circuit breaker meets both the domestic standard EN/IEC 60898-1 and the industrial standard EN/IEC 60947-2.
This circuit breaker protects the power circuits against short-circuit and overload currents. The unique VisiTrip indicator shortens the search for the tripped circuit breaker by clearly marking it. The green indicator of VisiSafe guarantees the physical opening of the contacts, so maintenance can be performed downstream. The fast cut-off mechanism extends the life of this component. This Schneider Electric circuit breaker has an electrical life of up to 10000 cycles and a mechanical life of up to 20000 cycles. The Ui assigned insulation voltage is 500VAC.
Its limitation class 3 (according to EN/IEC60898-1) reduces the costs for protecting the power circuit. It can be mounted on a DIN rail for a modular installation. The width of this circuit breaker is 1 module of 18mm. The pollution degree is 3 and the overvoltage category is IV. This product is executed in white colour (RAL9003). The dimensions are 18mm (W) x 85mm (H) x 78.5mm (D). The weight is 0.215kg.
According to the standard IEC 60529, the protection degree is IP20. The protection degree increases to IP40 when it is mounted in a modular enclosure with insulation class II. The operating temperature is between -35°C and 70°C. The storage temperature is between -40°C and 85°C.
