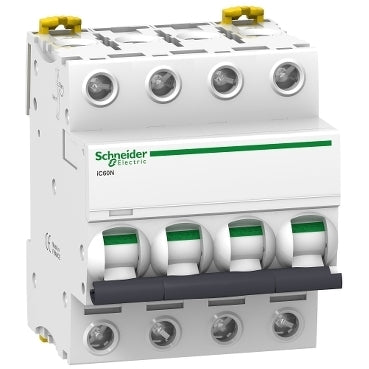

Schneider Electric Circuit Breaker - A9F75450
Schneider electric acti9 i60n mcbs 4 pole. Acti 9 ic60n series multi-standard circuit breakers combine circuit protection against short circuit currents and circuit protection against overload currents it also protects people against indirect contact with tn and it neutral systems. Fully compliant with standards iec/en 60898 and iec/en 60947-2. Acti 9 is fully tested, approved and certified by national and international third parties.
- Regular price
- $220.58 USD
We sell only to registered businesses
Description
This Acti9 iC60N is a low voltage circuit breaker. It is a 4P circuit breaker with 4 secured poles. It has a nominal current of 50A and a D cutoff characteristic. The cut-off capacity of this circuit breaker is 6000A at 400VAC according to the EN/IEC 60898-1 standard (domestic standard) and 20kA at 220VAC to 240VAC according to the EN/IEC 60947-2 standard (industrial standard).
This iC60N circuit breaker complies with both the domestic standard EN/IEC 60898-1 and the industrial standard EN/IEC 60947-2. It protects power circuits against short circuits and overload currents. The unique VisiTrip indicator shortens the search for the tripped breaker by clearly marking it.
The green VisiSafe indicator ensures the physical opening of the contacts, allowing downstream maintenance to be carried out. The fast cut-off mechanism extends the life of this component. This Schneider Electric circuit breaker has an electrical life of up to 10,000 cycles and a mechanical life of up to 20,000 cycles. The Ui assigned insulation voltage is 500VAC.
Its limitation class 3 (according to EN/IEC60898-1) reduces the costs for protecting the power circuit. It can be mounted on a DIN rail for modular installation. The width of this breaker is 4 modules of 18mm. The pollution degree is 3 and the overvoltage category is IV.
This product is white (RAL9003). The dimensions are 72mm (W) x 85mm (H) x 78.5mm (D). The weight is 0.5kg.
According to the IEC 60529 standard, the degree of protection is IP20. The degree of protection increases to IP40 when mounted in a modular housing with insulation class II. The operating temperature is between -35°C and 70°C. The storage temperature is between -40°C and 85°C.
