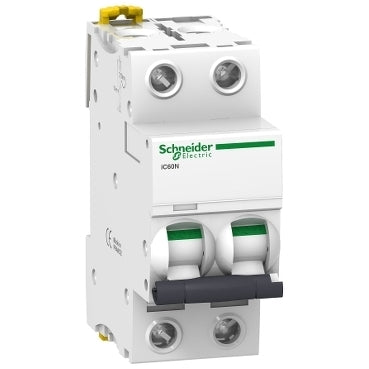

Schneider Electric Circuit Breaker - A9F75216
Schneider electric acti9 i60n mcbs 2 pole. Acti 9 ic60n series multi-standard circuit breakers combine circuit protection against short circuit currents and circuit protection against overload currents it also protects people against indirect contact with tn and it neutral systems. Fully compliant with standards iec/en 60898 and iec/en 60947-2. Acti 9 is fully tested, approved and certified by national and international third parties.
- Regular price
- $80.47 USD
We sell only to registered businesses
Description
This text describes the Acti9 iC60N, which is a low voltage circuit breaker. It's a 2P circuit breaker with two protected poles. It has a nominal current of 16A and a D cut-off characteristic. The cut-off capacity of this circuit breaker is 6000A at 400VAC according to the EN/IEC 60898-1 standard (domestic standard) and 20kA at 220VAC to 240VAC according to the EN/IEC 60947-2 standard (industrial standard). This iC60N circuit breaker complies with both the domestic standard EN/IEC 60898-1 and the industrial standard EN/IEC 60947-2. It protects the power circuits from short circuits and overload currents. The unique VisiTrip indicator shortens the search for the cut-off (tripped) automatic device by clearly marking it. The green indication of VisiSafe ensures the physical opening of the contacts, so maintenance downstream can be performed. The quick cut-off mechanism extends the life of this component.
This Schneider Electric circuit breaker has an electrical life of up to 10000 cycles and a mechanical life of up to 20000 cycles. The Ui assigned insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) reduces the costs for protecting the power circuit. It can be mounted on a DIN rail for modular installation. The width of this device is 2 modules of 18mm. The pollution degree is 3 and the surge category is IV. This product is executed in white color (RAL9003). The dimensions are 36mm (W) x 85mm (H) x 78.5mm (D). The weight is 0.25kg. According to the IEC 60529 standard, the degree of protection is IP20. The degree of protection increases to IP40 when it is mounted in a modular enclosure with insulation class II. The operating temperature is between -35°C and 70°C. The storage temperature is between -40°C and 85°C.
