Schneider Electric Circuit Breaker - A9F75210
Schneider electric acti9 i60n mcbs 2 pole. Acti 9 ic60n series multi-standard circuit breakers combine circuit protection against short circuit currents and circuit protection against overload currents it also protects people against indirect contact with tn and it neutral systems. Fully compliant with standards iec/en 60898 and iec/en 60947-2. Acti 9 is fully tested, approved and certified by national and international third parties.
- Regular price
- $77.34 USD
We sell only to registered businesses
Description

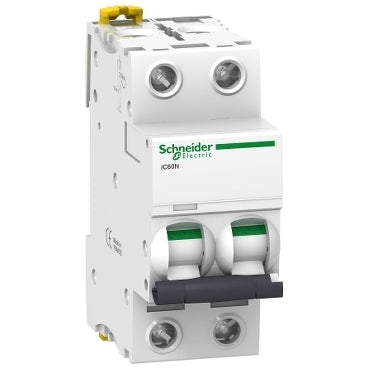

This Acti9 iC60N is a low-voltage circuit breaker. It is a 2P circuit breaker with 2 protected poles. It has a nominal current of 10A and a D cut-off characteristic. The cut-off capacity of this circuit breaker is 6000A at 400VAC according to the EN/IEC 60898-1 standard (domestic standard) and 20kA at 220VAC to 240VAC according to the EN/IEC 60947-2 standard (industrial standard). This iC60N circuit breaker meets both the domestic EN/IEC 60898-1 standard and the industrial EN/IEC 60947-2 standard.
This circuit breaker protects the power circuits against short circuits and overload currents. The unique VisiTrip indicator shortens the search for the switched off (tripped) circuit breaker by marking it clearly. The green VisiSafe indication guarantees the physical opening of the contacts, so that maintenance can be performed downstream. The quick cut-off mechanism extends the life of this component.
This Schneider Electric circuit breaker has an electrical life of up to 10000 cycles and a mechanical life of up to 20000 cycles. The Ui assigned insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) reduces the costs for protecting the power circuit. It can be mounted on a DIN rail for a modular installation. The width of this circuit breaker is 2 modules of 18mm. The pollution degree is 3 and the overvoltage category is IV. This product comes in white (RAL9003).
- The dimensions are 36mm (W) x 85mm (H) x 78.5mm (D).
- The weight is 0.25kg.
- According to the IEC 60529 standard, the degree of protection is IP20.
- The degree of protection increases to IP40 when it is mounted in a modular housing with insulation class II.
- The operating temperature is between -35°C and 70°C.
- The storage temperature is between -40°C and 85°C.
