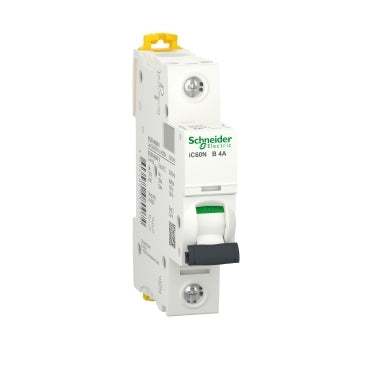

Schneider Electric Circuit Breaker - A9F73104
Schneider Electric circuit breaker, tripping characteristic B, nom. (measuring) current 4A, voltage type AC/DC, 1 poles (total), width in module units 1, secondary device possible, connectable conductor cross-section duck 1 - 25mm², 1 protected poles, nom. (measuring) voltage 230V.
- Regular price
- $20.45 USD
Description
This Acti9 iC60N is a low voltage circuit breaker. It is a 1P circuit breaker with 1 protected pole. It has a nominal current of 4A and a B-cutoff characteristic. The cutoff capacity is 6000A at 230VAC in accordance with the EN/IEC 60898-1 standard (domestic standard) and 50kA at 220VAC to 240VAC in accordance with the EN/IEC 60947-2 standard (industrial standard). This iC60N circuit breaker complies with both the domestic standard EN/IEC 60898-1 and the industrial standard EN/IEC 60947-2.
It protects the power circuits from short circuits and overload currents. The unique VisiTrip indicator shortens the search for the tripped breaker by clearly marking it. The green VisiSafe indication guarantees the physical opening of the contacts, so that maintenance can be carried out downstream. The rapid disconnect mechanism extends the life of this component.
This Schneider Electric circuit breaker has an electrical lifespan of up to 10,000 cycles and a mechanical lifespan of up to 20,000 cycles. The assigned insulation voltage is 500VAC. It has limitation class 3 (according to EN/IEC60898-1) which reduces the cost of protecting the power circuit. It can be mounted on a DIN rail for modular installation. The width of this breaker is 1 module of 18mm.
It has a pollution degree of 3 and the overvoltage category is IV. The color of this product is white (RAL9003). The dimensions are 18mm (W) x 85mm (H) x 78.5mm (D) and the weight is 0.215kg. According to the IEC 60529 standard, the protection degree is IP20. The protection degree increases to IP40 when it is mounted in a modular enclosure with insulation class II. The operating temperature is between -35°C and 70°C. The storage temperature is between -40°C and 85°C.
