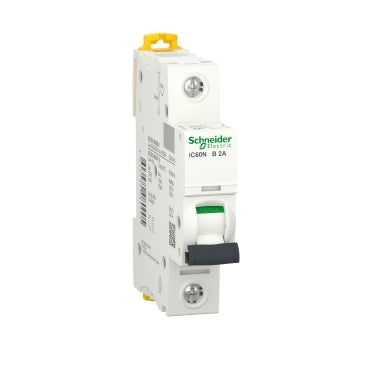

Schneider Electric Circuit Breaker - A9F73102
Schneider Electric circuit breaker, tripping characteristic B, nom. (measuring) current 2A, voltage type AC/DC, 1 poles (total), width in module units 1, secondary device possible, connectable conductor cross-section duck 1 - 25mm², 1 protected poles, nom. (measuring) voltage 230V.
- Regular price
- $20.62 USD
We sell only to registered businesses
Description
This Acti9 iC60N is a low-voltage circuit breaker. It is a 1P circuit breaker with 1 protected pole. It has a nominal current of 2A and a B tripping characteristic. The tripping capacity of this circuit breaker is 6000A at 230VAC according to the standard EN/IEC 60898-1 (domestic standard) and 50kA at 220VAC to 240VAC according to the standard EN/IEC 60947-2 (industrial standard). This iC60N circuit breaker complies with both the domestic standard EN/IEC 60898-1 and the industrial standard EN/IEC 60947-2. This circuit breaker protects the power circuits against short-circuits and overload currents.
The unique VisiTrip indicator shortens the search for the disconnected (tripped) breaker by clearly marking it. The green display of VisiSafe guarantees the physical opening of the contacts, so that maintenance can be carried out downstream. The quick tripping mechanism extends the life of this component. This Schneider Electric circuit breaker has an electrical life of up to 10,000 cycles and a mechanical life of up to 20,000 cycles. The Ui assigned insulation voltage is 500VAC.
Its limitation class 3 (according to EN/IEC60898-1) reduces the costs of protecting the power circuit. It can be mounted on a DIN rail for a modular installation. The width of this breaker is 1 module of 18mm. The pollution degree is 3 and the overvoltage category is IV. This product is executed in white color (RAL9003). The dimensions are 18mm (W) x 85mm (H) x 78.5mm (D). The weight is 0.215kg. According to the standard IEC 60529, the degree of protection is IP20. The degree of protection increases to IP40 when it is installed in a modular housing with insulation class II. The operating temperature is between -35°C and 70°C. The storage temperature is between -40°C and 85°C.
