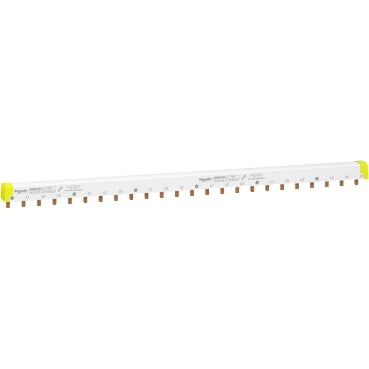

Schneider Electric C60 Comb Rail - A9XPH424
Notice: This product will be discontinued in the future
Acti9 cutable comb busbars. Range of cutable comb busbars compatible with ic60, iid, isw-na, ik60, iid k and isw switch disconnector. Mounting mode: horizontal. Rated operational voltage: 415 v ac. Rated insulation voltage: 500 v ac.
Notice: This product will be discontinued in the future
Description
This text describes an Acti 9 horizontal busbar with 18mm modules for Acti 9 iC60 or Acti 9 iK60 that can be cut. This product is intended for N+3L installations. The type is N-L1-L2-L3 (Neutral, Line). This is a set of one device. It is suitable for six devices (3P+N). The length is 430mm. The total number of 18mm modules is 24. The pin diameter is 16mm2. The type of electrical connection is PIN.
The number of phases is 3, and the number of poles is 4. The Ie nominal operating current at 40°C is 100A. The Isc short-circuit current is compatible with the switching capacity of Schneider Electric circuit breakers. The Ui nominal insulation voltage is 500VAC. The Ue nominal operating voltage is 415V AC.
The device color is white (RAL 9003). The pollution degree is 3. According to the IEC 60695-2-1 standard, the fire resistance at 960°C is self-extinguishing within 30 years.
It complies with the following standards:
- IEC 60947-7-1
- IEC 61439-2
