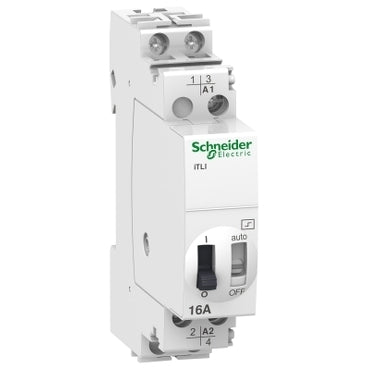

Schneider Electric Bistable Relay - A9C30815
Schneider electric impulse relay, 16a, 110v dc - acti9 series - a9c30815. Choose this impulse relay from schneider electric to control pushbuttons or lighting circuits. Its latching function is suited to turning devices on and off from one or more locations, making it suitable for spaces of all sizes. The relay's effective electrical control leads to more efficient lighting management, which helps to save energy. It's insulated for improved electrical protection for operators as well as unqualified personnel, increasing workplace safety.
- Regular price
- $45.00 USD
We sell only to registered businesses
Description
This Acti9 iTLi is a modular impulse relay. It is a changeover contact with one normally open and one normally close contact. The rated current is 16A, with an operating voltage ranging from 24VAC to 250VAC. It operates with a control voltage of 230VAC to 240VAC or 110VDC.
The electrical endurance goes up to 200,000 cycles for AC-21 or 100,000 cycles for AC-22. The switching frequency is five switching operations per minute or 100 switching operations per day. The duration of the command order should be between 50ms to one second. This device is primarily used for lighting control applications.
The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. It is mountable on a DIN rail. The pollution degree is three, and the overvoltage category is IV.
The dimensions are 18mm (W) x 84mm (H) x 60mm (D). The degree of protection is IP20 and IP40 when placed in an enclosure. The operating temperature ranges from -20°C to 50°C, whereas the storage temperature ranges from -40°C to 70°C. This product complies with IEC/EN 60669-1 and IEC/EN 60669-2-2 standards.
