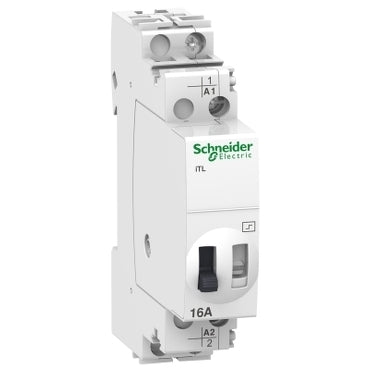

Schneider Electric Bistable Relay - A9C30211
Acti9 itl impulse relays. Itl impulse relays are used to control by pushbuttons lighting circuits consisting of incandescent lamps, low-voltage halogen lamps, fluorescent lamps and discharge lamps. Closing of the impulse relay pole is triggered by an impulse on the coil. Having two stable mechanical positions, the pole will be opened by the next impulse. Can be controlled by an unlimited number of pushbuttons. Zero energy consumption.
- Regular price
- $36.84 USD
We sell only to registered businesses
Description
This Acti 9 iTL is a modular and reliable impulse switch. This single-pole device has 1 NO contact. The nominal current is 16A, 24V AC up to 250V AC operating voltage and it works with 48V AC or 24V DC control voltage. The electrical durability is guaranteed up to 200,000 cycles for AC-21 or 100,000 cycles for AC-22.
The maximum switching frequency is 5 switching movements per minute or 100 switching movements per day. The duration of the command must be between 50 ms and 1s. The protection degree is IP20 and becomes IP40 when this product is placed in a housing. It is easy to mount on a DIN rail. It is mainly used for light control applications. This product complies with IEC/EN 60669-1, IEC/EN 60669-2-2.
