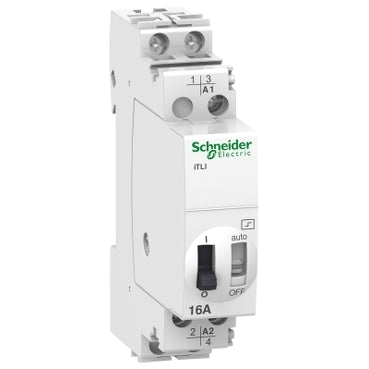

Schneider Electric Bistable Relay - A9C30115
Acti9 itl impulse relays. Itl impulse relays are used to control by pushbuttons lighting circuits consisting of incandescent lamps, low-voltage halogen lamps, fluorescent lamps and discharge lamps. Closing of the impulse relay pole is triggered by an impulse on the coil. Having two stable mechanical positions, the pole will be opened by the next impulse. Can be controlled by an unlimited number of pushbuttons. Zero energy consumption.
- Regular price
- $43.07
Description
This Acti9 iTLi is a modular impulse relay. It features a changeover contact with one normally open and one normally close contact. The rated current is 16A, with an operating voltage ranging from 24VAC to 250VAC. It operates using either a 24VAC or 12VDC control voltage. The electrical endurance can reach up to 200000 cycles for AC-21 or 100000 cycles for AC-22. The switching frequency can be either 5 switching operations per minute or 100 switching operations per day. The duration of the command order should fall between 50ms to 1s. This product is mainly used for lighting control applications. The Ui rated insulation voltage is 440VAC, while the Uimp rated impulse withstand voltage is 6kV. The operating frequency can be either 50Hz or 60Hz. Its design allows for DIN rail mounting. The pollution degree is rated at 3 and the overvoltage category is IV. The dimensions of this product are 18mm (W) x 84mm (H) x 60mm (D). It offers a degree of protection of IP20 and can reach IP40 when in an enclosure. The operating temperature ranges from -20°C to 50°C, and the storage temperature from -40°C to 70°C. This product complies with IEC/EN 60669-1 and IEC/EN 60669-2-2 standards.
