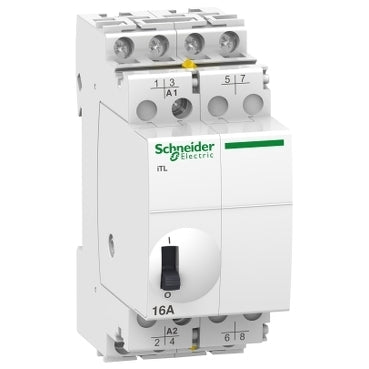

Schneider Electric Bistable Relay - A9C30114
Schneider Electric bistable relay, coil voltage 1 24V, coil voltage type 1 AC, supply voltage 24 - 415V, DIN rail, 4 make contacts, nom. (measuring) switching current 16A, coil voltage type 2 DC, width in module units 2, frequency coil voltage 1 50 - 60Hz, manual operation, built-in depth 43.5mm.
- Regular price
- $106.15 USD
We sell only to registered businesses
Description
This Acti 9 iTL is a modular and reliable impulse switch. This 4-pole device has 4 NO contacts. The nominal current is 16A, 24V AC to 250V AC operating voltage and it works with 24V AC or 12V DC control voltage. The electrical durability is guaranteed up to 200,000 cycles for AC-21 or 100,000 cycles for AC-22. The maximum switching frequency is 5 switching movements per minute or 100 switching movements per day. The duration of the command should be between 50 ms and 1s. The degree of protection is IP20 and becomes IP40 when this product is placed in a housing. It is easy to mount on a DIN rail. It is mainly used for light control applications. This product complies with IEC/EN 60669-1, IEC/EN 60669-2-2.
