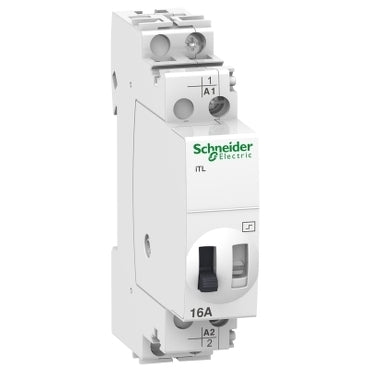

Schneider Electric Bistable Relay - A9C30111
Acti9 itl impulse relays. Itl impulse relays are used to control by pushbuttons lighting circuits consisting of incandescent lamps, low-voltage halogen lamps, fluorescent lamps and discharge lamps. Closing of the impulse relay pole is triggered by an impulse on the coil. Having two stable mechanical positions, the pole will be opened by the next impulse. Can be controlled by an unlimited number of pushbuttons. Zero energy consumption.
- Regular price
- $35.99
Description
This Acti9 iTL is a modular impulse relay. This 1P device has 1 normally open contact.
The rated current is 16A, with an operating voltage of 24VAC to 250VAC and it operates with a control voltage of 24VAC or 12VDC.
Its electrical endurance can reach up to 200,000 cycles AC-21 or 100,000 cycles AC-22.
The switching frequency is 5 switching operations per minute or 100 switching operations per day.
The command order duration should be between 50ms to 1s.
It is primarily used for lighting control applications. The Ui rated insulation voltage is 440VAC.
The Uimp rated impulse withstand voltage is 6kV. The operating frequency is either 50Hz or 60Hz.
It can be mounted on a DIN rail. It has a pollution degree of 3 and an overvoltage category of IV.
The dimensions are 18mm in width, 84mm in height, and 60mm in depth.
It has a degree of protection of IP20 and IP40 in an enclosure.
The operating temperature ranges from -20°C to 50°C, and the storage temperature ranges from -40°C to 70°C.
This product complies with IEC/EN 60669-1 and IEC/EN 60669-2-2 standards.
