Schneider Electric Acti 9 Circuit Breaker - A9F78320
Schneider Electric Acti 9 circuit breaker, tripping characteristic B, nom. (measuring) current 20A, voltage type AC/DC, 3 poles (total), width in module units 3, secondary device possible, connectable conductor cross-section duck 1 - 25mm², 3 protected poles, nom. (measuring) voltage 400V.
- Regular price
- $80.88 USD
We sell only to registered businesses
Description

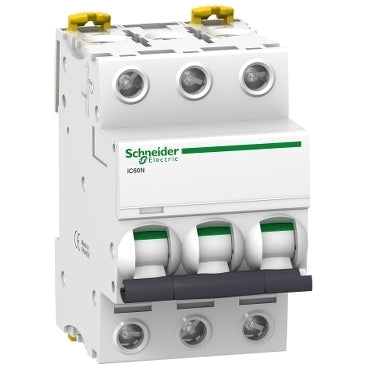

This Acti9 iC60N is a low voltage circuit breaker. It is a 3P circuit breaker with 3 protected poles. It has a nominal current of 20A and a B cut-off characteristic. The cut-off capacity of this circuit breaker is 6000A at 400VAC according to the standard EN/IEC 60898-1 (domestic standard) and 20kA at 220VAC to 240VAC according to the standard EN/IEC 60947-2 (industrial standard).
This iC60N circuit breaker meets both the domestic standard EN/IEC 60898-1 and the industrial standard EN/IEC 60947-2. This circuit breaker protects the electrical circuits from short circuit and overload currents. The unique VisiTrip indicator shortens the search for the switched off (tripped) circuit breaker by clearly marking it. The green indication of VisiSafe guarantees the physical opening of the contacts, so that maintenance can be carried out downstream. The rapid cut-off mechanism extends the life of this component.
This Schneider Electric circuit breaker has an electrical life of up to 10,000 cycles and a mechanical life of up to 20,000 cycles. The Ui assigned insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) reduces the costs for protecting the electrical circuit. It can be mounted on a DIN rail for a modular installation. The width of this circuit breaker is 3 modules of 18mm. The pollution degree is 3 and the overvoltage category is IV.
This product is executed in the color white (RAL9003). The dimensions are 54mm (W) x 85mm (H) x 78.5mm (D). The weight is 0.375kg. According to the standard IEC 60529, the degree of protection is IP20. The degree of protection increases to IP40 when it is mounted in a modular enclosure with insulation class II. The operating temperature is between -35°C and 70°C. The storage temperature is between -40°C and 85°C.
