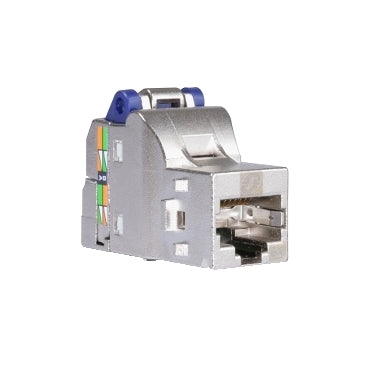

Schneider Electric Actassi Modulaire Connector - VDIB1771XB01
Schneider Electric Actassi modular connector, silver, category 6A (IEC), jack (chassis part) design, connector type RJ45 8(8), suitable for solid conductor, shielded, without tools, AWG range 23 - 24, suitable for round cable, connection type other.
- Regular price
- $18.06 USD
We sell only to registered businesses
Description
This ACTASSI S-ONE DPM is a state-of-the-art RJ45 connector for cabling system solutions designed for buildings and data centres. Its one-piece design allows faster and safer installation and delivers a Cat6A high performance level. This toolless RJ45 connector is part of the entire ACTASSI range to create full cabling solutions, backed by an extended system warranty.
It is designed for shielded infrastructure and is multi-standard certified (IEC, TIA, UL) as well as Green Premium compliant (RoHS/REACH). The connector is delivered in an individual bag and is open, ready to be used. It is a Cat6A shielded toolless RJ45 connector with an S-ONE DPM footprint and comes in an individual bag. The one-piece design is easy to handle and make a connection. It is delivered open and ready to use.
- A U-shape for cable entry eases the installer's job.
- An integrated earth drain contact provides double earthing.
- A smart bridle will automatically lock the cable and provide 360-degree earthing.
- A central cable entry for optimized performances and a protected IDC so that it is impossible to damage the cable or fingers.
It is component certified according to ISO/IEC 60603-7. An audible 'click' lets you know that the S-ONE is closed and the connection is done. There's a quick release button to re-open the jack in case of a wiring check or modification required. It is compatible with all ACTASSI range with an extended system warranty.
