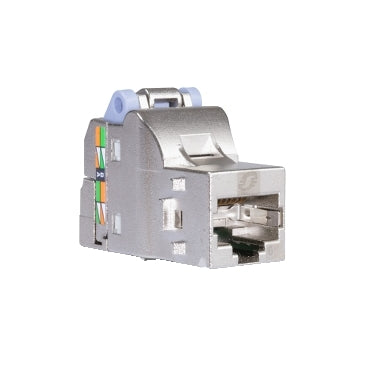

Schneider Electric Actassi Modulaire Connector - VDIB17716B01
Schneider Electric Actassi modular connector, silver, category 6, design jack (chassis part), connector type RJ45 8(8), suitable for solid conductor, shielded, tool-free, AWG range 23 - 24, suitable for round cable, connection type other.
- Regular price
- $21.66 USD
We sell only to registered businesses
Description
This ACTASSI S-ONE DPM is a state-of-the-art RJ45 connector for cabling system solutions designed for buildings and data centres. Its one-piece design allows for faster, safer installation and delivers Cat6 high-performance level. This tooless RJ45 connector is part of the entire ACTASSI range, creating comprehensive cabling solutions, backed by an extended system warranty. It is designed for a shielded infrastructure and is multi-standard certified (IEC, TIA, UL) as well as Green Premium compliant (RoHS/REACH). The connector is delivered in an individual bag, ready to be used.
Cat6 shielded tooless RJ45 connector with S-ONE DPM footprint is delivered in an individual bag. Its one-piece design is easy to handle and facilitates connection. It comes ready to use with a U-shape for cable entry to ease the installer's job. The integrated earth drain contact provides double earthing. The smart bridle automatically locks the cable and provides 360-degree earthing. It has a central cable entry for optimized performances and a protected IDC so that it's impossible to damage the cable or fingers. The component is certified according to ISO/IEC 60603-7.
An audible click lets you know that the S-ONE is closed and the connection is done. A quick-release button allows you to re-open the jack in case of wiring check or modification requirement. It is compatible with the entire ACTASSI range with an extended system warranty.
