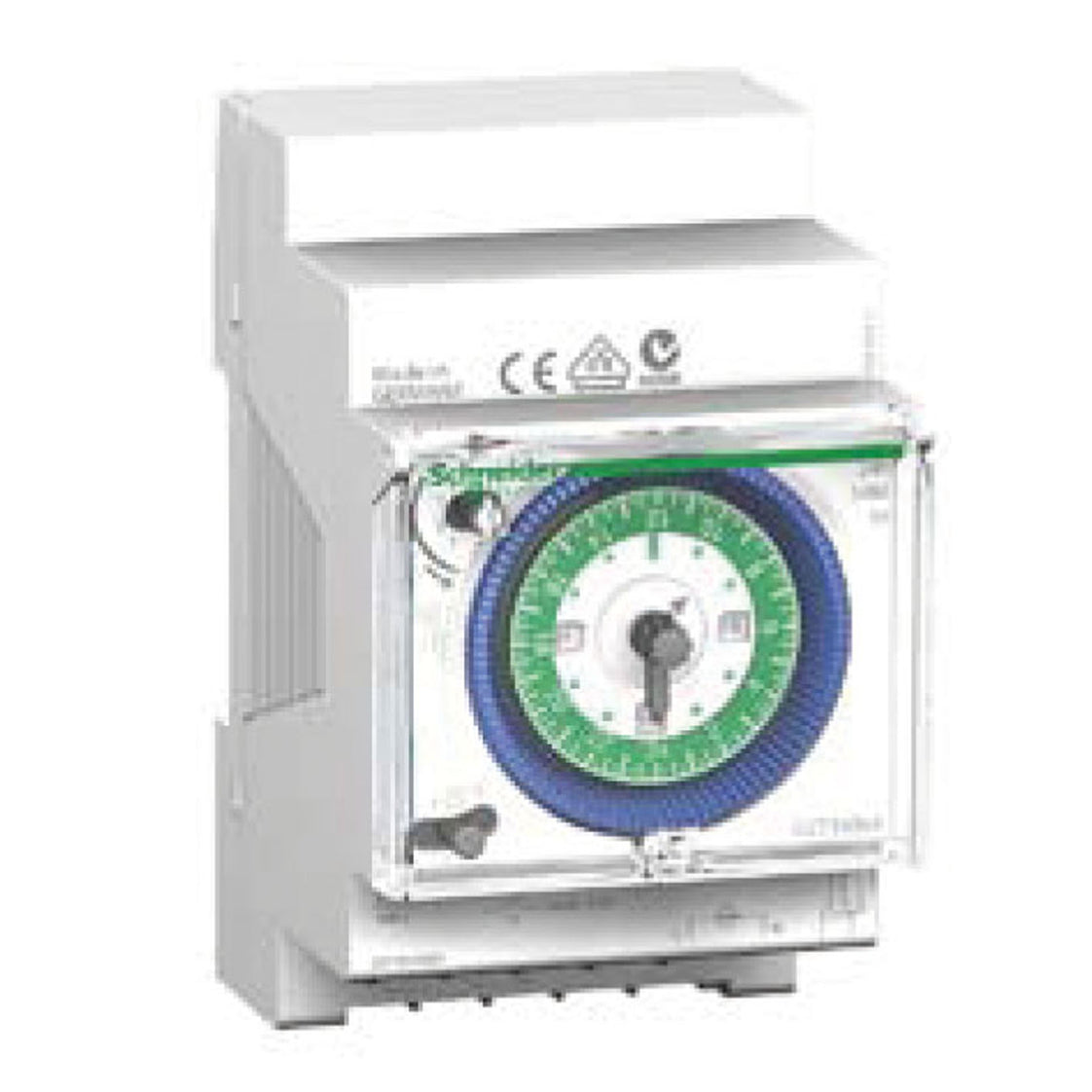

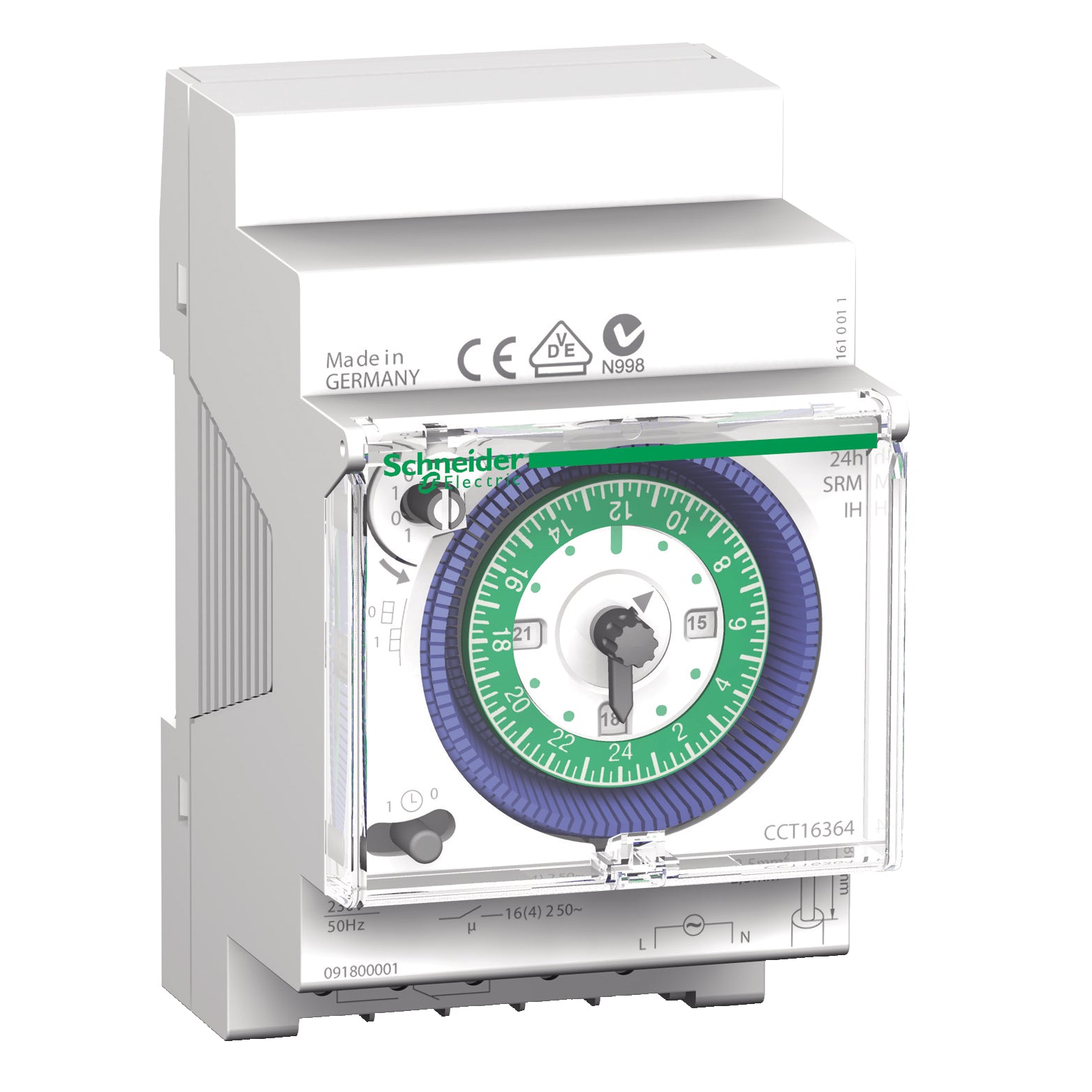

Schneider Electric 24h Analog Time Switch Single Channel - CCT16364
The Schneider Electric M is an analog time switch for panel building with dimensions of 54x66x90mm. It is designed for a DIN-rail and operates on a 24-hour program, powered by a supply voltage of 230V. It features a changeover contact execution, has a single channel, and offers IP20 degree of protection. It occupies three module units in width and operates at a supply voltage frequency of 50Hz, with an accuracy deviation of 1 second per day. The IH mechanical time switch, with a width of 54mm or 6 units of 9mm each, automatically switches loads on and off in accordance with a daily user-inputted program. The minimum time between two switchings is 15 minutes, with 48 On and 48 Off operations. Manual override is possible through its one-channel output.
- Regular price
- $60.75 USD
We sell only to registered businesses
Description
The Schneider Electric M is an analog time switch for panel building with dimensions of 54x66x90mm. It is designed for a DIN-rail and operates on a 24-hour program, powered by a supply voltage of 230V. It features a changeover contact execution, has a single channel, and offers IP20 degree of protection. It occupies three module units in width and operates at a supply voltage frequency of 50Hz, with an accuracy deviation of 1 second per day. The IH mechanical time switch, with a width of 54mm or 6 units of 9mm each, automatically switches loads on and off in accordance with a daily user-inputted program. The minimum time between two switchings is 15 minutes, with 48 On and 48 Off operations. Manual override is possible through its one-channel output.
