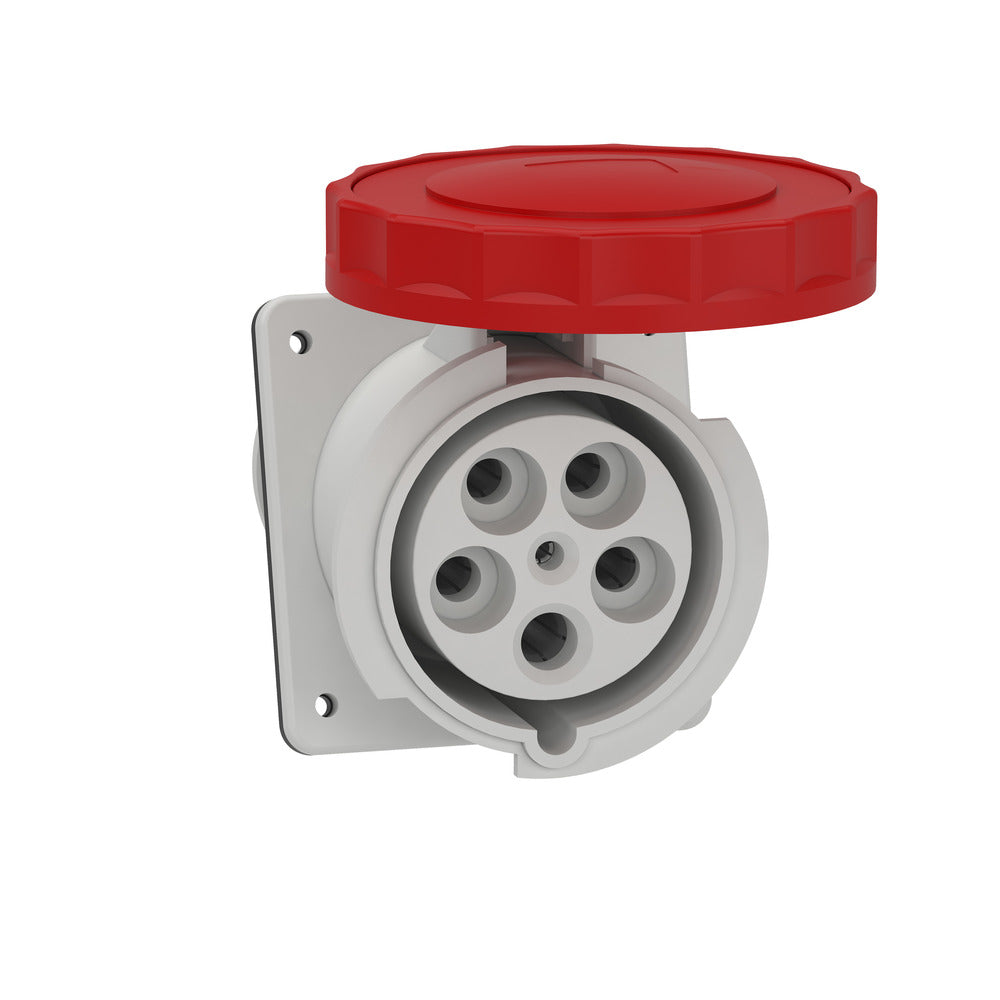

Schneider Electric 125A Industrial Panel Socket IP67 - 81295
Notice: This product will be discontinued in the future
Industrial 3P+N+E panel mount socket rated at 125A with 400VAC operating voltage. Features IP67 dust and water protection with IK08 impact resistance. Designed for 16-70mm² cables with terminal entries from 26-48mm. Includes angled mounting base (110x114mm), screw terminal connections, and operates at 50/60Hz with 6h clock position.
Notice: This product will be discontinued in the future
Description
Industrial 3P+N+E panel mount socket rated at 125A with 400VAC operating voltage. Features IP67 dust and water protection with IK08 impact resistance. Designed for 16-70mm² cables with terminal entries from 26-48mm. Includes angled mounting base (110x114mm), screw terminal connections, and operates at 50/60Hz with 6h clock position.
Pros:
- IP67 rated for excellent dust and water protection
- Wide cable compatibility from 16mm² to 70mm²
- High current capacity of 125A at 400VAC
- Robust IK08 impact resistance rating
