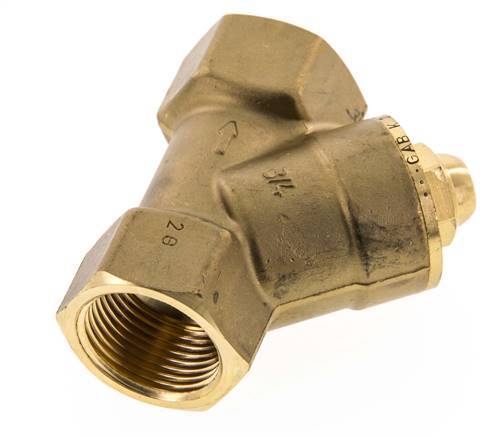

Rp 3/4'' Brass Y Check Valve 10 bar (145 psi) NBR
Female threaded Rp 3/4 inch Y check valve made of brass with an NBR sealing. When the pressure drops below the minimum opening pressure, a spring closes the valve to prevent backflow. This non-return valve can be installed horizontally or vertically. The angle seat design leads to a higher flow rate than a same sized inline valve. The angle seat form is sometimes referred to as 'Y-shaped check valve' or Y check valve. The maximum operating pressure is 10 bar (145 psi). The valve is suitable for operating temperatures between -10 and 90 °C (14 and 194 °F).
- Regular price
- $43.51 USD
We sell only to registered businesses
Description
Female threaded Rp 3/4 inch Y check valve made of brass with an NBR sealing. When the pressure drops below the minimum opening pressure, a spring closes the valve to prevent backflow. This non-return valve can be installed horizontally or vertically. The angle seat design leads to a higher flow rate than a same sized inline valve. The angle seat form is sometimes referred to as 'Y-shaped check valve' or Y check valve. The maximum operating pressure is 10 bar (145 psi). The valve is suitable for operating temperatures between -10 and 90 °C (14 and 194 °F).
Pros:
- Length in accordance to DIN 3202-M8 standard
- Removable plug for easy maintenance
- Lower flow resistance than inline valves
