Round Double Acting Cylinder 63-320mm - Magnetic

Round Double Acting Cylinder 63-320mm - Magnetic
Image may vary slightly
See specifications for accurate information.
Reference: P27SA
Brand: Airtec
Mfr. Part: HM-63-320

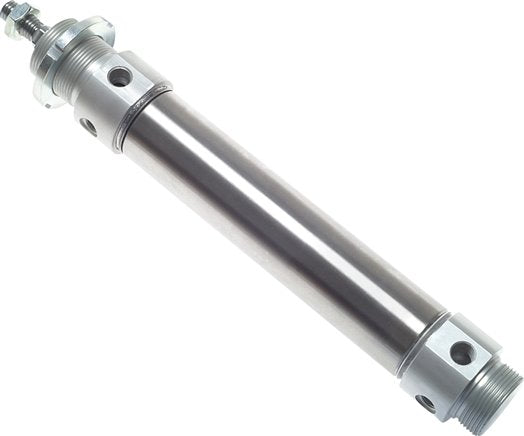

This is a double acting round pneumatic cylinder with a Ø63 mm bore and 320 mm stroke. The operating pressures is 1 to 10 bar (14.5 to 145.04 psi). The cylinder is self-lubricating and has a magnetic piston for position sensing. The end rod thread size is M16. Wide range of mounting accessories available. The cylinder head and foot are made from aluminum, the cylinder tube is made from 304 stainless steel and the piston rod is made from chromium plated steel. Suitable for temperatures of -20 to 80 °C.

View all
Regular price
$506.93 USD
excl VAT

In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 2 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United States: Free
Expected delivery in 4 - 5 business days

Description
Specifications
Downloads
Related products

This pneumatic cylinder is double acting, meaning it requires air pressure to extend and retract the rod. The cylinder is not standardized and adheres to round cylinders. Typically, this cylinder is used for repairs. For new construction, it is better to use pneumatic ISO 15552 cylinders. The bore size is 63 mm and it has a stroke length of 320 mm. This cylinder has an operating pressure of 1 to 10 bar (14.5 to 145.04 psi). The piston rod has a M16 threads at the end. The piston contains a magnetic element. This allows precise position feedback of the rod location by mounting (one or more) magnetic sensors, such as reed or hall sensors. The cylinder has two G 3/8 inch ports for the air routing. The cylinder can be mounted rigid or flexible with a wide range of mounting options, such as rod swivel joint ends (ISO 8139) or rod fork ends. The cylinder head and foot are made from aluminum, the cylinder tube is made from 304 stainless steel and the piston rod is made from chromium plated steel.

Pros:

  • Double acting cylinders can apply pressure in two directions and offer more motion control than single acting cylinders
  • The cylinder is self lubricating and requires little maintenance

Cons:

  • Not suited for icy conditions
  • Damping, but not adjustable
