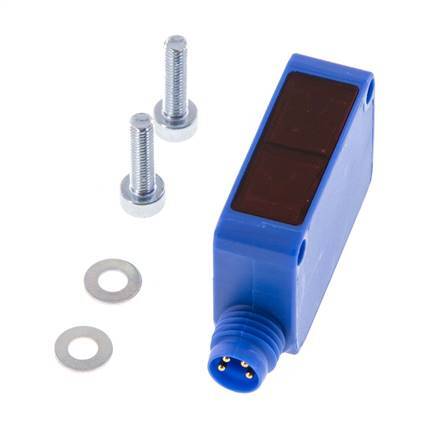

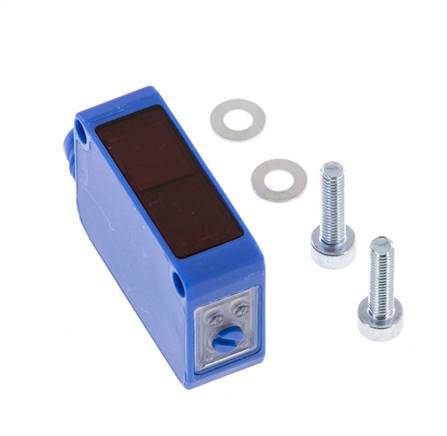

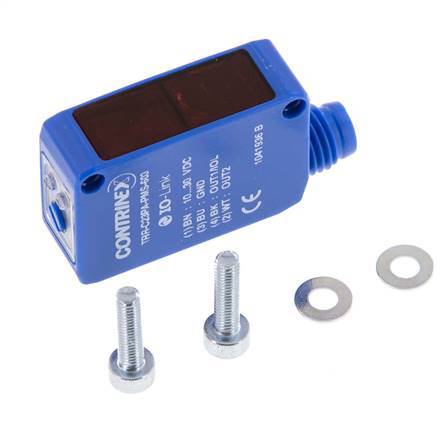

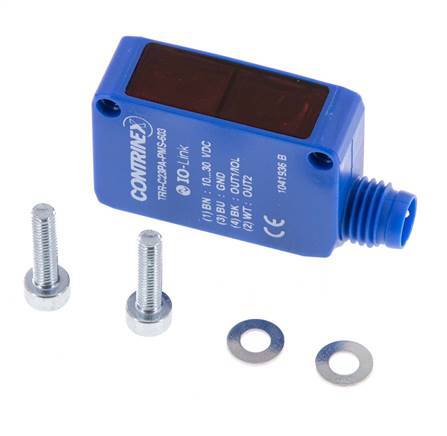

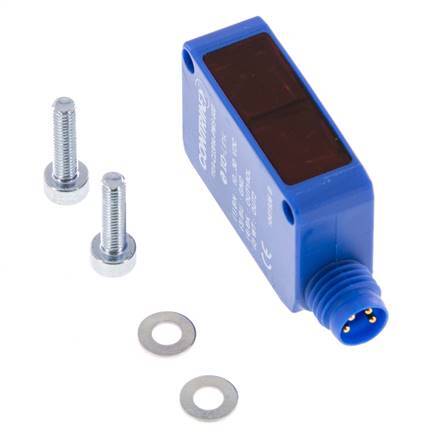

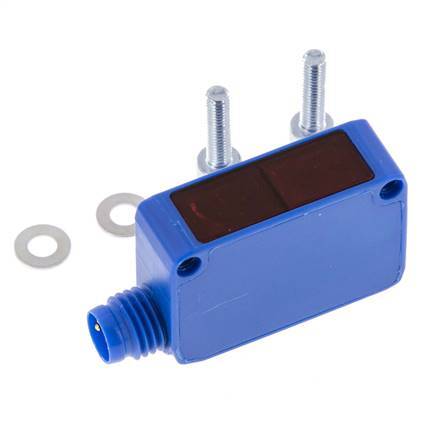

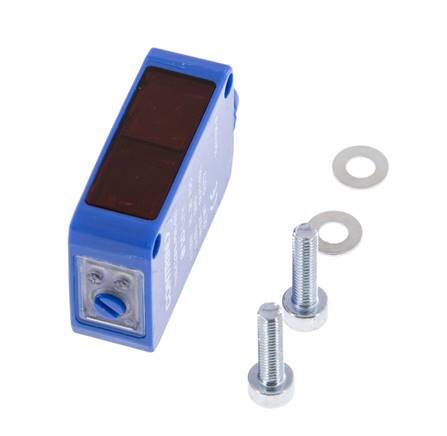

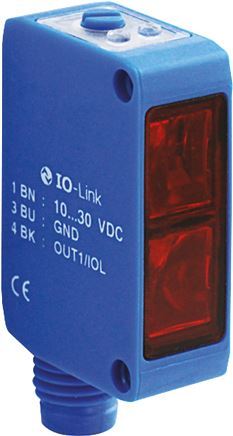

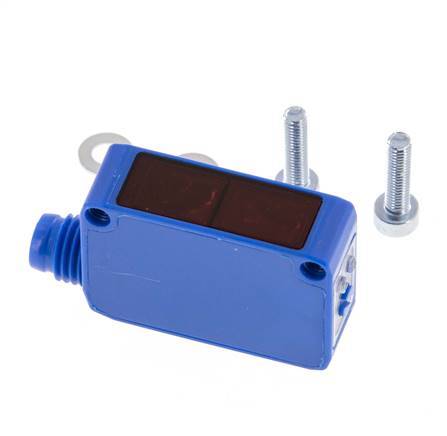

Retroreflective Photoelectric Sensor 10-5000 mm M8 4-pin
This retroreflective photoelectric sensor has transmitter and receiver are integrated into one housing. It is suitable to work for transparent objects. The detection range is from 10 to 5000 mm and the maximum switching distance is the 4200 mm. It has an M8 connector with 4-pin. Switching mode: PIN 4 - light-switching / IO link, PIN 2 - dark-switching. The operating voltage 10 - 30 V DC and the control output 100mA (PNP). The sensor is IO-Link capable.
- Regular price
- $152.43 USD
We sell only to registered businesses
Description
In a retroreflective photoelectric sensor, the transmitter and receiver are integrated into one housing. A reflector reflects the light beam back from the transmitter to the receiver. Light beams are interrupted by objects to be acquired, and outputs are connected through them. The color or shape of the object does not affect its function. Compared to the one-way light barrier, the retroreflective photoelectric sensor only requires one active component. This sensor is suitable to work for transparent objects.
