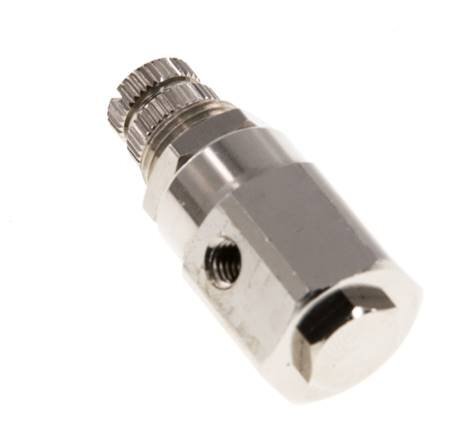

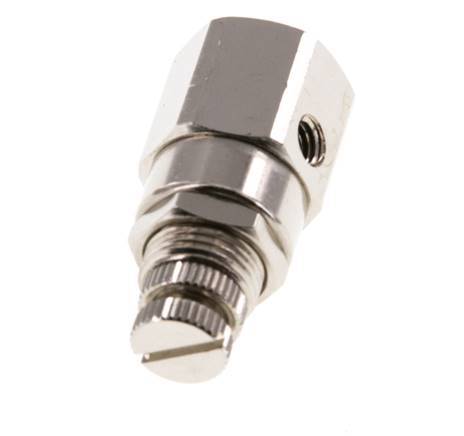

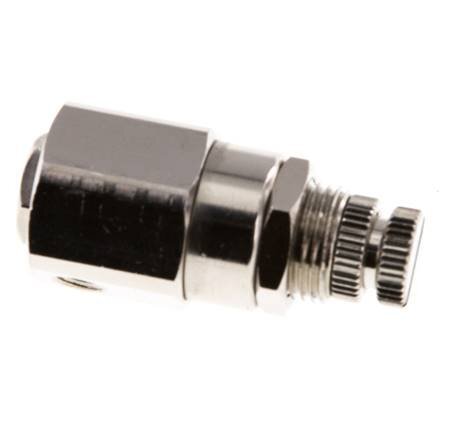

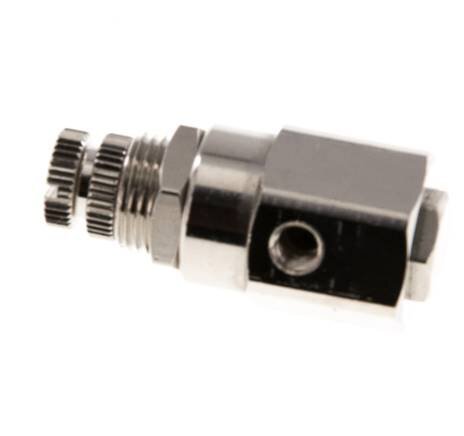

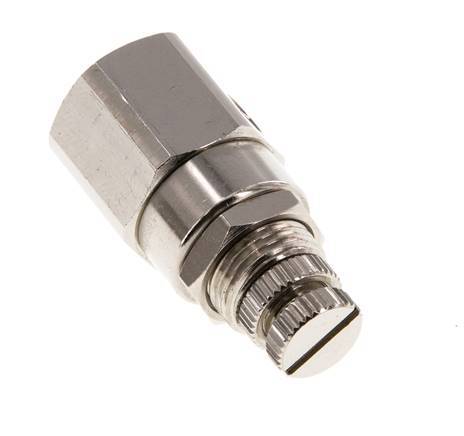

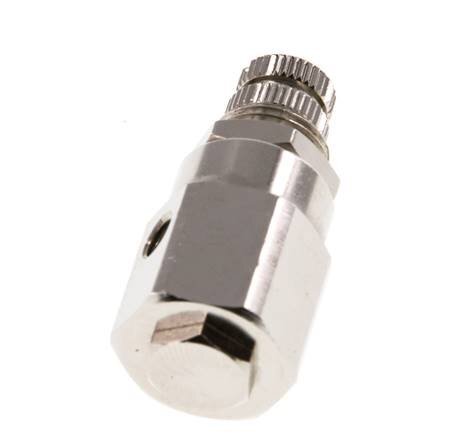

Pressure Regulator M5 75 l/min 1.0-8.0bar/14-116psi Brass Air Water Standard 0
This m5 pneumatic pressure regulator controls the output pressure to a set, stable level even when the input pressure varies. The adjustable output pressure range is 1.0 to 8.0 bar (14 to 116 psi). The max flow rate is 75 l/min. Suitable for a 10.0 bar (145 psi) max input and temperatures between -20 and 60 °C (-4 and 140 °F). To adjust the output pressure, pull the hand wheel up and twist.
- Regular price
- $30.46 USD
Description
The pressure regulator adjusts the pressure continuously to a stable level, even when the input pressure varies. The level can be adjusted between1.0 to 8.0 bar (14 to 116 psi). This model has m5 ports. The maximum flow rate is 75 l/min. It is recommended to select a filter with a maximum flow rate 1.5 to 2 times higher than the maximum flow rate in your system to avoid excessive pressure drop. Additionally, keep in mind that lower input pressures may reduce the achievable maximum flow rate, so ensure your system pressure is sufficient for optimal performance. Note that the pressure regulator controls the output pressure, not the flow rate. The output pressure can be adjusted by pulling the hand wheel up and twisting.
The maximum input pressure is 10.0 bar (145 psi) and the temperature range is between -20 and 60 °C (-4 and 140 °F). The housing material is made out of brass. This pressure regulator is suitable for water and air.
Mounting brackets need to be ordered separately.
