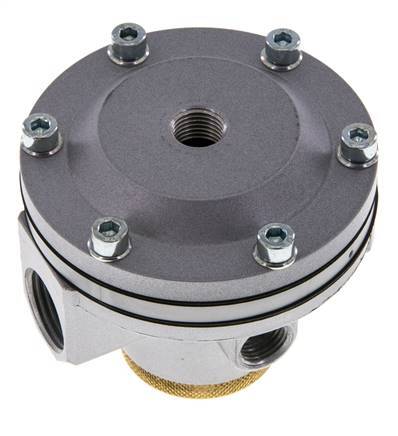

Pressure Regulator Pilot Operated G1 1/2'' 50000 l/min 0.0-16.0bar/0-232psi Aluminium Standard 8
This G 1 1/2 inch pneumatic pressure regulator controls the output pressure to a set, stable level even when the input pressure varies. The adjustable output pressure range is 0.0 to 16.0 bar (0 to 232 psi). The regulator is self-relieving. The max flow rate is 50000 l/min (always use the flow chart for correct sizing). Suitable for a 25.0 bar (363 psi) max input and temperatures between -10 and 80 °C (14 and 176 °F).
- Regular price
- $634.19
Description

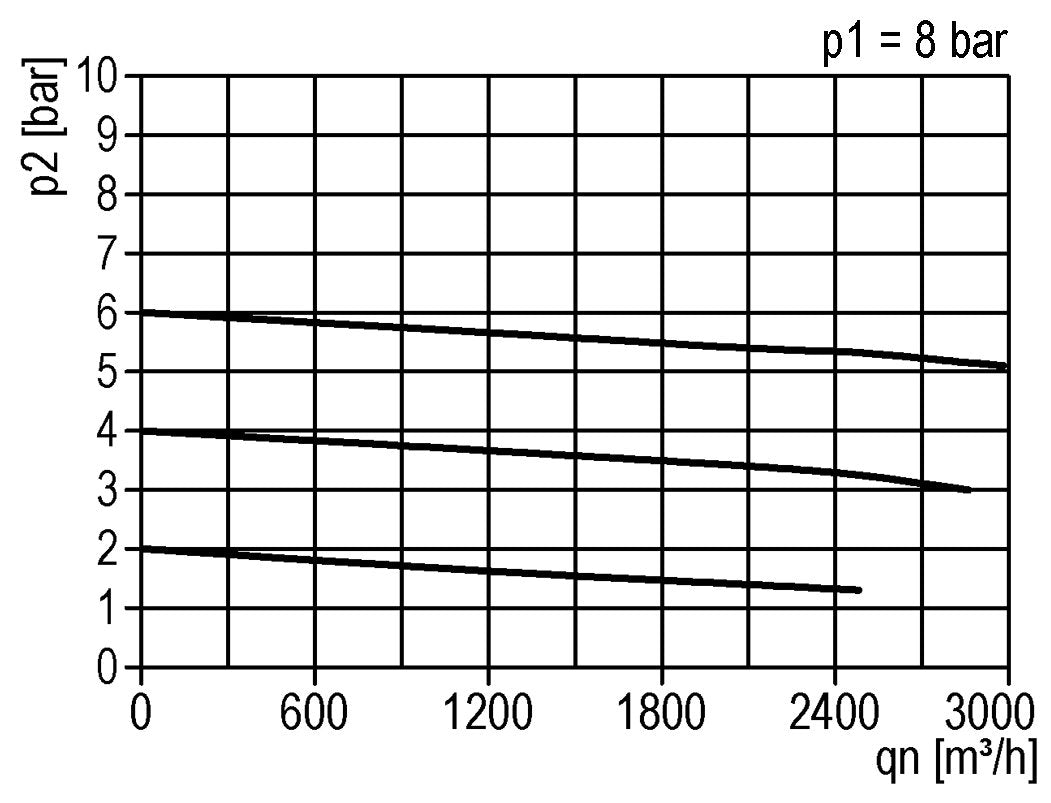

The pressure regulator adjusts the pressure continuously to a stable level, even when the input pressure varies. The level can be adjusted between 0.0 to 16.0 bar (0 to 232 psi). This model has G 1 1/2 inch ports. The maximum flow rate is 50000 l/min. Please note that the maximum flow rate alone doesn't provide enough information to proper sizing. Use the flow curve to determine if the pressure drop (droop) within your expected flow rate range is acceptable. The flow curve shows the flow rate for a set input pressure with multiple output pressures. For each output pressure, it can be seen how the pressure changes with increasing flow rate. It is recommended to use the device in the flat range of the curve, and not on the beginning or the end of the curve. Note that the pressure regulator controls the output pressure, not the flow rate.

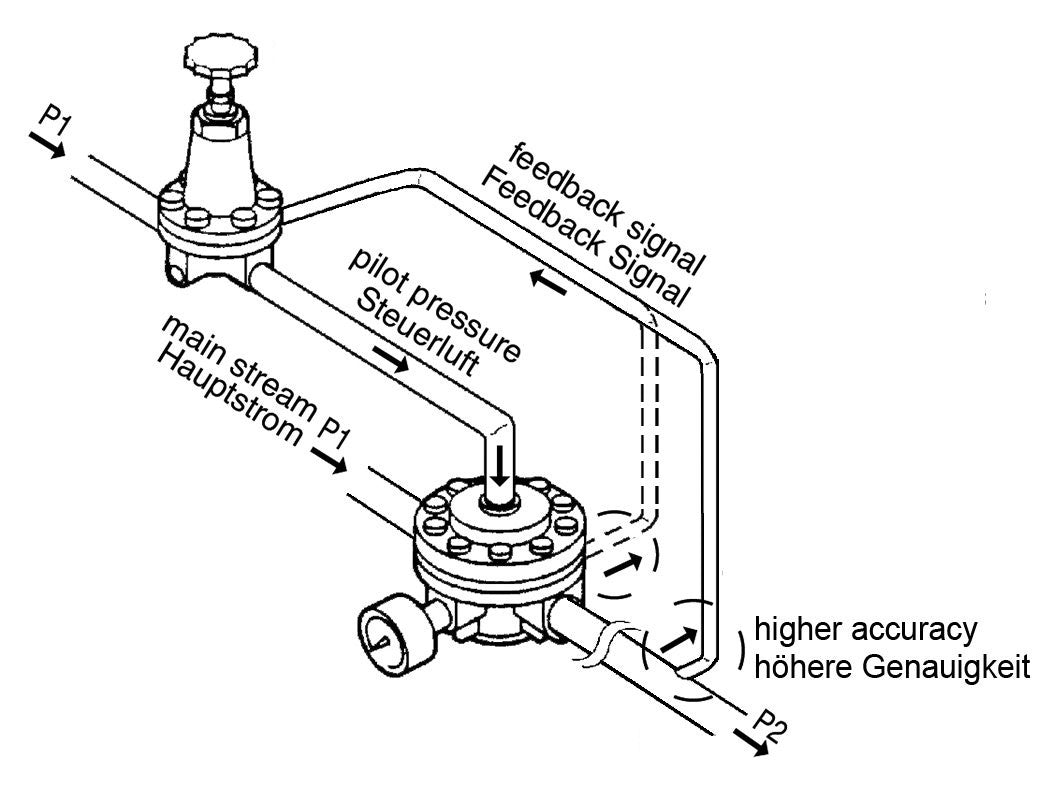

The maximum input pressure is 25.0 bar (363 psi) and the temperature range is between -10 and 80 °C (14 and 176 °F). There is a built-in pressure relief valve on the outlet side when the set pressure is exceeded. The housing material is made out of aluminium. A remote pressure regulator is used for hard-to-reach locations. The setting pressure is controlled by a separate pressure regulator in an accessible location through an air line.
Mounting brackets need to be ordered separately.
