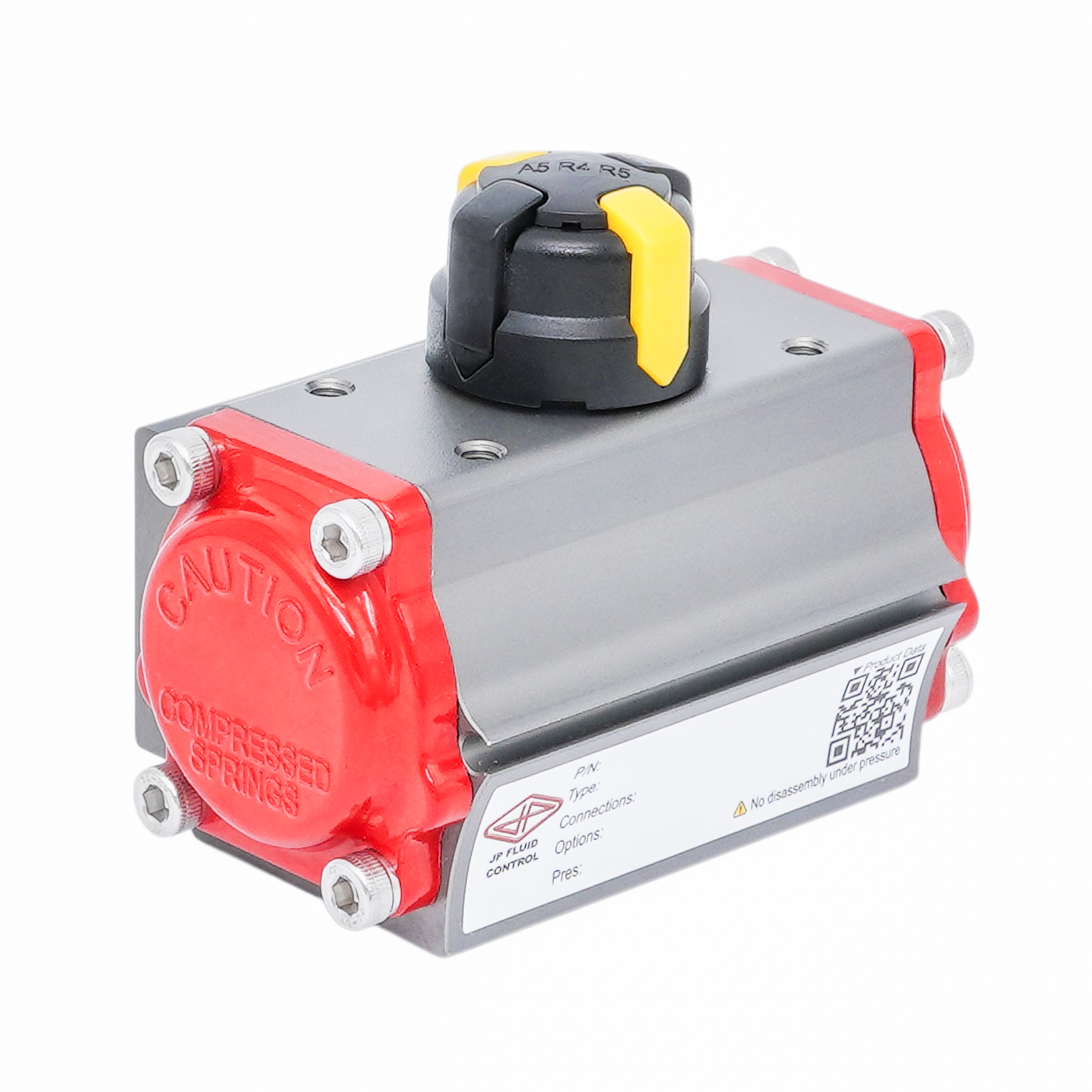

Pneumatic Actuator Rack & Pinion Spring Closing 2.3Nm @ 6bar F03/F05 - PR40A

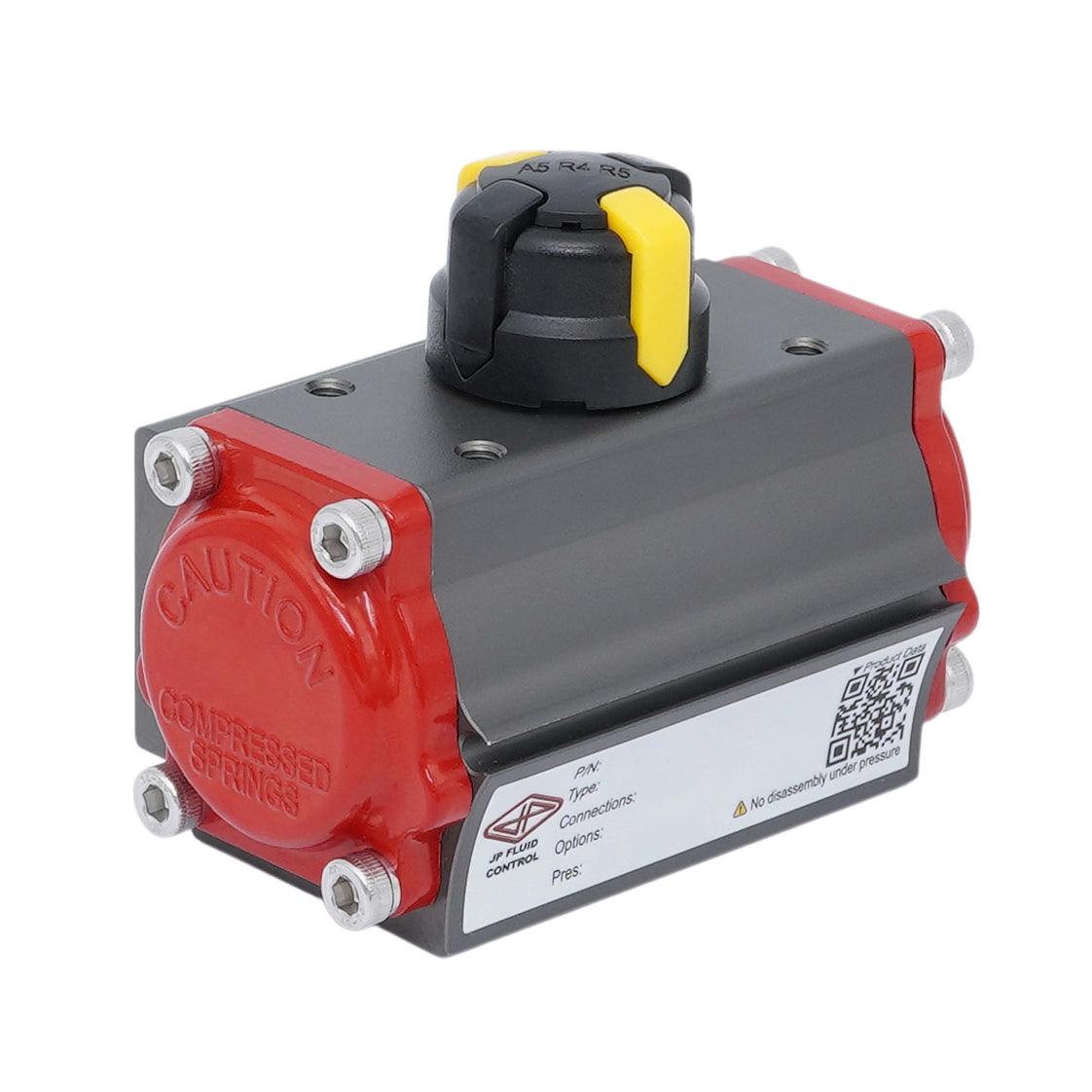

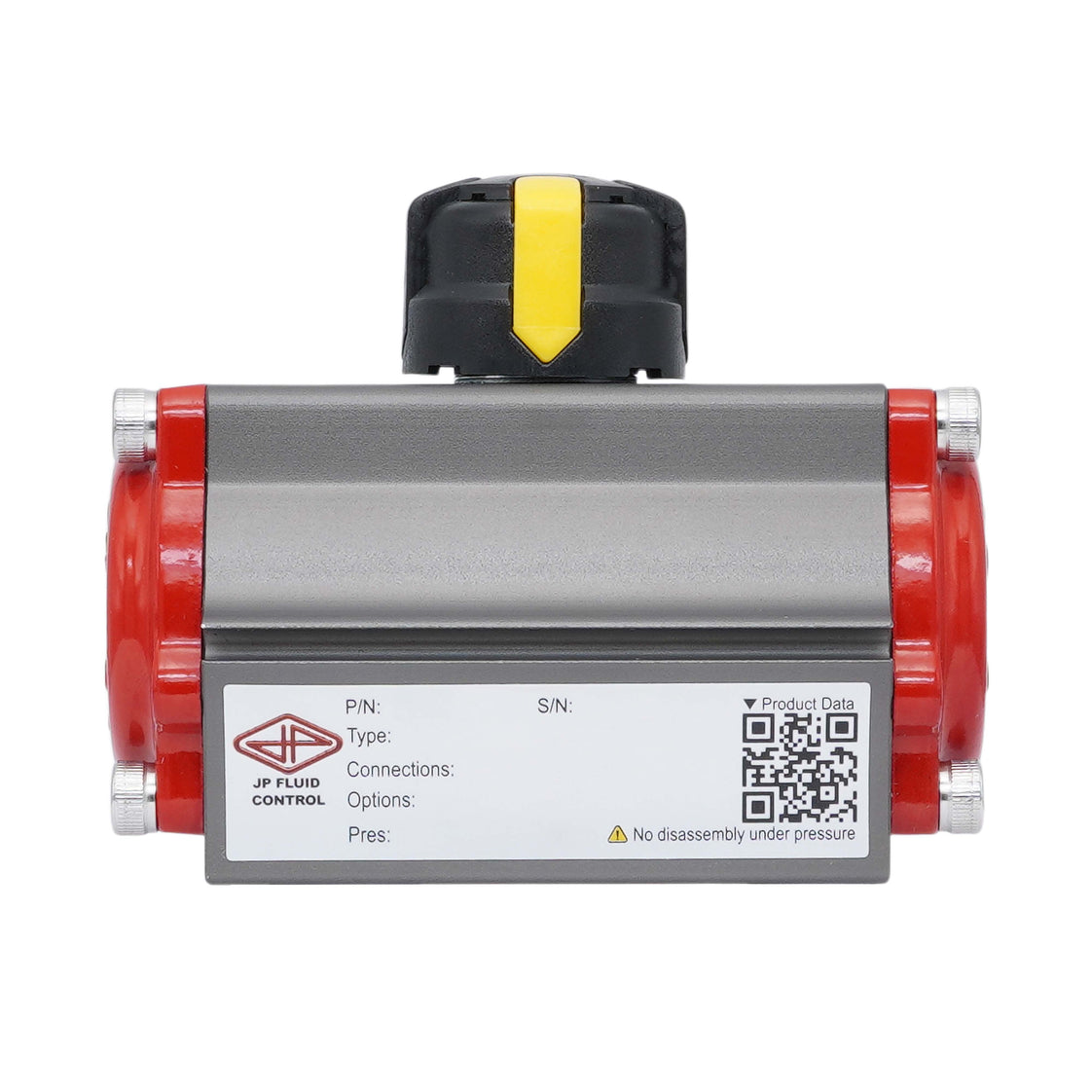

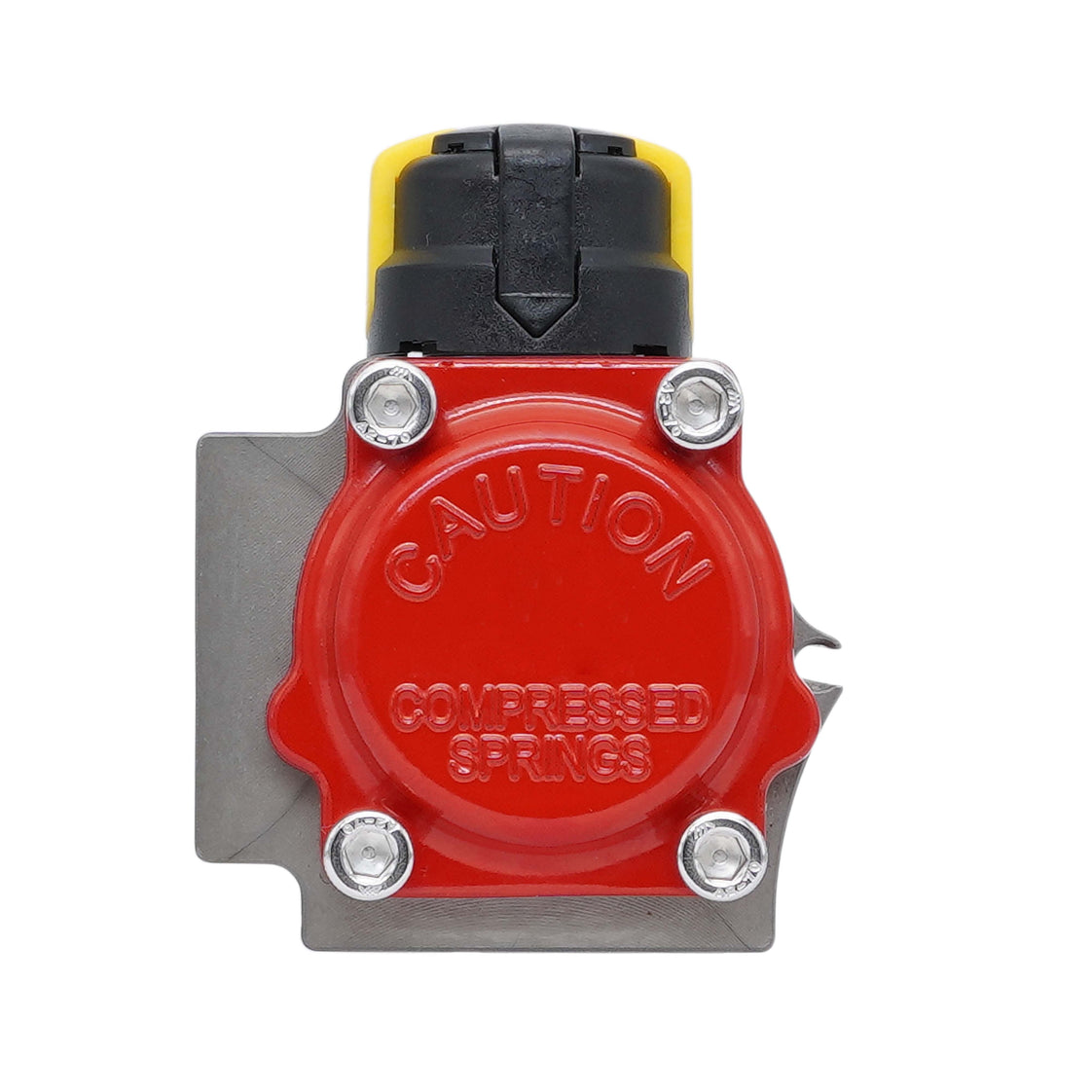

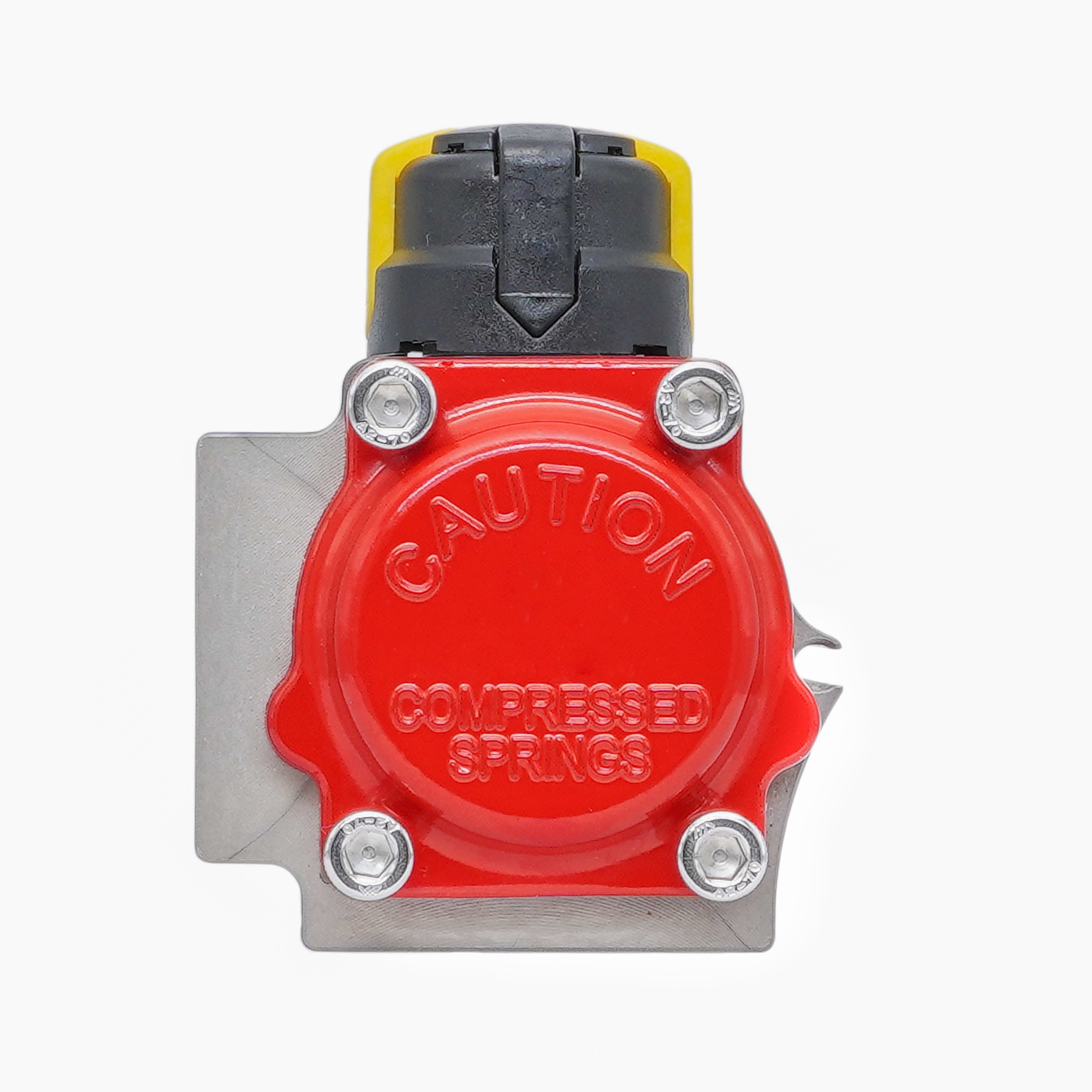

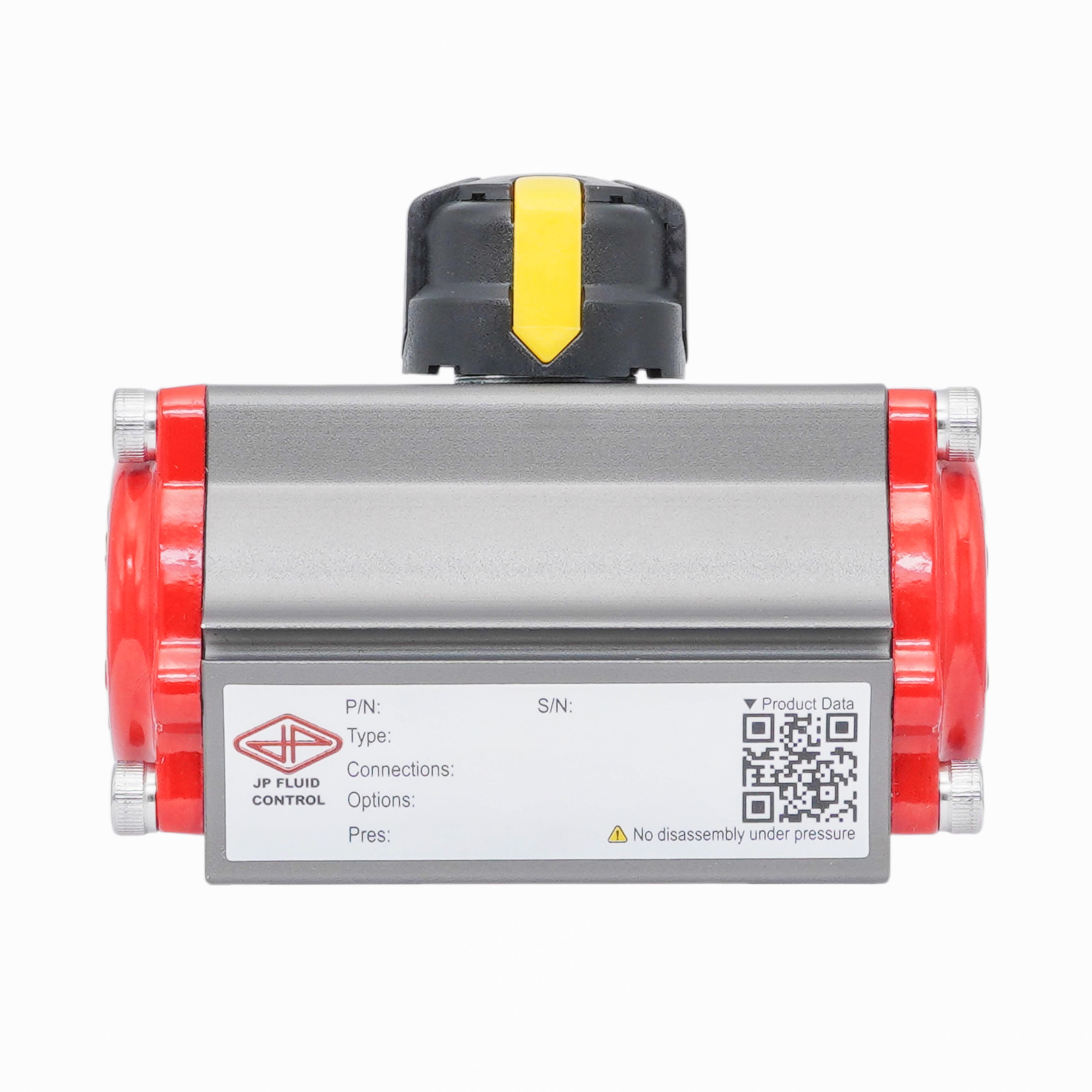

This single-acting pneumatic actuator is ideal for quarter-turn valves like ball or butterfly valves. The rack-and-pinion mechanism delivers a minimum air-opening torque of 2.3 Nm (1.7 lb-ft) at 6 bar (87 psi) and a minimum fail-safe spring-closing torque of 2.3 Nm (1.7 lb-ft), with an input pressure range of 3 - 8 bar (43-116 psi). It fits ISO 5211 F03/F05 valves with a 9 mm star connection. Suitable for -20 to 80 °C (-4 to 176 °F) with an NBR seal. The 35-micron hard anodized aluminum body and polyester coated end covers ensure durability. Features include: mounting holes for Namur 1/4 inch solenoid valves, a 50 x 25 mm interface for VDI/VDE 3845 limit switch boxes, BSPP air ports, stopper bolts to adjust end positions, a sensor mounting groove, and a clear position indicator. Lifespan 500,000+ cycles.
- Regular price
- $165.36 USD
We sell only to registered businesses
Description

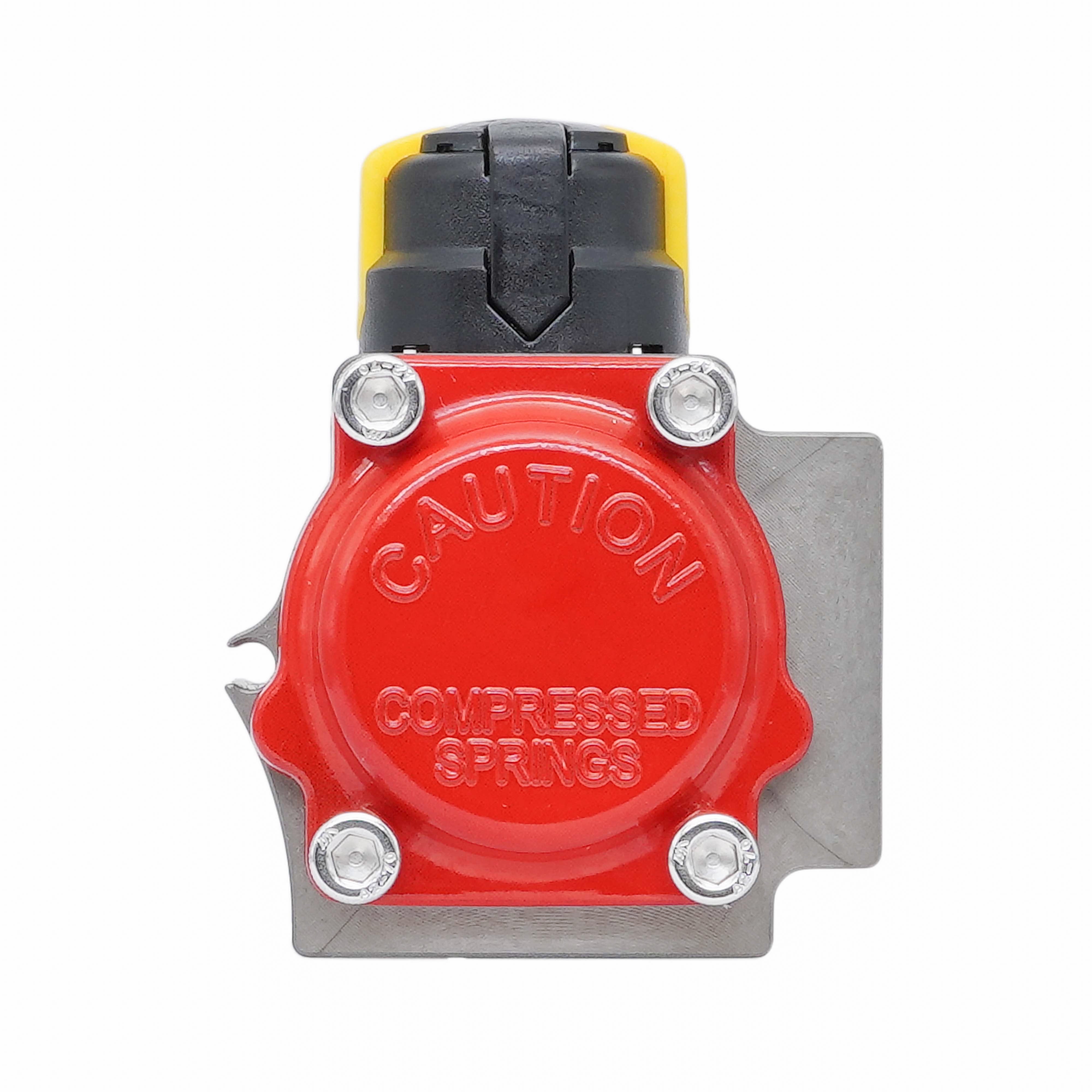

This single-acting pneumatic actuator is ideal for quarter-turn valves like ball or butterfly valves. The rack-and-pinion mechanism delivers a minimum air-opening torque of 2.3 Nm (1.7 lb-ft) at 6 bar (87 psi) and a minimum fail-safe spring-closing torque of 2.3 Nm (1.7 lb-ft), with an input pressure range of 3 - 8 bar (43-116 psi). It fits ISO 5211 F03/F05 valves with a 9 mm star connection. Suitable for -20 to 80 °C (-4 to 176 °F) with an NBR seal. The 35-micron hard anodized aluminum body and polyester coated end covers ensure durability. Features include: mounting holes for Namur 1/4 inch solenoid valves, a 50 x 25 mm interface for VDI/VDE 3845 limit switch boxes, BSPP air ports, stopper bolts to adjust end positions, a sensor mounting groove, and a clear position indicator. Lifespan 500,000+ cycles. Comes with square adapter (F03/F05/F07), bolts, and washers (M5, M6, M8).
Pros:
- Guaranteed minimum torque of 2.3 Nm opening at 6 bar and 2.3 Nm fail-safe closing

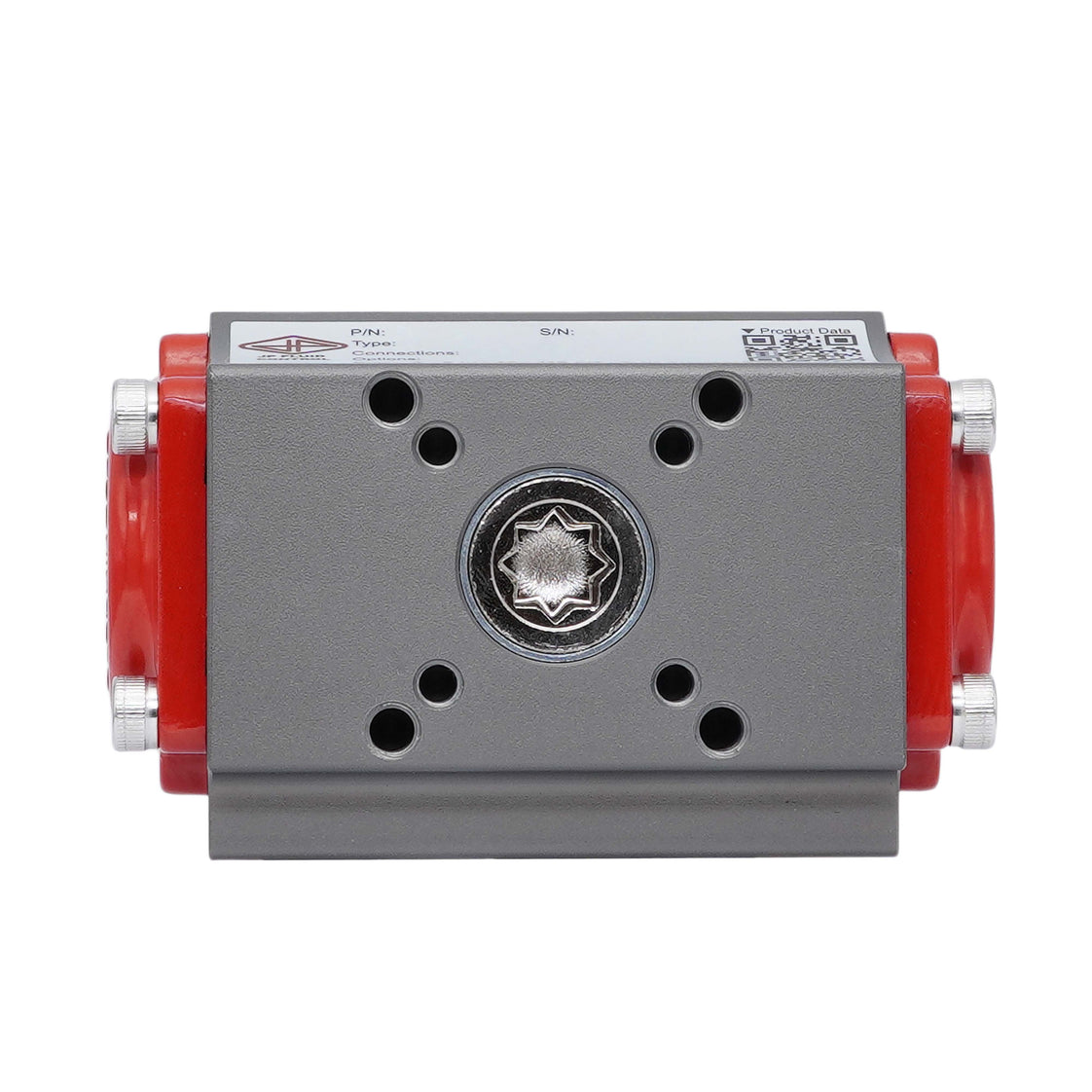

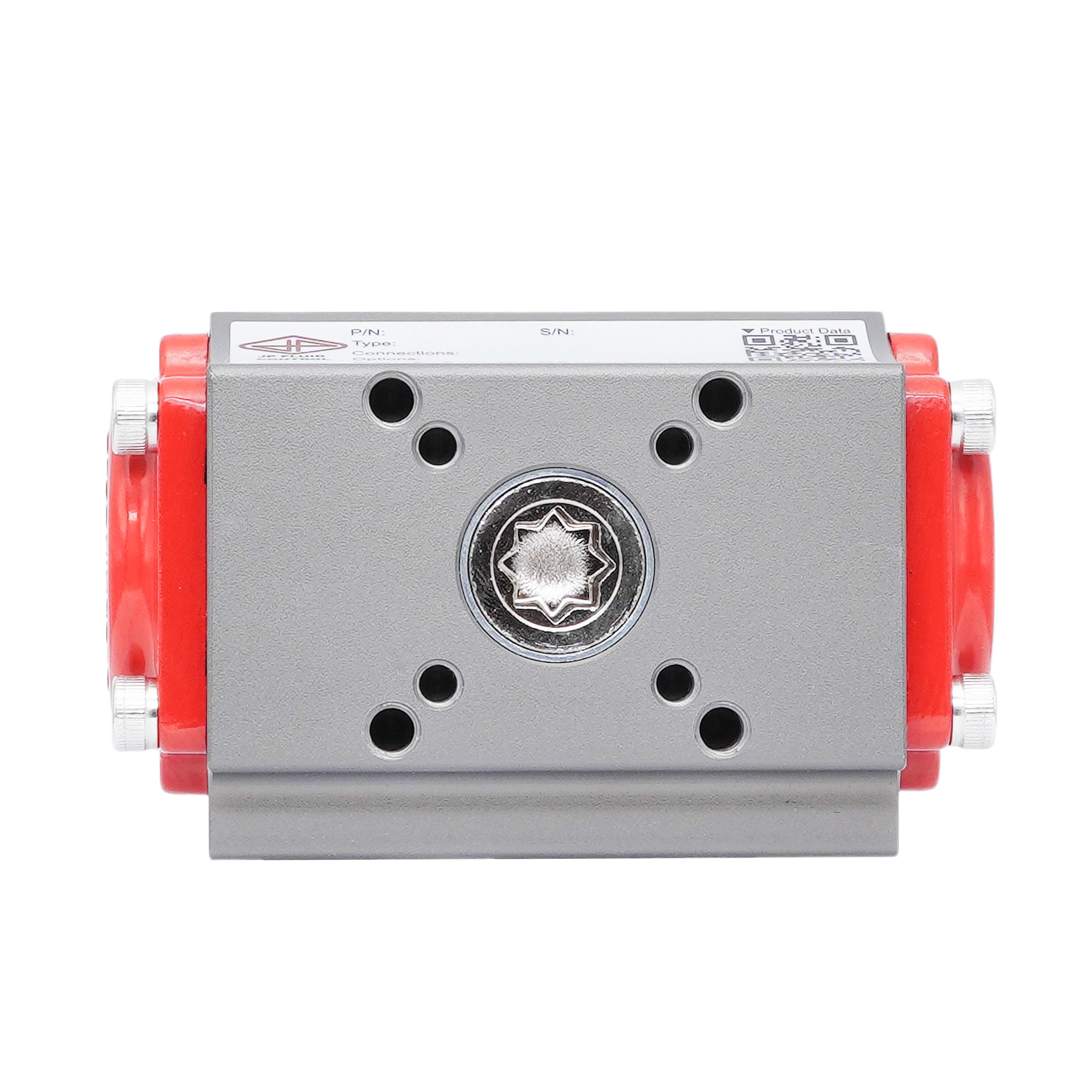

- Fits ISO 5211 F03/F05 with 9 mm star

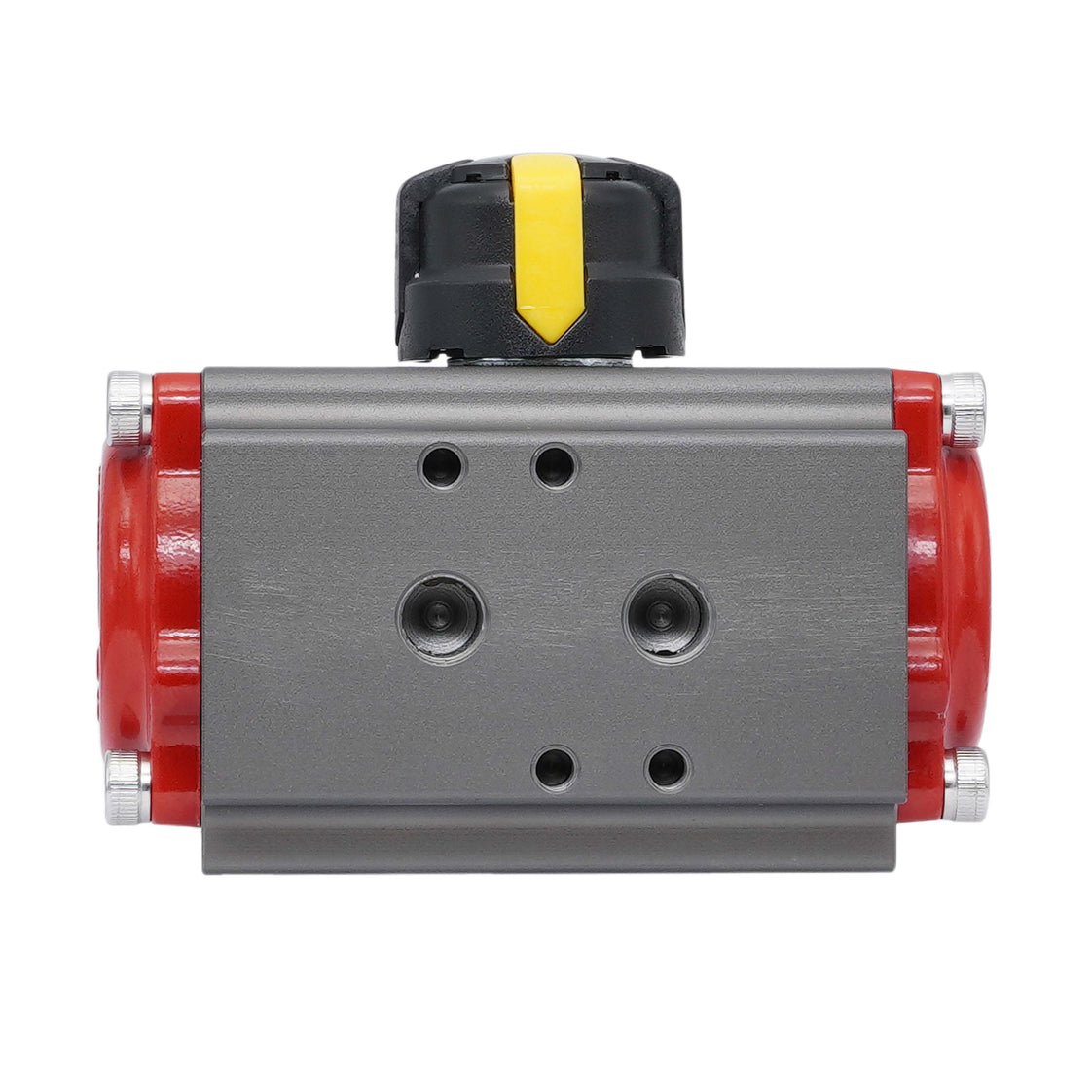

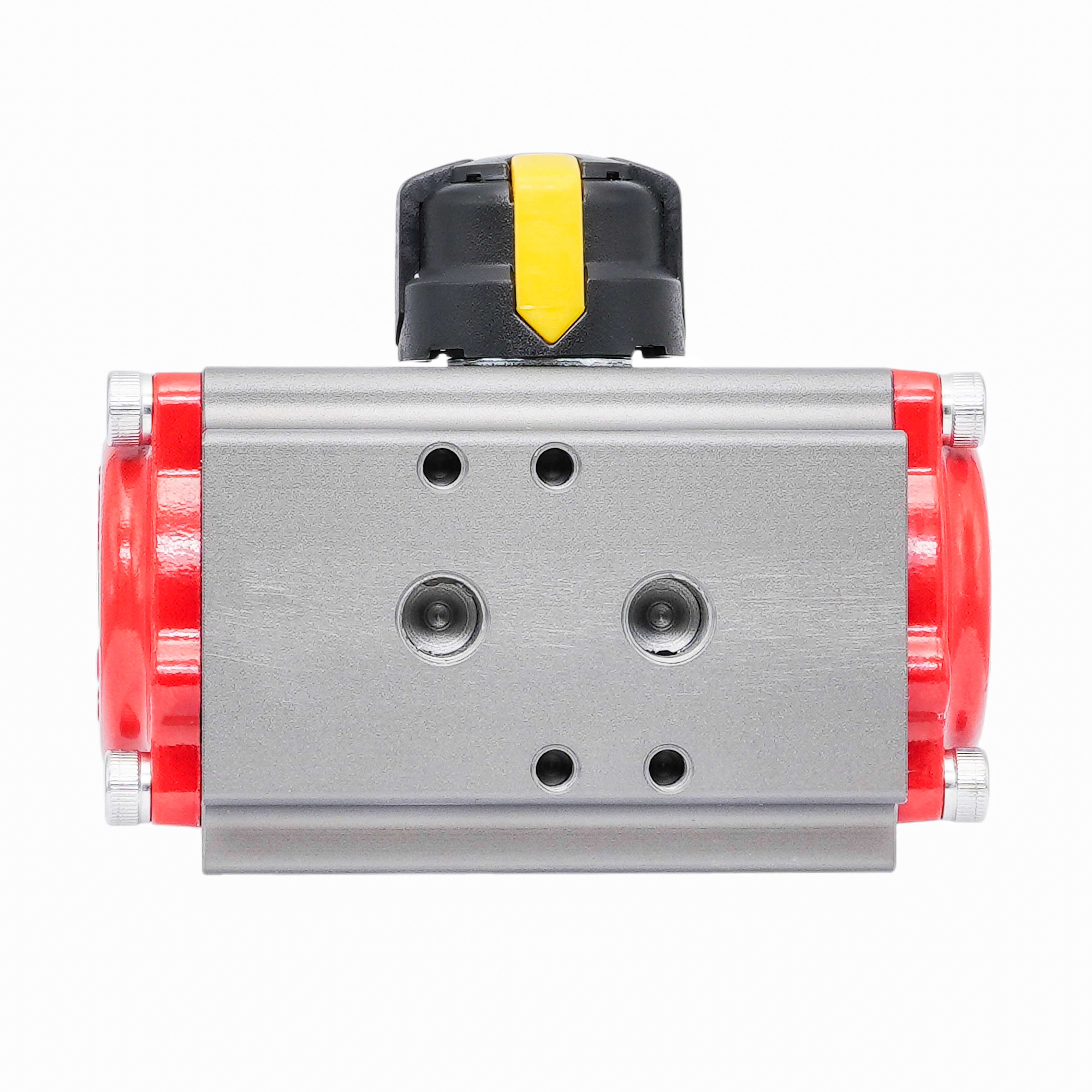

- Direct mounting of 1/4 Namur solenoid valve possible
- Guaranteed 500,000+ cycles
Cons:
- No ATEX or SIL certificate
