Pilz Capacitive proximity Switch - 541060

Notice: This product is discontinued

Discontinued

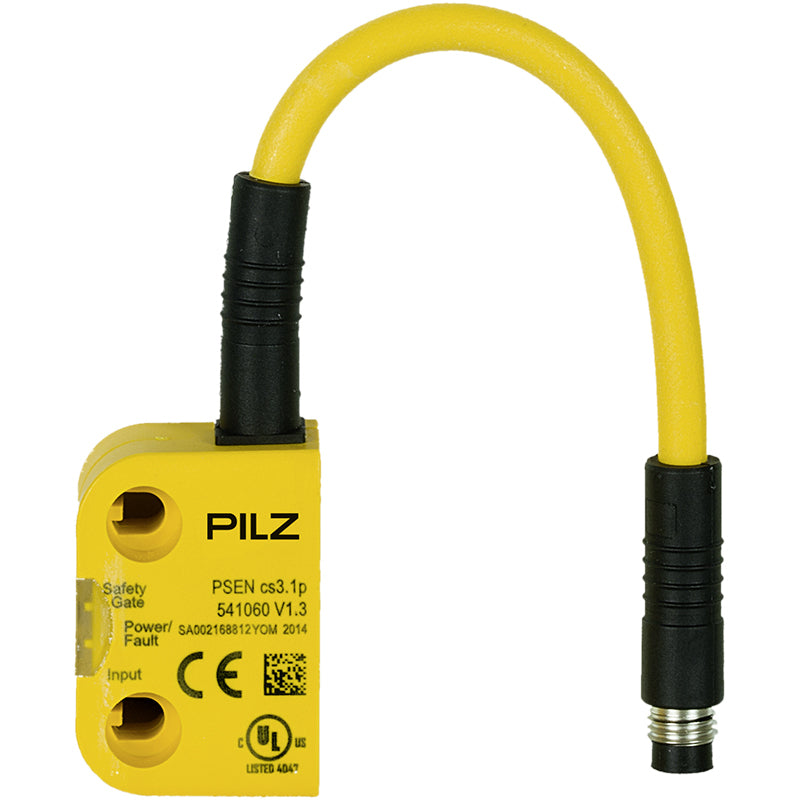

Pilz Capacitive proximity Switch - 541060
Pilz Capacitive proximity Switch - 541060
Image may vary slightly
See specifications for accurate information.
Reference: E2EYW
Brand: Pilz
Mfr. Part: 541060

Pilz capacitive proximity switch.

View all

Notice: This product is discontinued

Description
Specifications
Downloads

Description

Pilz capacitive proximity switch.

Downloads

Specifications

Width sensor (mm)
26.4
Height of sensor (mm)
18
Length of sensor (mm)
37
Mechanical mounting condition for sensor
Not flat
Switching distance (mm)
8
Suitable for safety functions
Yes
Type of switch function
Other
Signal output
Type of switching output.
PNP/NPN
Number of semiconductor outputs with signalling function
1
Number of contact energized outputs with signalling function
0
Number of protected contact energized outputs
0
Type of actuation
Transponder
Type of interface
None
Construction type housing
Special construction
Cascadable
No
Performance level (EN ISO 13849-1)
Level e
Max. current (mA)
The maximum current output of the protected output channel.
0
Voltage-type
DC
Switching frequency (Hz)
3
With monitoring function downstream switching devices
No
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Compression-resistant
No
Explosion safety gas
None
Explosion safety dust
None
