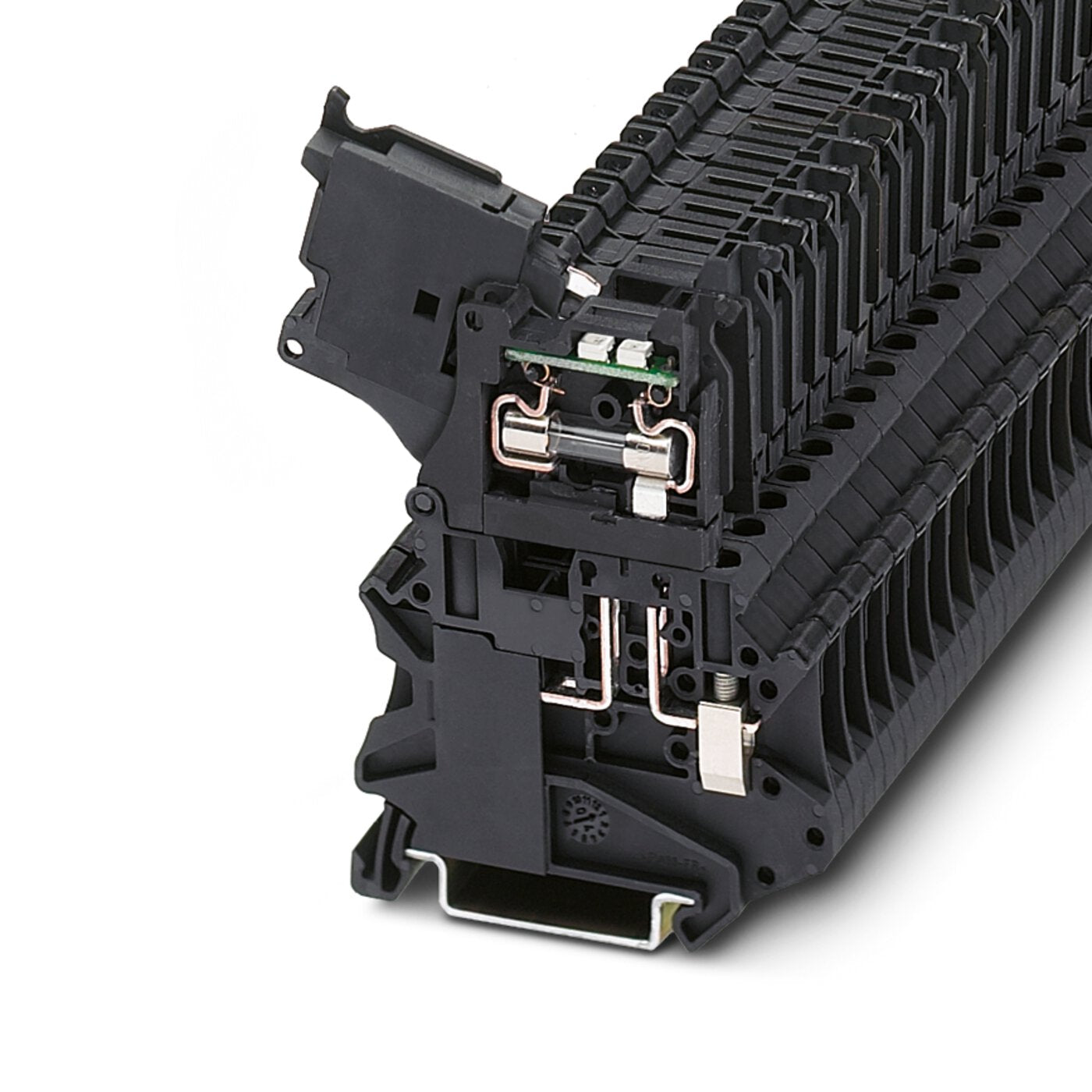

Phoenix Contact UT Fuse Clamp - 3046090

Phoenix Contact UT Fuse Clamp - 3046090
Phoenix Contact UT Fuse Clamp - 3046090
Phoenix Contact UT Fuse Clamp - 3046090
Phoenix Contact UT Fuse Clamp - 3046090
Image may vary slightly
See specifications for accurate information.
Reference: E29NN
Brand: Phoenix Contact
Mfr. Part: 3046090

This clamp is characterized by a compact design and has an LED indicator. With two function shafts, all tasks of potential distribution can be realized time-savingly. Test tap into the fuse handle on both sides. Phoenix Contact UT fuse row clamps are available in several varieties.

View all
$13.78
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

509 reviews at TrustedShops

Description
Specifications
Downloads

Description

This clamp is characterized by a compact design and has an LED indicator. With two function shafts, all tasks of potential distribution can be realized time-savingly. Test tap into the fuse handle on both sides. Phoenix Contact UT fuse row clamps are available in several varieties.

Downloads

Specifications

Type of fuse insert
Other
Type of fuse holder
Swivelling
Type of indication element for defect indication
LED
Supply voltage for defect-indication (V)
12 V to 30 V
Voltage type for defect indication
AC/DC
Connectable conductor cross section fine-strand without cable end sleeve (mm²)
0.14 mm² to 6 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²)
4 mm² to 4 mm²
Connectable conductor cross section solid-core (mm²)
0.14 mm² to 0.14 mm²
Connectable conductor cross section multi-wired (mm²)
0.14 mm² to 0.14 mm²
Rated current In (A)
6.3
Rated voltage (V)
24
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of levels
1
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Other
Operating temperature (°C)
105 °C to 105 °C
Inflammability class of insulation material according to with UL94
V0
Width (mm)
The product's width without packaging.
6.15
Height (mm)
The product's height without packaging.
57.8
Depth (mm)
The product's depth without packaging.
74.98
Closing plate required
No
Color
Black
