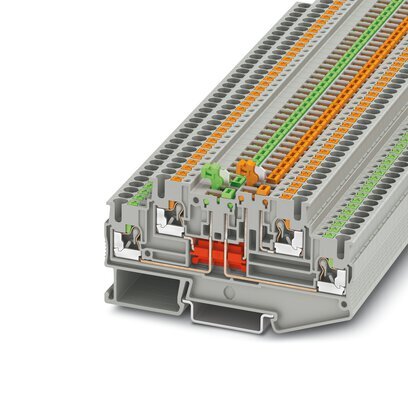

Phoenix Contact PTT 2.5-2MT Knife Disconnect Terminal Block - 3210258
Push-in knife disconnect terminal block designed for DIN rail mounting, featuring dual-level connection with 2.5 mm² rated cross-section. Operates at 400V nominal voltage and 16A current rating. Accommodates wire ranges from 0.14 mm² to 4 mm² (26-12 AWG). Compatible with NS 35/7.5 and NS 35/15 rail types. Features tool-free conductor insertion and lever-activated disconnect mechanism.
- Regular price
- $9.28 USD
We sell only to registered businesses
Description
Push-in knife disconnect terminal block designed for DIN rail mounting, featuring dual-level connection with 2.5 mm² rated cross-section. Operates at 400V nominal voltage and 16A current rating. Accommodates wire ranges from 0.14 mm² to 4 mm² (26-12 AWG). Compatible with NS 35/7.5 and NS 35/15 rail types. Features tool-free conductor insertion and lever-activated disconnect mechanism.
Pros:
- Tool-free push-in wire connection system
- Dual-level design maximizes space efficiency
- Clear visual indication of disconnect status
- Wide operating temperature range -60°C to +125°C
