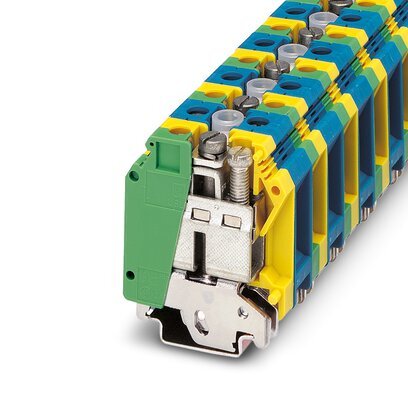

Phoenix Contact PE/N DIN Rail Terminal Block 35mm² - 3008054
Notice: This product will be discontinued in the future
Combined PE/N terminal block featuring a green-yellow ground terminal and blue terminal block with screw bridge connection. Designed for 0.75-35 mm² wire cross-sections and compatible with NS 35/7.5, NS 35/15, and NS 32 DIN rails. Rated for 630V nominal voltage and 125A current capacity. Requires end plate for installations exceeding 630V when aligned with similar terminals.
Notice: This product will be discontinued in the future
Description
Combined PE/N terminal block featuring a green-yellow ground terminal and blue terminal block with screw bridge connection. Designed for 0.75-35 mm² wire cross-sections and compatible with NS 35/7.5, NS 35/15, and NS 32 DIN rails. Rated for 630V nominal voltage and 125A current capacity. Requires end plate for installations exceeding 630V when aligned with similar terminals.
Pros:
- High current capacity of 125A
- Wide wire cross-section range: 0.75-35 mm²
- Compatible with multiple DIN rail types
- Integrated screw bridge connection system
