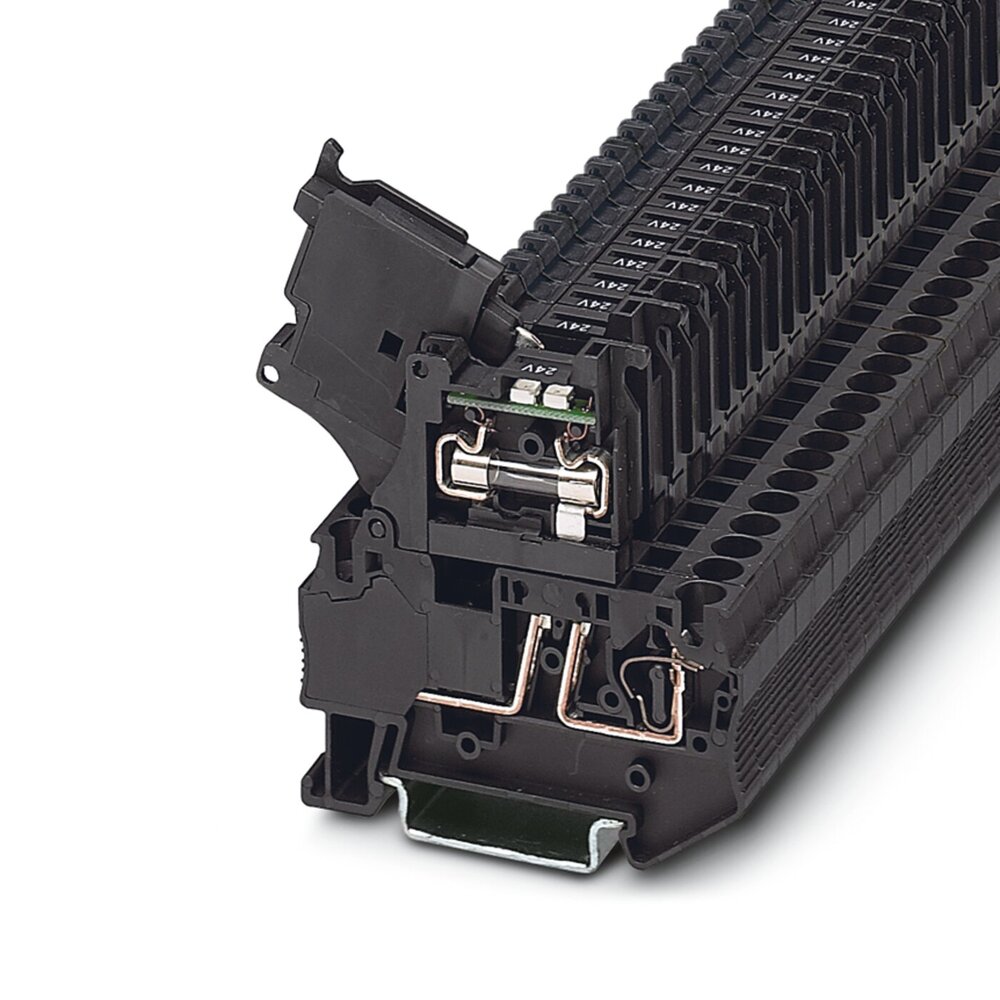

Phoenix Contact Fuse Clamp - 3036547

Phoenix Contact Fuse Clamp - 3036547
Phoenix Contact Fuse Clamp - 3036547
Phoenix Contact Fuse Clamp - 3036547
Phoenix Contact Fuse Clamp - 3036547
Image may vary slightly
See specifications for accurate information.
Reference: E29MQ
Brand: Phoenix Contact
Mfr. Part: 3036547

The front terminal offers user-friendly operation. Phoenix Contact spring-loaded terminals have generous connection space. In this way, conductors with and without ferrules equipped with insulation collars with nominal conductor cross sections can also be connected. In addition, this clamp is characterized by a compact design. With two function shafts, all tasks of potential distribution can be realized time-savingly. In addition, the skip-through connection allows, for example, two separate potentials to be fed side by side.

View all
$14.92
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

The front terminal offers user-friendly operation. Phoenix Contact spring-loaded terminals have generous connection space. In this way, conductors with and without ferrules equipped with insulation collars with nominal conductor cross sections can also be connected. In addition, this clamp is characterized by a compact design. With two function shafts, all tasks of potential distribution can be realized time-savingly. In addition, the skip-through connection allows, for example, two separate potentials to be fed side by side.

Downloads

Specifications

Type of fuse insert
Other
Type of fuse holder
Swivelling
Supply voltage for defect-indication (V)
12 V to 30 V
Connectable conductor cross section fine-strand without cable end sleeve (mm²)
0.08 mm² to 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²)
4 mm² to 4 mm²
Connectable conductor cross section solid-core (mm²)
0.08 mm² to 0.08 mm²
Connectable conductor cross section multi-wired (mm²)
0.08 mm² to 4 mm²
Rated current In (A)
6.3
Rated voltage (V)
24
Type of electrical connection 1
Other
Type of electrical connection 2
Spring clamp connection
Number of levels
1
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Other
Operating temperature (°C)
105 °C to 105 °C
Inflammability class of insulation material according to with UL94
V0
Width (mm)
The product's width without packaging.
6.15
Height (mm)
The product's height without packaging.
61.53
Depth (mm)
The product's depth without packaging.
63.38
Closing plate required
No
Color
Black
