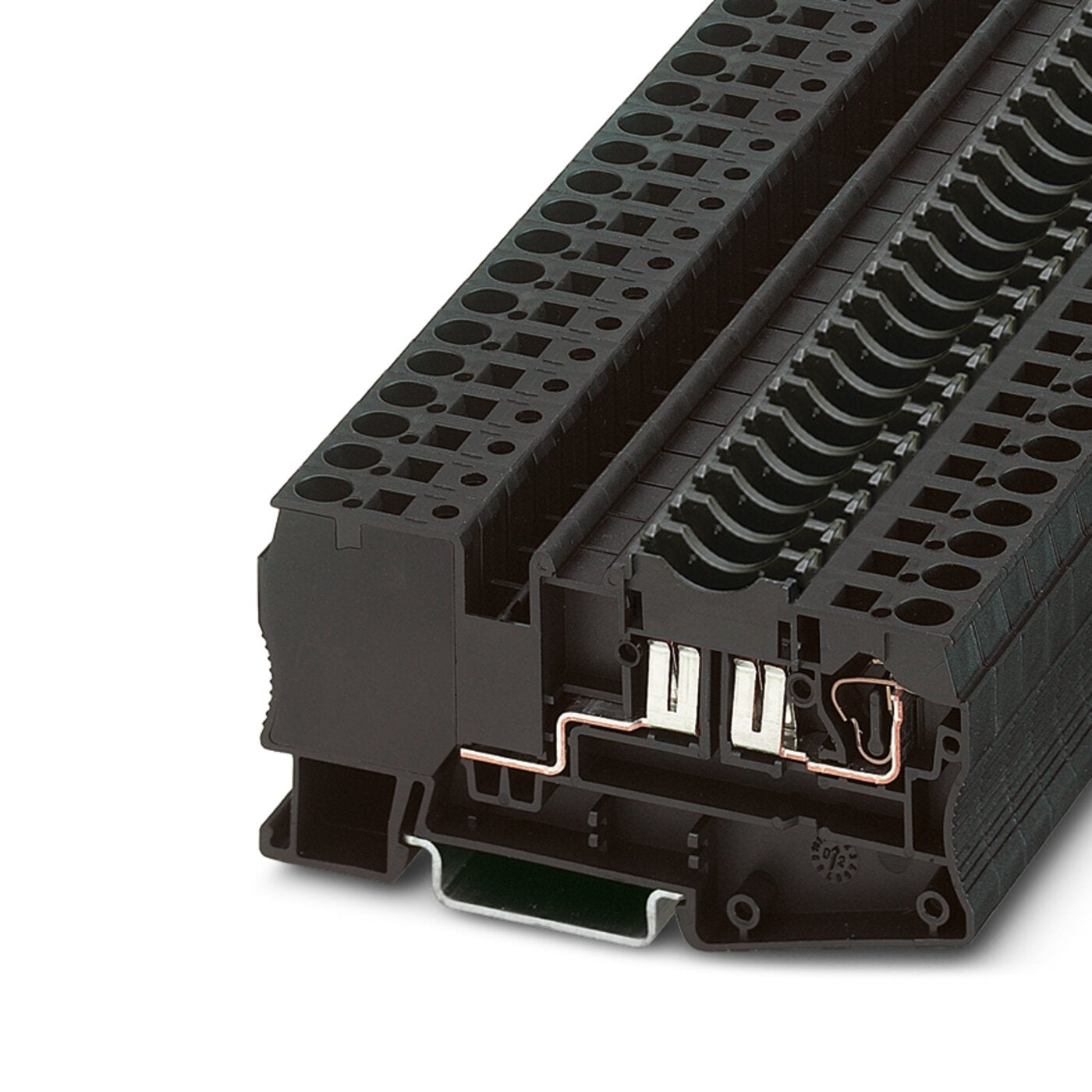

Phoenix Contact Fuse Clamp - 3036372

Phoenix Contact Fuse Clamp - 3036372
Phoenix Contact Fuse Clamp - 3036372
Phoenix Contact Fuse Clamp - 3036372
Phoenix Contact Fuse Clamp - 3036372
Image may vary slightly
See specifications for accurate information.
Reference: E29MM
Brand: Phoenix Contact
Mfr. Part: 3036372

Fuse modular terminal block, fuse type = Flat, fuse type = C, nom. Voltage = 400 V, nominal current = 30 A, connection method = Spring-cage connection, 1 level, Rated cross section = 4 mm2, cross section =   0.08 mm2- 6 mm2, mounting type = NS 35/7,5, NS 35/15, color = black.

View all
$9.00
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

509 reviews at TrustedShops

Description
Specifications
Downloads

Description

Fuse modular terminal block, fuse type = Flat, fuse type = C, nom. Voltage = 400 V, nominal current = 30 A, connection method = Spring-cage connection, 1 level, Rated cross section = 4 mm2, cross section =   0.08 mm2- 6 mm2, mounting type = NS 35/7,5, NS 35/15, color = black.

Downloads

Specifications

Type of fuse insert
Blade fuse
Type of fuse holder
Pluggable
Connectable conductor cross section fine-strand without cable end sleeve (mm²)
0.08 mm² to 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²)
4 mm² to 4 mm²
Connectable conductor cross section solid-core (mm²)
0.08 mm² to 0.08 mm²
Connectable conductor cross section multi-wired (mm²)
0.08 mm² to 4 mm²
Rated current In (A)
30
Type of electrical connection 1
Other
Type of electrical connection 2
Spring clamp connection
Number of levels
1
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Other
Operating temperature (°C)
105 °C to 105 °C
Inflammability class of insulation material according to with UL94
V0
Width (mm)
The product's width without packaging.
8.15
Height (mm)
The product's height without packaging.
86.5
Depth (mm)
The product's depth without packaging.
44.05
Closing plate required
No
Color
Black
