Image may vary slightly
See specifications for accurate information.
Reference: E3A9B
Brand: Philips
Mfr. Part: 52404000

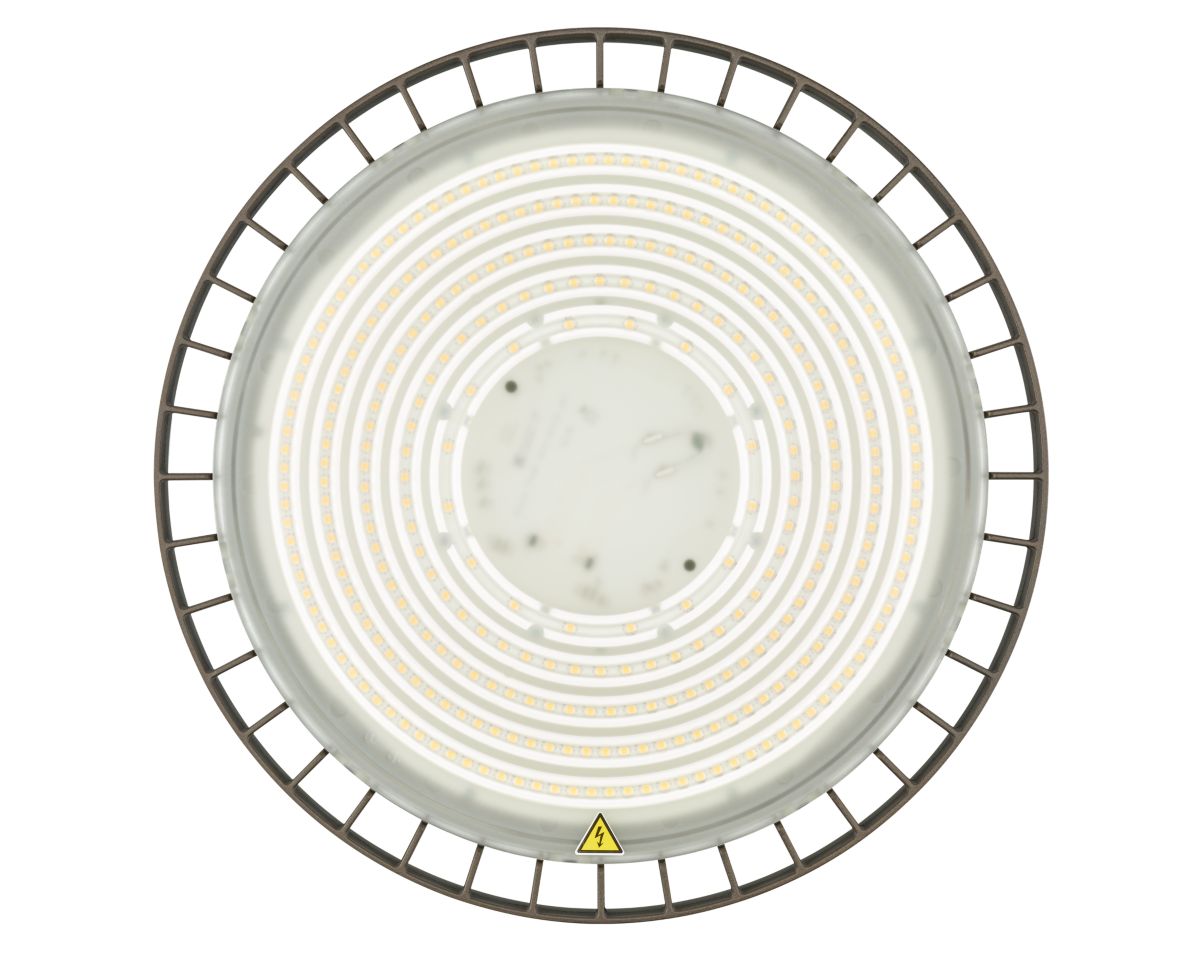

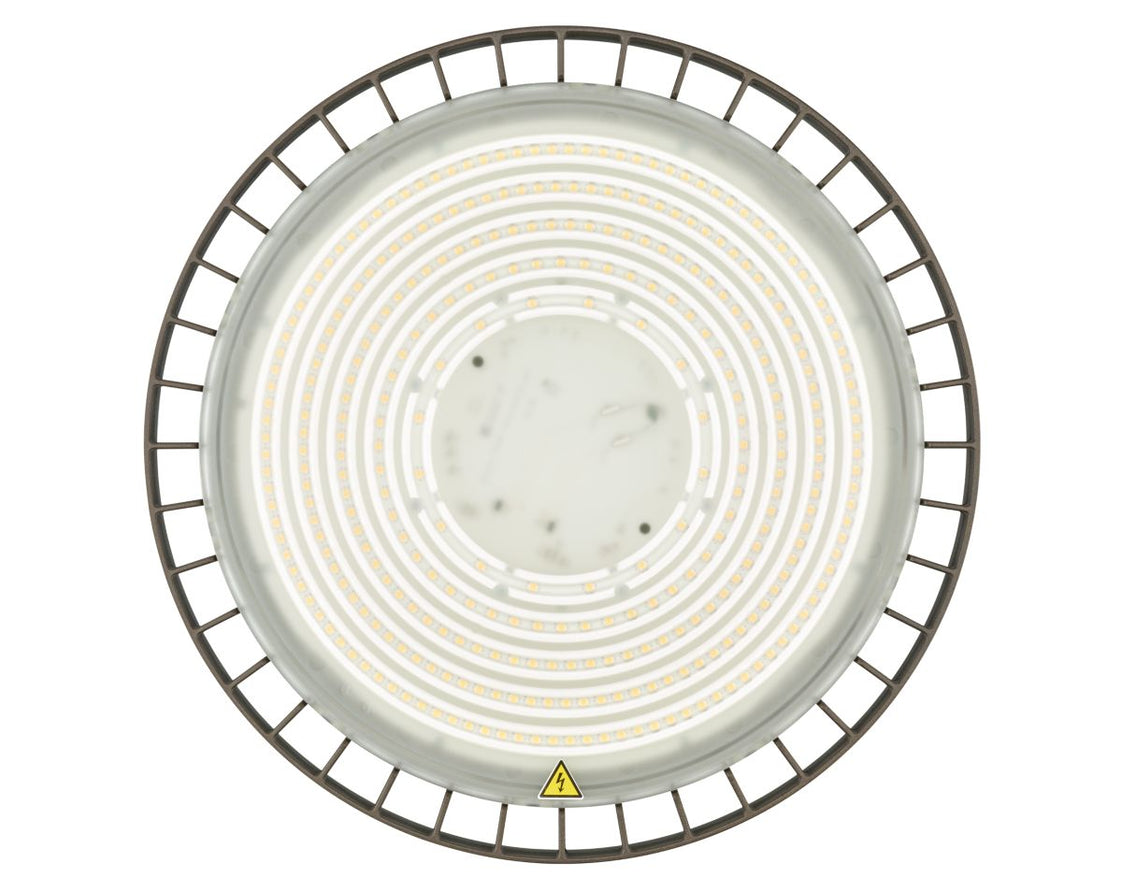

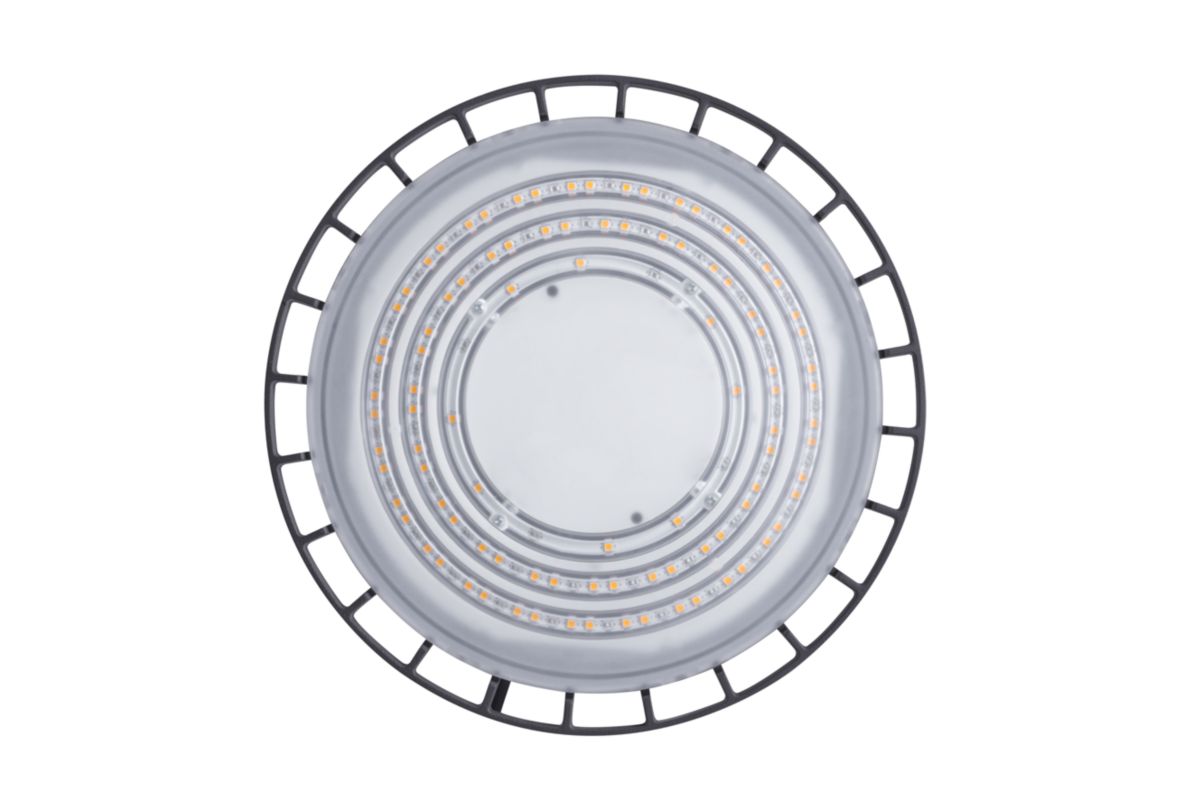

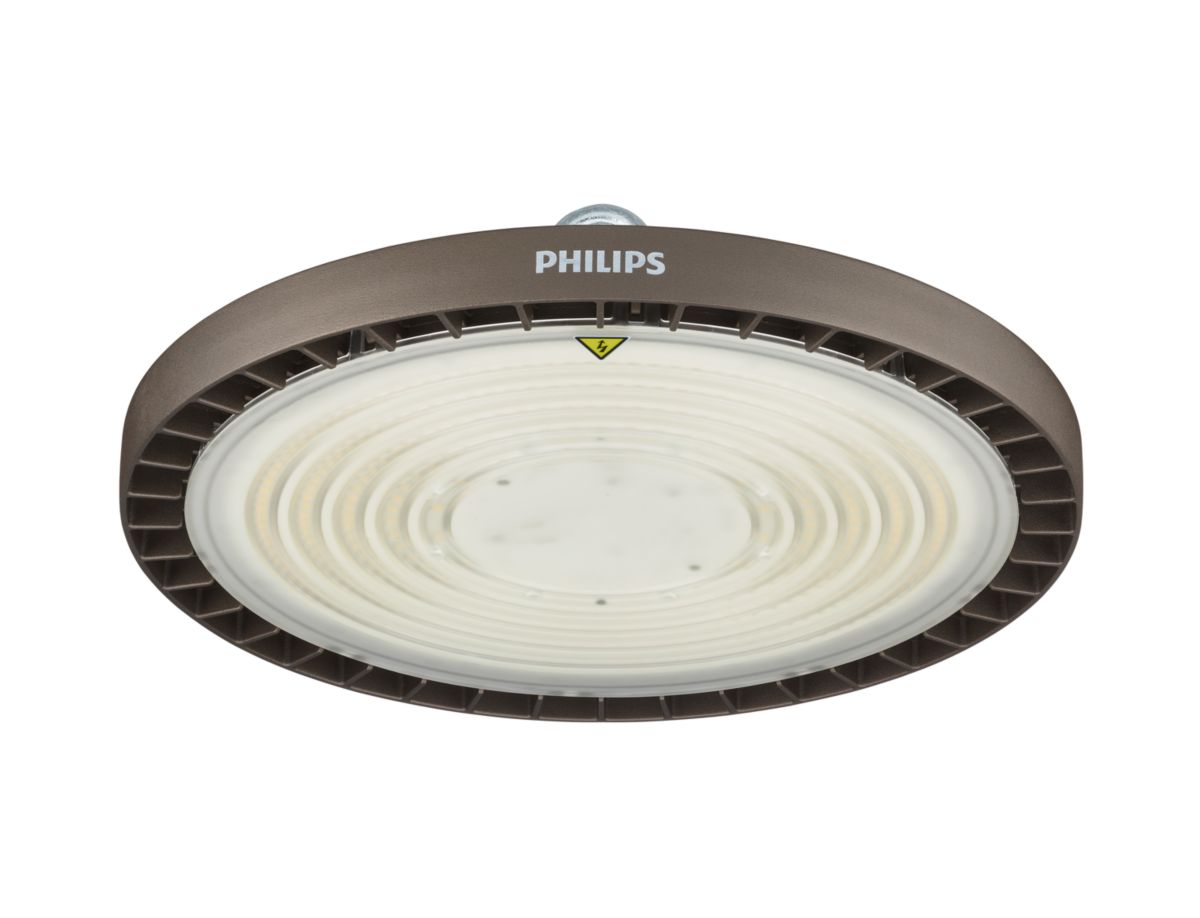

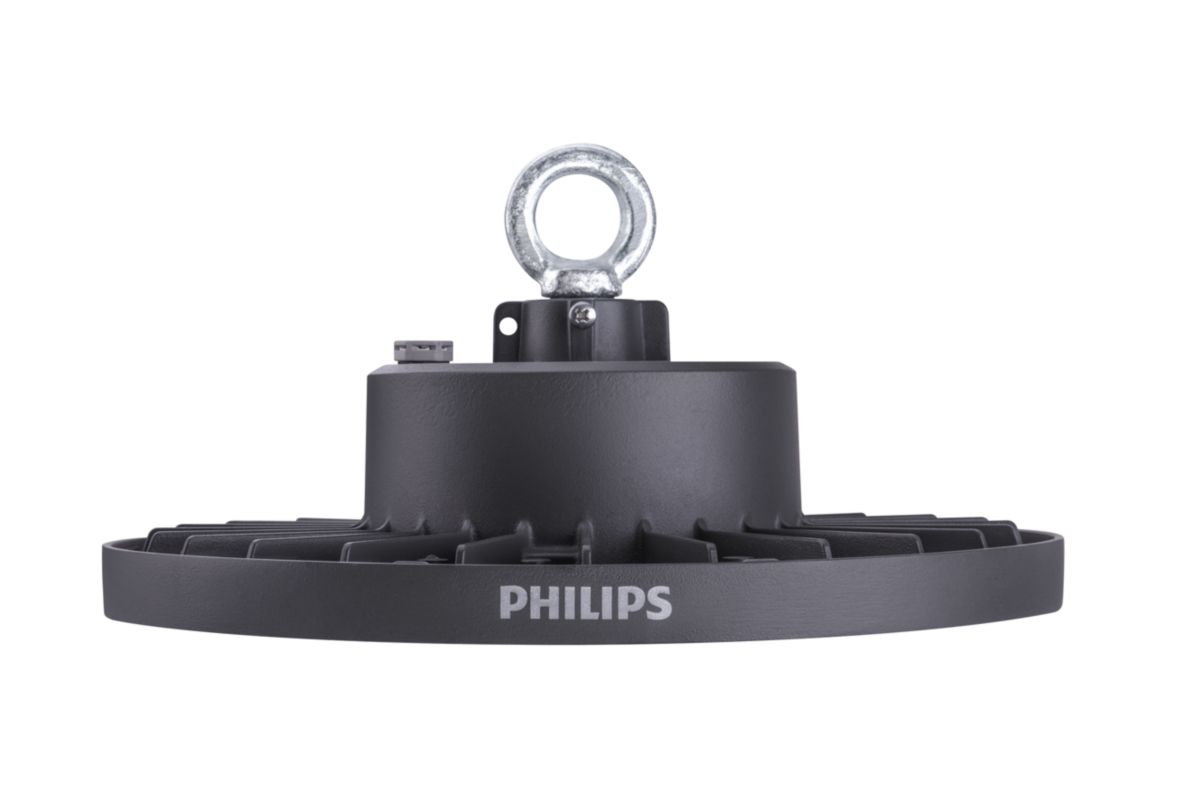

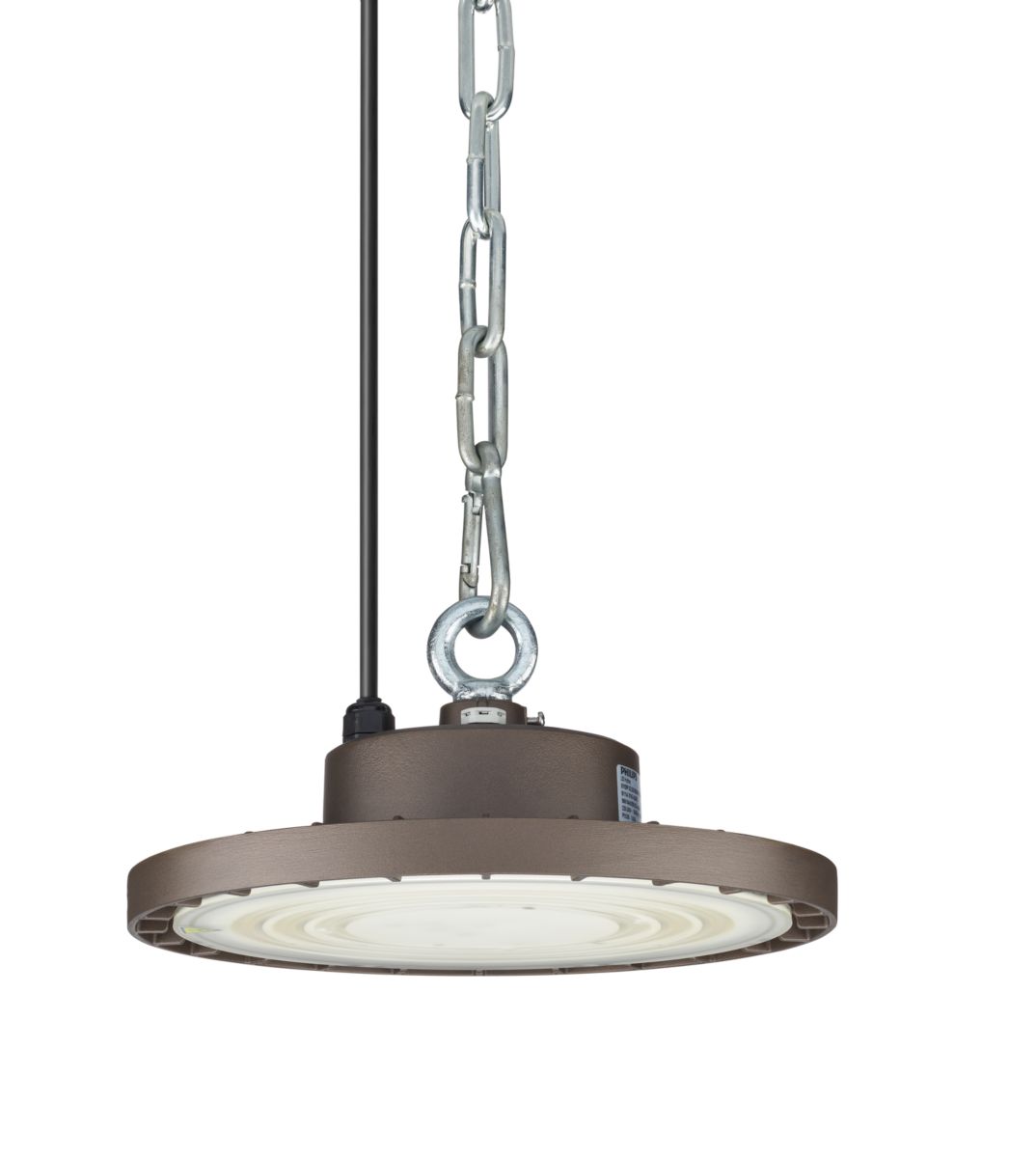

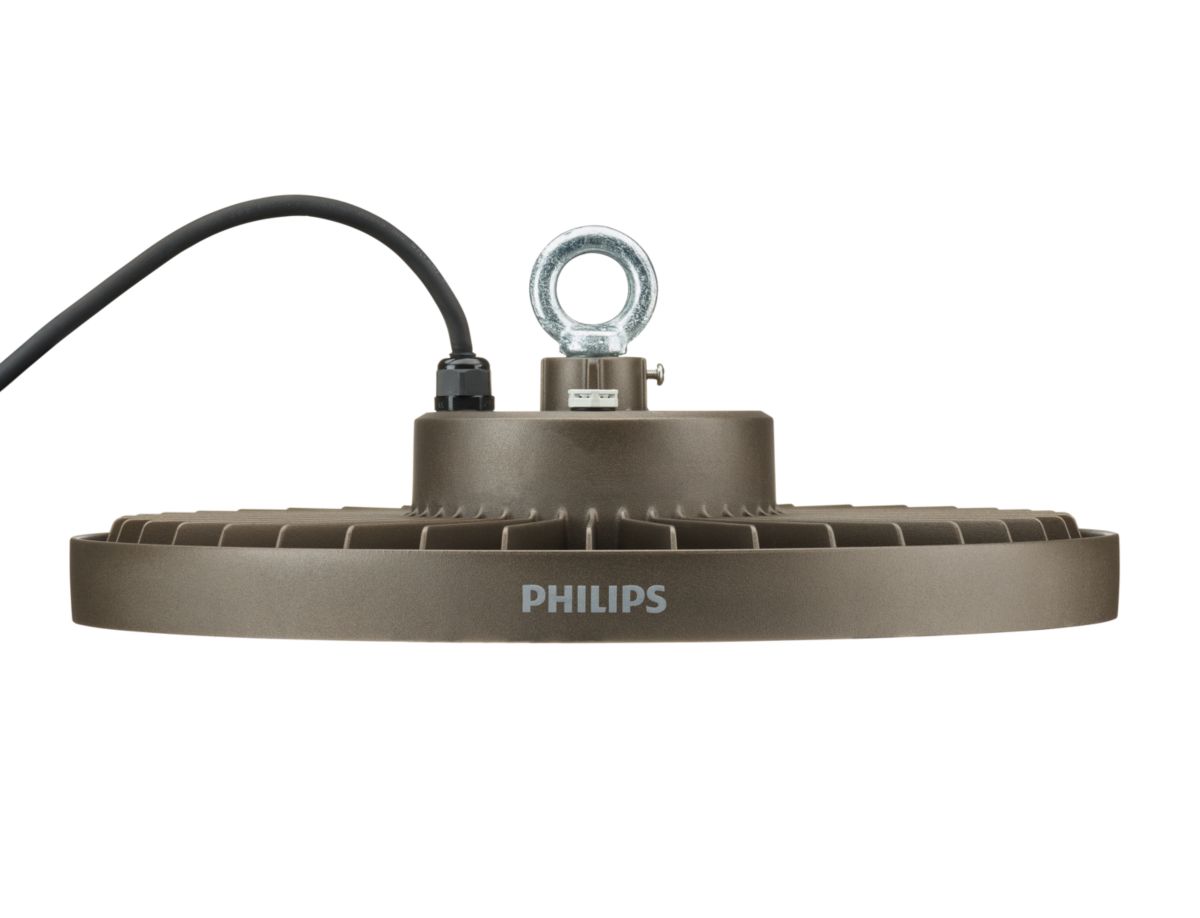

Philips Ledinaire High-bay fixture halogen spotlight.

View all
Note: product cannot be returned
$411.88
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 10 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: Free
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

Philips Ledinaire High-bay fixture halogen spotlight.

Downloads

Installation and Maintenance (EN)
pdf
Download
Installation and Maintenance (EN)
pdf
Download
Installation and Maintenance (EN)
pdf
Download

Specifications

Mounting method
Pendant
Lamp type
LED not exchangeable
With light source
Yes
Suitable for number of lamps
1
Suitable for auxiliary lamp
No
Lamp holder
Other
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Other
Colour housing
Grey
Voltage-type
AC
Nominal voltage (V)
220 V to 240 V
Nominal current (mA)
700 mA to 860 mA
LED nominal current at constant current (mA)
54.1 mA to 59.9 mA
Type of control gear
LED operating device current-controlled
Exchangeable control gear
No
With control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
Yes
Light distributor
Refractor lens
Light sharing
Symmetric
Reflector
None
Material reflector
Other
Beam angle
Extreme wide beam >80°
Colour consistency (McAdam ellipse)
SDCM5
Rated life time L70/B50 at 25 °C (h)
35000
Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
70
Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
7.5
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP65
Impact strength
IK06
Ball-proof
No
Protection class
None
Luminaire with limited surface temperature, sign "D“
No
Rated ambient temperature according to IEC62722-2-1 (°C)
-20 °C to 45 °C
Emergency power supply integrated
No
Suitable for emergency lighting
No
Filament test according to IEC 60695-2-11
650 °C - 30 s
Max. system power (W)
168
Rated luminous flux according to IEC 62722-2-1 (lm)
20500
Luminaire efficacy (lm/W)
122
Colour of light
White
Colour temperature (K)
4000 K to 4000 K
Colour rendering index CRI
80-89
Total harmonic distortion
20
Power factor
0.9
Constant light output (CLO)
No
Colour temperature adjustable
No
Beam angle adjustable
No
Luminous flux adjustable
No
Height/depth (mm)
0

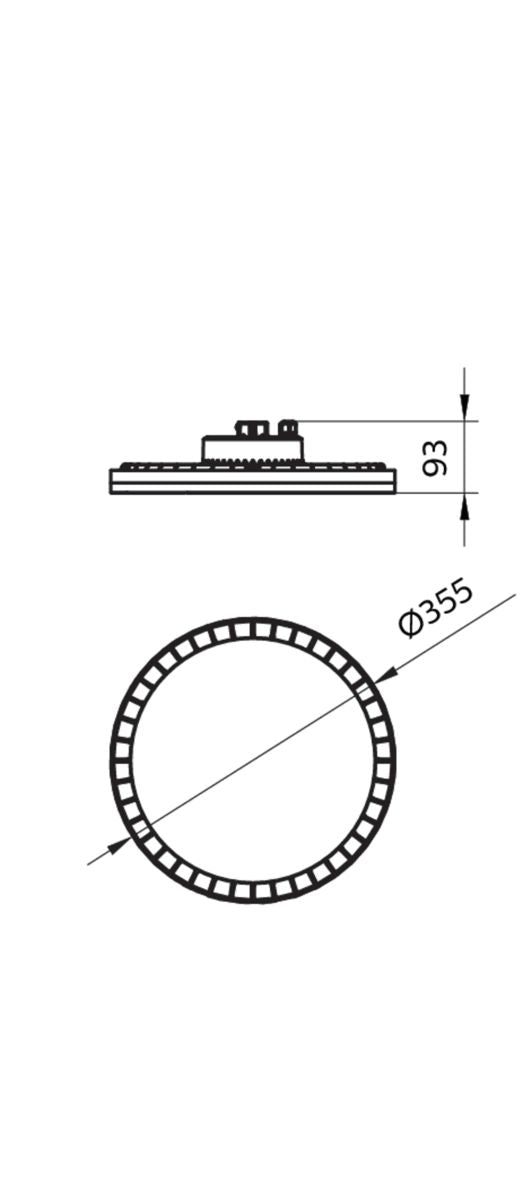

Outer-diameter (mm)
Outer diameter of the component.
355
Type of wiring
Ending
Number of poles
3
Conductor cross section (mm²)
0

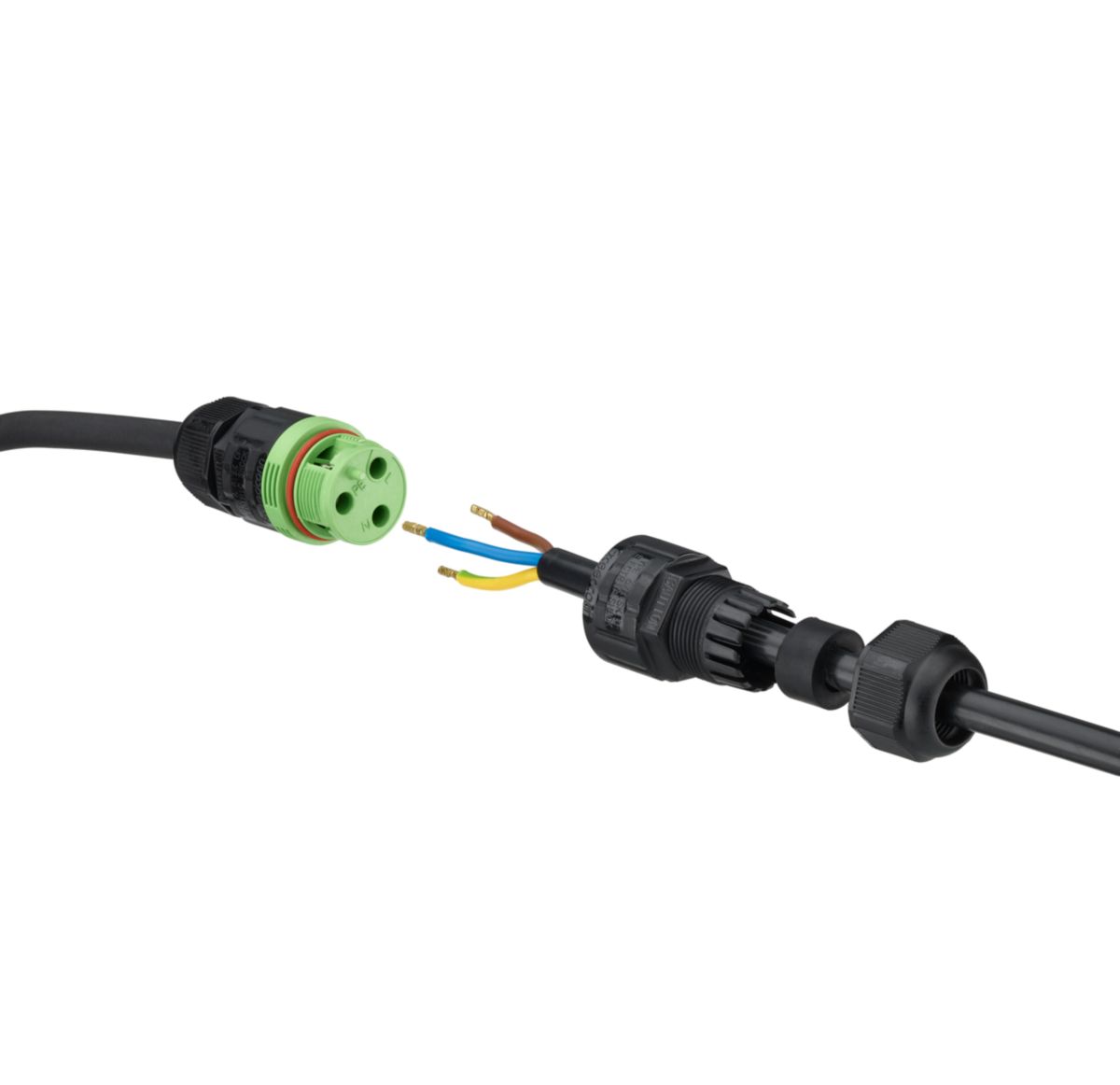

Connection type
Other
With protective cover
No
Max. number of luminaires per miniature circuit breaker B16
6
Max. number of luminaires per miniature circuit breaker C16
8
