Philips Coreline Hall beam - 33570400

Notice: This product is discontinued

Discontinued
Philips Coreline Hall beam - 33570400
Philips Coreline Hall beam - 33570400
Philips Coreline Hall beam - 33570400
Philips Coreline Hall beam - 33570400
Philips Coreline Hall beam - 33570400
Philips Coreline Hall beam - 33570400
Philips Coreline Hall beam - 33570400
Philips Coreline Hall beam - 33570400
Philips Coreline Hall beam - 33570400
Philips Coreline Hall beam - 33570400
Philips Coreline Hall beam - 33570400
Philips Coreline Hall beam - 33570400
Image may vary slightly
See specifications for accurate information.
Reference: E3CPU
Brand: Philips
Mfr. Part: 33570400

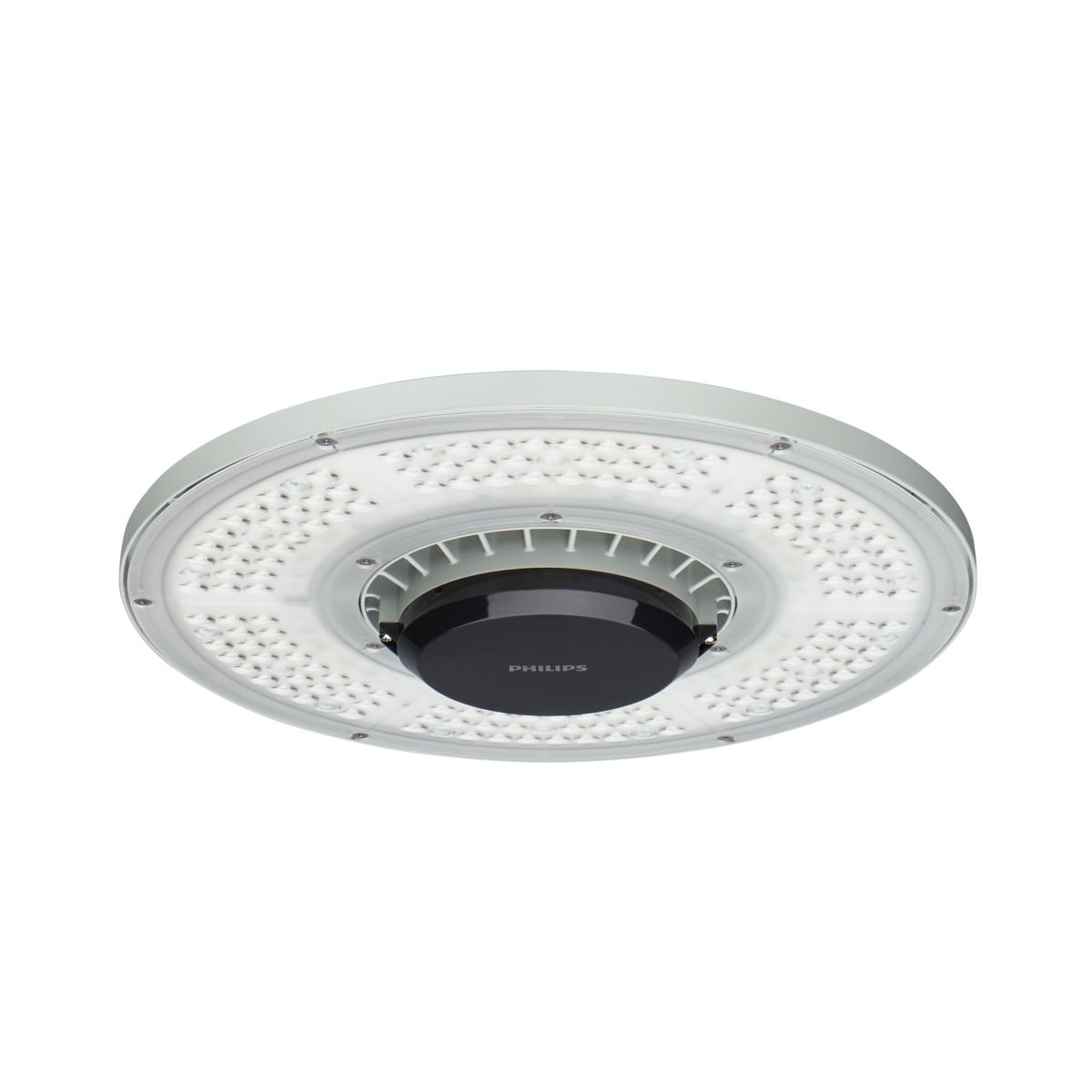

Philips Coreline High-bay luminaire hall beam, effective luminous flux according to IEC 10000lm, specific luminous flux luminaire 150lm/W, temperature 4000K, light color white, suitable for lamp power 56.45 - 69W, system power 69W, beam angle extremely wide beam >80, pendant.

View all
Note: product cannot be returned

Notice: This product is discontinued

Description
Specifications
Downloads

Description

Philips Coreline High-bay luminaire hall beam, effective luminous flux according to IEC 10000lm, specific luminous flux luminaire 150lm/W, temperature 4000K, light color white, suitable for lamp power 56.45 - 69W, system power 69W, beam angle extremely wide beam >80, pendant.

Downloads

Specifications

Mounting method
Pendant
Lamp type
LED not exchangeable
With light source
Yes
Suitable for number of lamps
1
Suitable for auxiliary lamp
No
Lamp holder
None
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Aluminium
Colour housing
Grey
Voltage-type
AC
Nominal voltage (V)
220 V to 240 V
Nominal current (mA)
280 mA to 350 mA
LED nominal current at constant current (mA)
80 mA to 80 mA
Type of control gear
LED operating device current-controlled
Exchangeable control gear
No
With control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
Yes
Light distributor
Focal lens
Light sharing
Symmetric
Reflector
None
Material reflector
Without reflector
Beam angle
Extreme wide beam >80°
Colour consistency (McAdam ellipse)
SDCM5
Rated life time L70/B50 at 25 °C (h)
70000
Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
80
Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
5
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP65
Impact strength
IK07
Ball-proof
No
Protection class
I
Luminaire with limited surface temperature, sign "D“
Yes
Rated ambient temperature according to IEC62722-2-1 (°C)
-30 °C to 45 °C
Emergency power supply integrated
No
Suitable for emergency lighting
No
Filament test according to IEC 60695-2-11
650 °C - 30 s
Suitable for lamp power (W)
56.45 W to 69 W
Max. system power (W)
69
Rated luminous flux according to IEC 62722-2-1 (lm)
10500
Luminaire efficacy (lm/W)
152
Colour of light
White
Colour temperature (K)
4000 K to 4000 K
Colour rendering index CRI
80-89
Total harmonic distortion
20
Power factor
0.95
Constant light output (CLO)
No
Colour temperature adjustable
No
Beam angle adjustable
No
Luminous flux adjustable
No

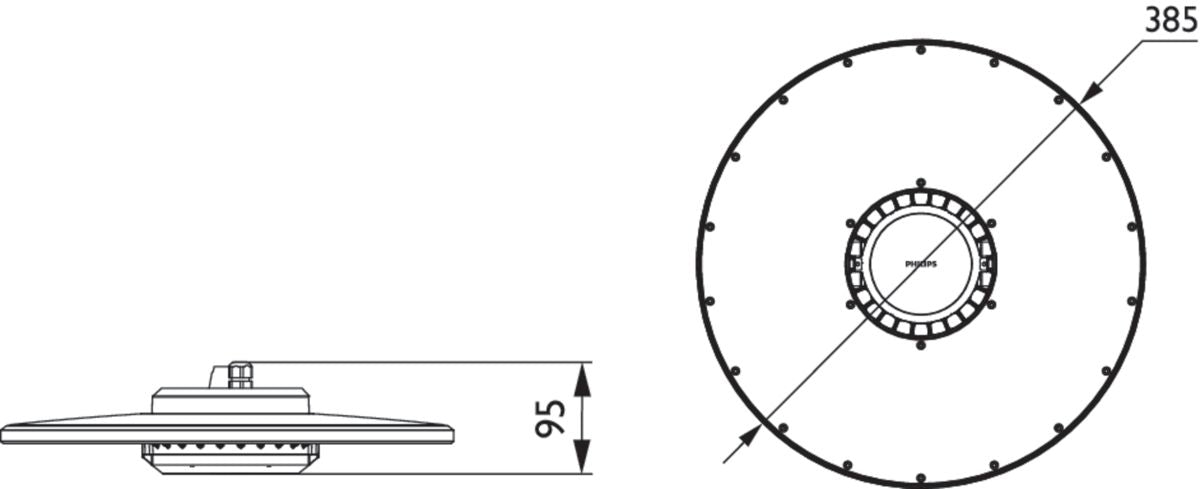

Height/depth (mm)
95
Outer-diameter (mm)
Outer diameter of the component.
385
Built-in height/depth (mm)
95
Type of wiring
Ending
Number of poles
3
Conductor cross section (mm²)
1
Connection type
Push-in clamp
With protective cover
No
Max. number of luminaires per miniature circuit breaker B16
6
Max. number of luminaires per miniature circuit breaker C16
8
