Osram Halotronic Transformer Low-Voltage Light System - 4008321073037

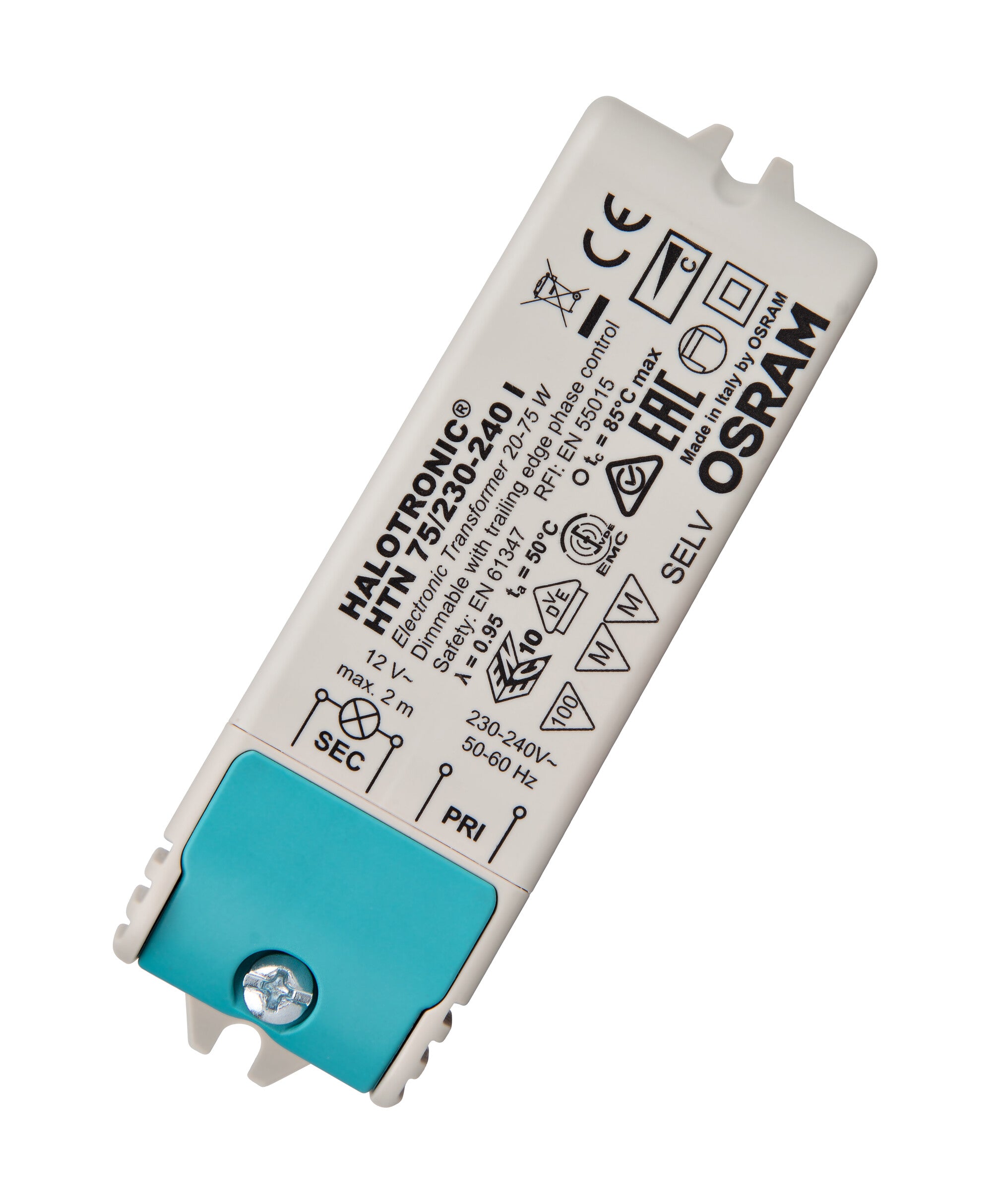

This transformer from Osram's Halotronic Compact series has a primary voltage of 230V and secondary voltage of 11.5V. Through-wiring on the primary side is also possible. The transformer also features short-circuit protection and overload protection. The output of this Halotronic Compact halogen transformer is from 20 to 75W. The switching principle used here is phase cut. Furthermore, it features 1 output (pairs) and has the following dimensions: length 104mm, width 33mm, height 22mm .
- Regular price
- $60.55 USD
Description
Electronic transformers are used for low-voltage halogen lamps. The product features include line frequency of 50…60 Hz and RI suppression compliant to EN 55015 (A1: 2007)/CISPR 15, EN 55022 standards. They also meet the line harmonics as per EN 61000-3-2 and immunity according to EN 61547 standards. From the safety perspective, they adhere to EN 61347 standards. These transformers come with short-circuit protection, overload protection, and overtemperature protection, which are electronically reversible. There is electrical isolation between the primary side and the secondary side. However, switching between electronic transformer and lamp is not permitted. The energy efficiency of these transformers is equal to or greater than 91 % as per ErP regulation 2012/1194/EC. These transformers are dimmable on the leading edge and trailing edge.
The product benefits include very low power loss due to high efficacy. It also comes with strain relief suitable for different cable types. It is suitable for space-critical installation thanks to its compact functional design. The extremely compact transformer is ideal for highly space-critical installation conditions. It operates protectively throughout the entire partial-load range ensuring long lamp life.
The areas of application for this product span across various domains including:
- Effect and accent lighting
- Living rooms
- Object lighting
- Conference rooms
- Restaurants
- Recessed and surface-mounted furniture luminaires
- Shop lighting
- Event rooms
