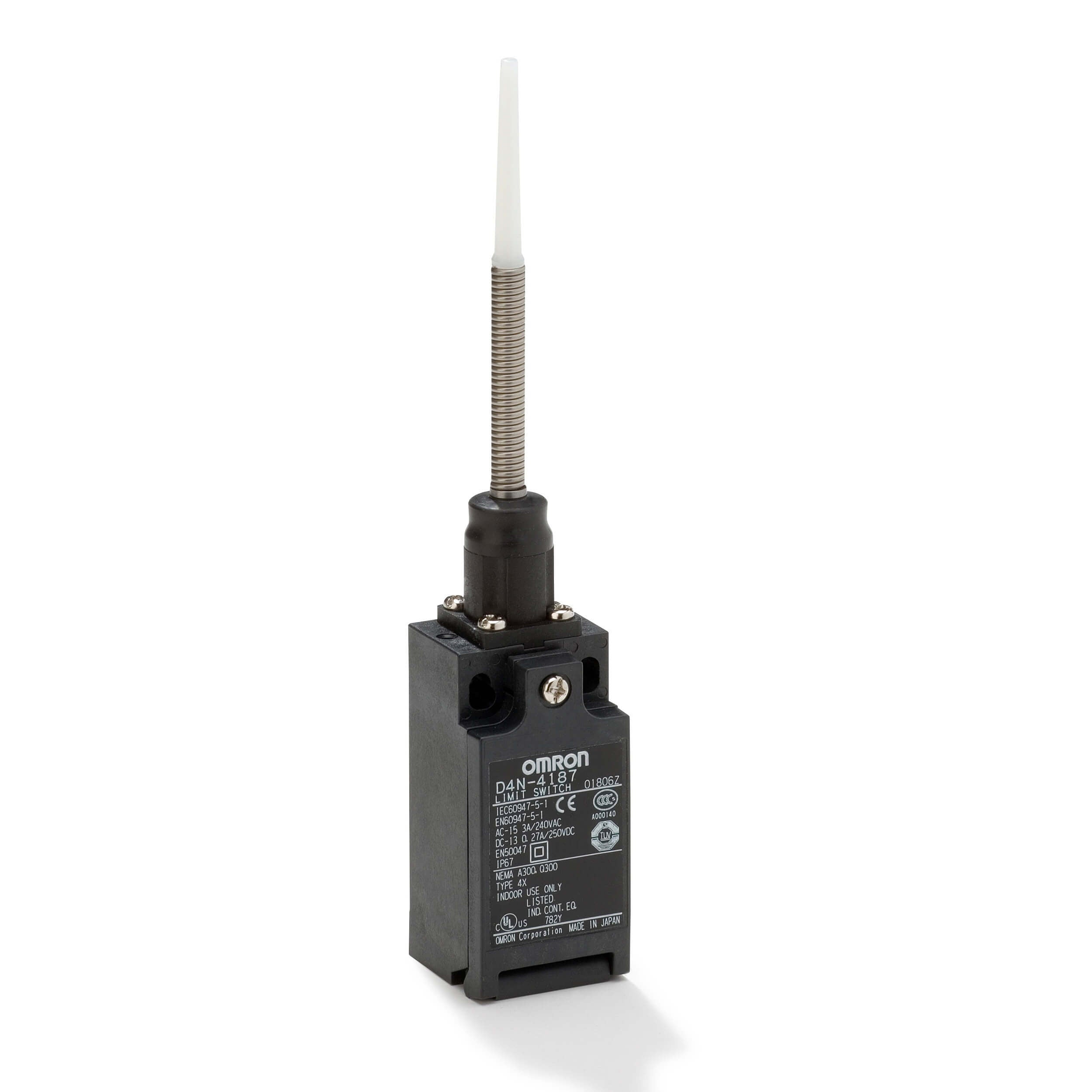

Omron SAFETY PRODUCTS Limit Switch - D4N4187

Omron SAFETY PRODUCTS Limit Switch - D4N4187
Omron SAFETY PRODUCTS Limit Switch - D4N4187
Image may vary slightly
See specifications for accurate information.
Reference: E28YM
Brand: Omron
Mfr. Part: D4N 0519C

D4n series, miniature safety limit switch. The d4n series from omron is a miniature safety limit switch with a plastic housing, two built-in contacts and a wide range of head and actuator types. Direct opening mechanism. Various actuators. Double insulation. Standardized gold clad contacts provide high contact reliability. Can be used with both standard loads and micro loads. Free of lead, cadmium, and hexavalent chrome, reducing the burden on the environment. Conforms to en115 and en81-1. Safety limit switch.

View all
Note: product cannot be returned
$29.87
excl VAT
In stock +11 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 11 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 13 - 14 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

D4n series, miniature safety limit switch. The d4n series from omron is a miniature safety limit switch with a plastic housing, two built-in contacts and a wide range of head and actuator types. Direct opening mechanism. Various actuators. Double insulation. Standardized gold clad contacts provide high contact reliability. Can be used with both standard loads and micro loads. Free of lead, cadmium, and hexavalent chrome, reducing the burden on the environment. Conforms to en115 and en81-1. Safety limit switch.

Downloads

Product datasheet (EN)
pdf
Download

Specifications

Width sensor (mm)
31
Diameter sensor (mm)
16.6
Height of sensor (mm)
170
Length of sensor (mm)
30
Rated operation current Ie at AC-15, 125 V (A)
6
Rated operation current Ie at AC-15, 230 V (A)
3
Rated operation current Ie at DC-13, 125 V (A)
0.55
Rated operation current Ie at DC-13, 230 V (A)
0.27
Switching function
Quick-break switch
Switching function latching
No
Output electronic
No
Forced opening
No
Number of safety auxiliary contacts
0
Number of contacts as normally closed contact
1
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Type of interface
None
Type of interface for safety communication
None
Construction type housing
Cuboid
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Coating housing
Other
Type of control element
Spring-rod
Alignment of the control element
Other
Electrical connection
Type of electric connection.
Cable entry metrical
Status indication
No
Suitable for safety functions
Yes
Explosion safety gas
None
Explosion safety dust
None
Ambient temperature during operating (°C)
-30 °C to 70 °C
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP67
Degree of protection (NEMA)
Other
