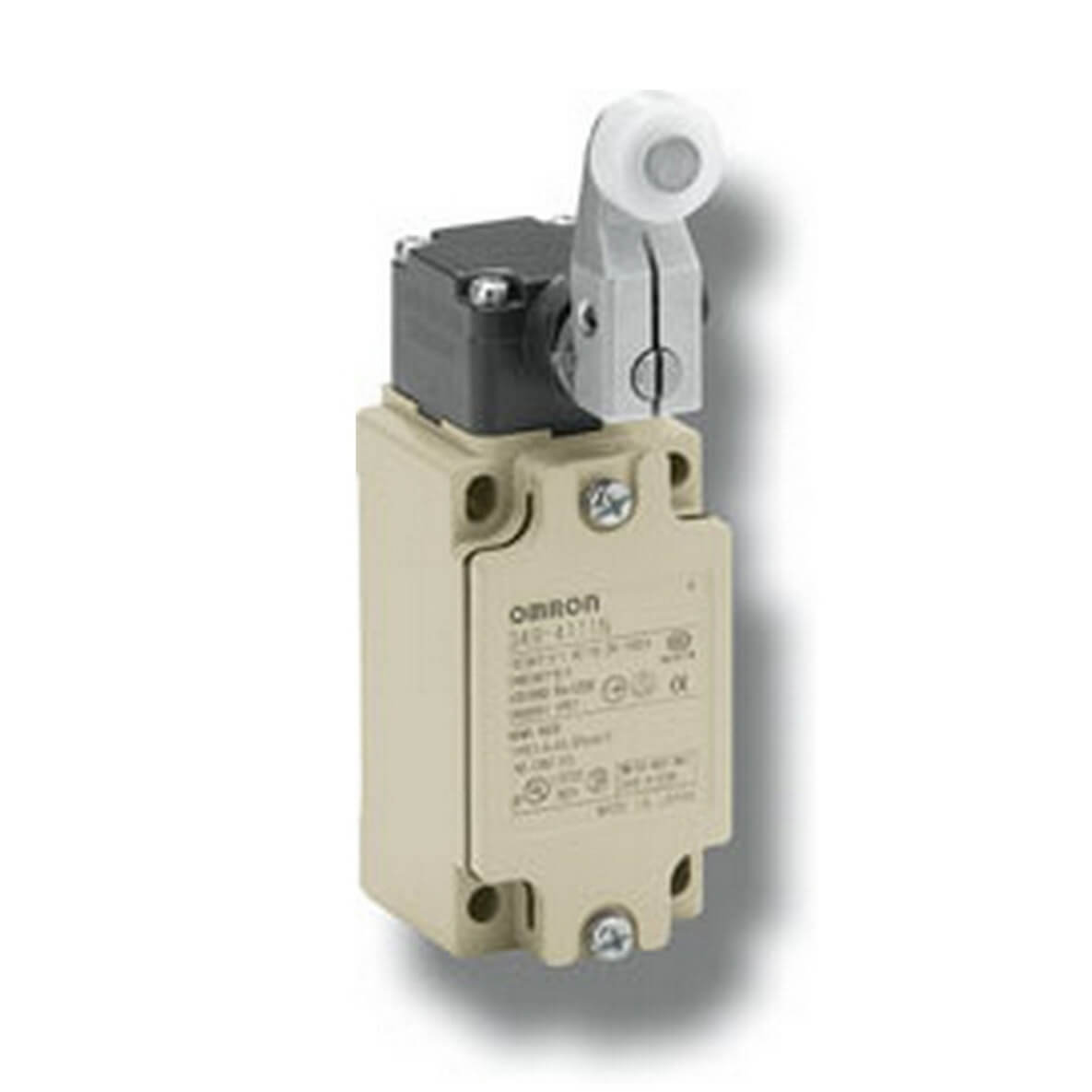

Omron SAFETY PRODUCTS Limit Switch - D4B4111N.1

Omron SAFETY PRODUCTS Limit Switch - D4B4111N.1
Omron SAFETY PRODUCTS Limit Switch - D4B4111N.1
Image may vary slightly
See specifications for accurate information.
Reference: E28YR
Brand: Omron
Mfr. Part: D4BN7004C

Omron SAFETY PRODUCTS D4B limit switch, (WxH) 40x77mm, actuator design roller lever, housing metal, actuator body roller lever, degree of protection (IP) IP67, switching function torque switching, electrical connection design cable entry metric, 1 break contact.

View all
$81.76
excl VAT
In stock +40 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 40 days. Up to 12 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 42 - 43 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

Omron SAFETY PRODUCTS D4B limit switch, (WxH) 40x77mm, actuator design roller lever, housing metal, actuator body roller lever, degree of protection (IP) IP67, switching function torque switching, electrical connection design cable entry metric, 1 break contact.

Downloads

Product datasheet (EN)
pdf
Download

Specifications

Width sensor (mm)
40
Diameter sensor (mm)
17.5
Height of sensor (mm)
131.3
Length of sensor (mm)
62
Rated operation current Ie at AC-15, 125 V (A)
10
Rated operation current Ie at AC-15, 230 V (A)
10
Rated operation current Ie at DC-13, 24 V (A)
6
Rated operation current Ie at DC-13, 125 V (A)
0.8
Rated operation current Ie at DC-13, 230 V (A)
0.4
Switching function
Quick-break switch
Output electronic
No
Forced opening
Yes
Number of safety auxiliary contacts
0
Number of contacts as normally closed contact
1
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Type of interface
None
Type of interface for safety communication
None
Construction type housing
Cuboid
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Metal
Coating housing
Other
Type of control element
Roller lever
Alignment of the control element
Other
Electrical connection
Type of electric connection.
Cable entry metrical
Status indication
No
Suitable for safety functions
Yes
Explosion safety gas
None
Explosion safety dust
None
Ambient temperature during operating (°C)
-40 °C to 80 °C
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP67
Degree of protection (NEMA)
6P
