Omron SAFETY PRODUCTS End Switch M Locking Function - D4NL4EFAB

Omron SAFETY PRODUCTS End Switch M Locking Function - D4NL4EFAB
Omron SAFETY PRODUCTS End Switch M Locking Function - D4NL4EFAB

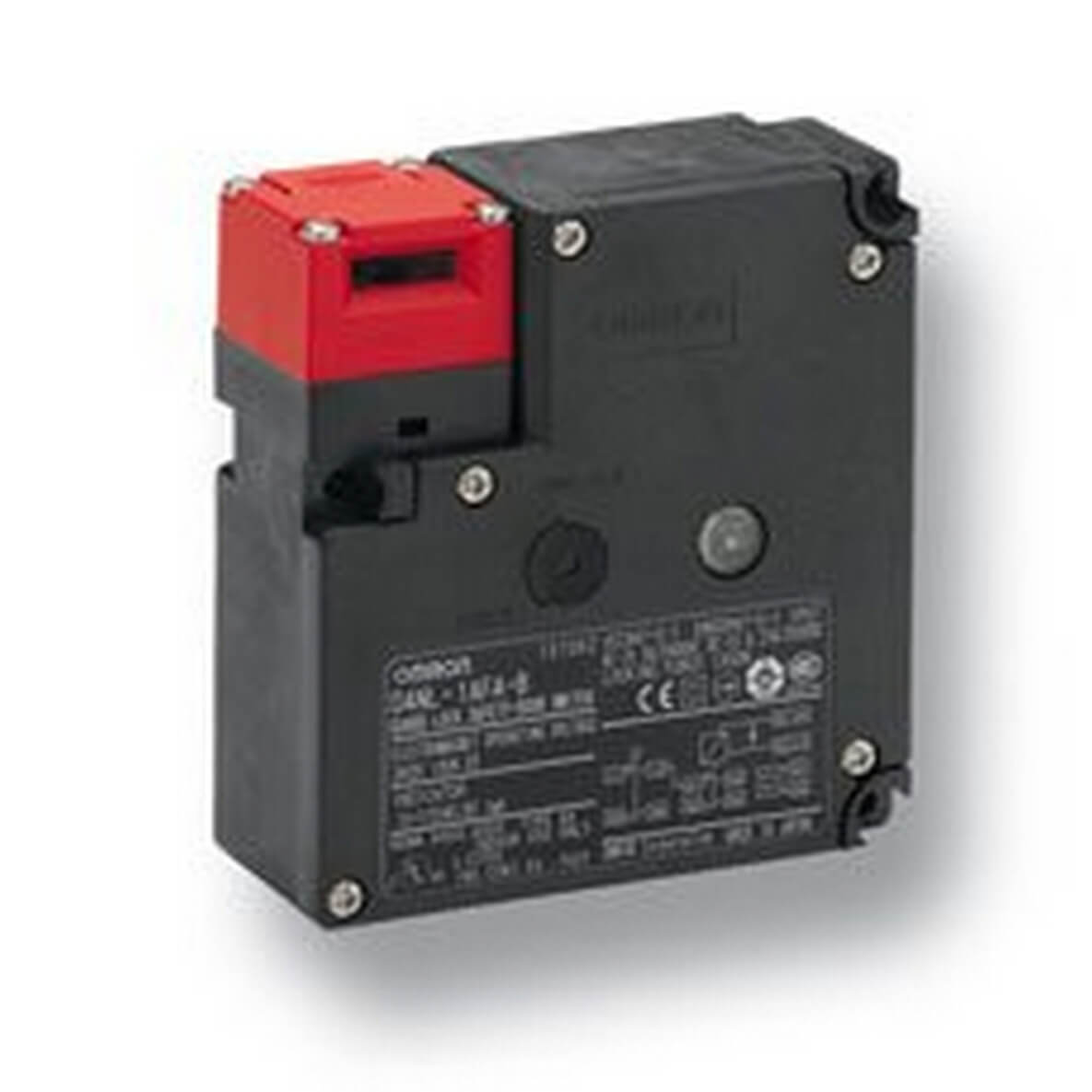

Image may vary slightly
See specifications for accurate information.
Reference: E28YK
Brand: Omron
Mfr. Part: D4NL0015B

D4nl safety guard-lock door switch. A lead free, environmentally friendly solenoid interlock switch available with either a solenoid lock/mechanical release mechanism (power to lock) or a mechanical lock/solenoid release mechanism (power to unlock). sliding, hinged and removable guarding devices such as grids, hoods or doors can be monitored and locked in place with these safety guard lock switches. Safety door switch with either electromagnetic lock or unlock mechanism. Four head mounting directions possible. Four built-in contacts. Strong key holding force, 1300 n.

View all
Note: product cannot be returned
$239.60
excl VAT
In stock +11 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 11 days. Up to 15 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 13 - 14 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

D4nl safety guard-lock door switch. A lead free, environmentally friendly solenoid interlock switch available with either a solenoid lock/mechanical release mechanism (power to lock) or a mechanical lock/solenoid release mechanism (power to unlock). sliding, hinged and removable guarding devices such as grids, hoods or doors can be monitored and locked in place with these safety guard lock switches. Safety door switch with either electromagnetic lock or unlock mechanism. Four head mounting directions possible. Four built-in contacts. Strong key holding force, 1300 n.

Downloads

Product datasheet (EN)
pdf
Download

Specifications

Status indication
Yes
Suitable for safety functions
Yes
Guard locking force (N)
1300
With escape release
Yes
Type of guard locking
Quiescent current principle
Rated control supply voltage Us magnet drive at AC 50 Hz (V)
230 V to 230 V
Rated control supply voltage Us magnet drive at AC 60 Hz (V)
230 V to 230 V
Rated control supply voltage Us magnet drive at DC (V)
20.4 V to 26.4 V
Width sensor (mm)
88.5
Height of sensor (mm)
35.5
Length of sensor (mm)
95
Number of safety auxiliary contacts
0
Number of contacts as normally closed contact
3
Number of contacts as normally open contact
2
Number of contacts as change-over contact
0
Type of switching contact
Slow-action switch
Rated operation current Ie at AC-15, 24 V (A)
0
Rated operation current Ie at AC-15, 125 V (A)
3
Rated operation current Ie at AC-15, 230 V (A)
0
Rated operation current Ie at DC-13, 24 V (A)
0
Rated operation current Ie at DC-13, 125 V (A)
0.27
Rated operation current Ie at DC-13, 230 V (A)
0
Construction type housing
Special construction
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Other
Type of interface
None
Type of interface for safety communication
None
Electrical connection
Type of electric connection.
Cable entry metrical
Explosion safety gas
None
Explosion safety dust
None
Ambient temperature during operating (°C)
-10 °C to 55 °C
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP67
Degree of protection (NEMA)
Other
