Omron PHOTO ELECTRIC SensorS Light Sensor Energetic - E3JMDS70M4TGOMS

Notice: This product is discontinued

Discontinued

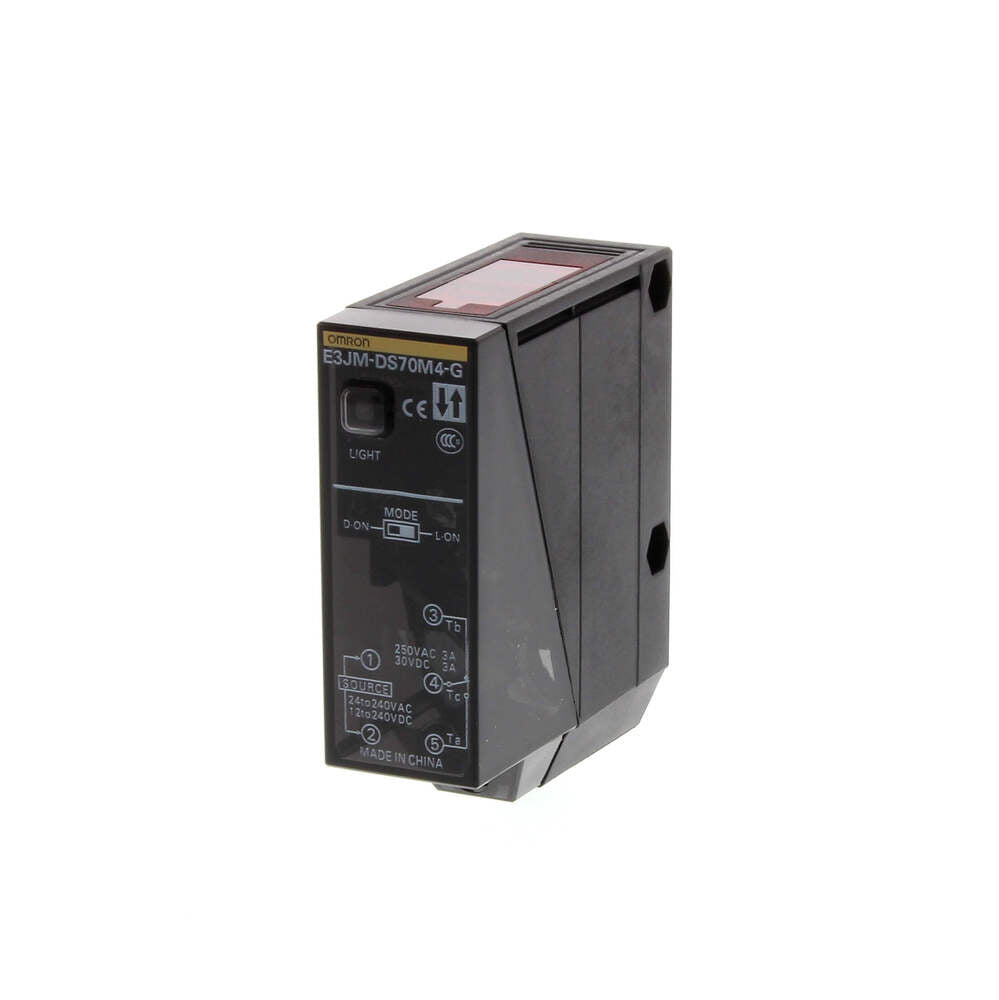

Omron PHOTO ELECTRIC SensorS Light Sensor Energetic - E3JMDS70M4TGOMS
Omron PHOTO ELECTRIC SensorS Light Sensor Energetic - E3JMDS70M4TGOMS
Image may vary slightly
See specifications for accurate information.
Reference: E2WW8
Brand: Omron
Mfr. Part: E3JM2004G

Omron PHOTO ELECTRIC SENSORS E3JM light sensor energetic, electrical connection design screw terminal, housing shape cube, 1 contact powered outlet, AWG number 22, operational safety class safety class 0, protection class (IP) IP66, protection rating (NEMA).

View all

Notice: This product is discontinued

Description
Specifications
Downloads

Description

Omron PHOTO ELECTRIC SENSORS E3JM light sensor energetic, electrical connection design screw terminal, housing shape cube, 1 contact powered outlet, AWG number 22, operational safety class safety class 0, protection class (IP) IP66, protection rating (NEMA).

Downloads

Product datasheet (EN)
pdf
Download

Specifications

Operating distance (mm)
0 mm to 700 mm
Signal output
Type of switching output.
Relay contact
Pre failure notice
No
Electrical connection
Type of electric connection.
Screw connection
With time function
Yes
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Max. switching distance (mm)
700
Max. output current (mA)
3000
Rated control supply voltage Us at AC 50HZ (V)
24 V to 240 V
With reflector
No
Rated control supply voltage Us at AC 60HZ (V)
24 V to 240 V
Rated control supply voltage Us at DC (V)
12 V to 240 V
Analogue output 0 V ... 10 V
No
Analogue output 0 mA ... 20 mA
No
Analogue output 4 mA ... 20 mA
No
Analogue output -10 V ... +10 V
No
With other analogue output
No
Setting procedure
Manual adjustment
With communication interface analogue
No
With communication interface AS-Interface
No
With communication interface CANOpen
No
With communication interface DeviceNet
No
With communication interface Ethernet
No
With communication interface INTERBUS
No
With communication interface PROFIBUS
No
With communication interface RS-232
No
With communication interface RS-422
No
With communication interface RS-485
No
With communication interface SSD
No
With communication interface SSI
No
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP66
Type of switch function
Change-over contact (NO/NC)
Operation agent-safety class
Safety class 0
Sensing mode
Light-/dark switching
Material of optical surface
Plastic
Response time (ms)
30
Switching frequency (Hz)
16
Type of safety according to IEC 61496-1
1
Laser protection class
None
Wavelength of the sensor (nm)
950
Type of light
Infrared light
Light dot (mm²)
100
AWG-number
22
Material of cable sheath
Other
With restart blockage
No
Suitable for safety functions
No
Voltage-type
AC/DC
Degree of protection (NEMA)
Other
Ambient temperature (°C)
-25 °C to 55 °C
Width sensor (mm)
25
Length of sensor (mm)
75
Height of sensor (mm)
80
