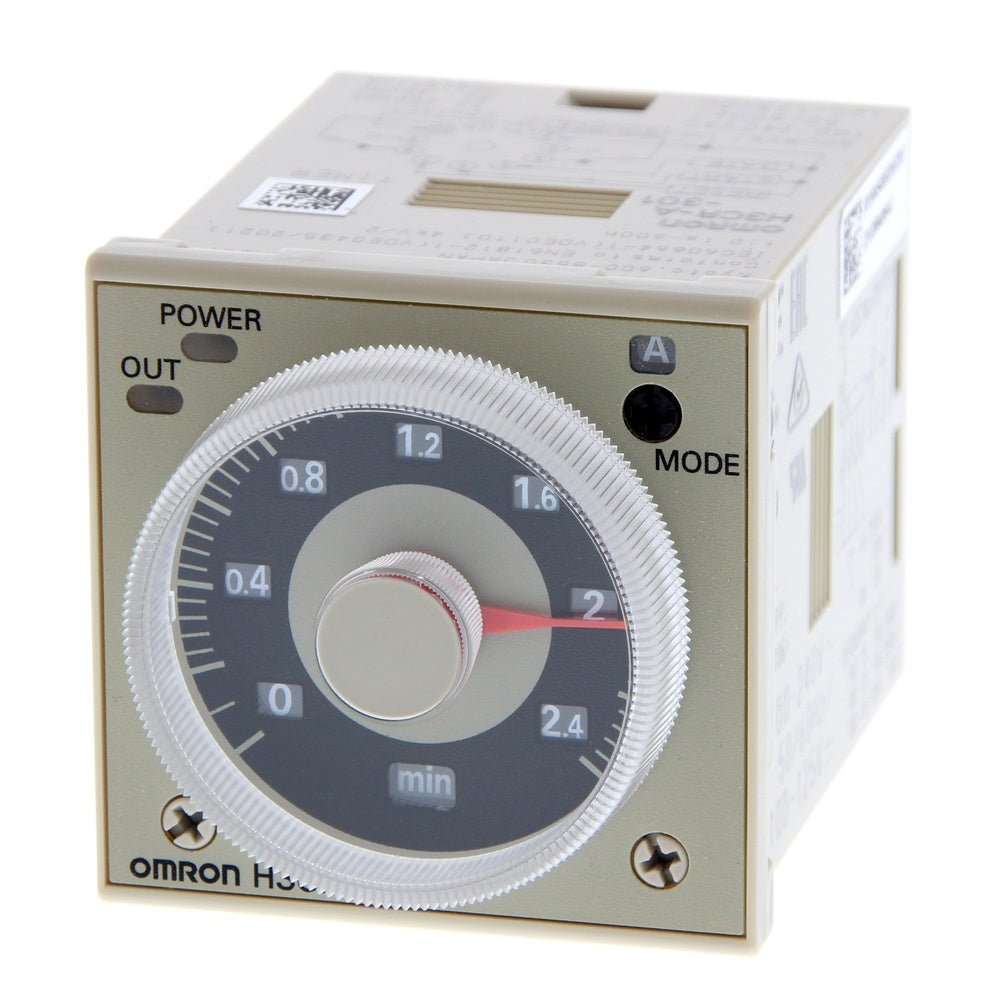

Omron H3CR Multi-Function Timer Relay 48x48mm - H3CR8096C

Omron H3CR Multi-Function Timer Relay 48x48mm - H3CR8096C
Omron H3CR Multi-Function Timer Relay 48x48mm - H3CR8096C
Omron H3CR Multi-Function Timer Relay 48x48mm - H3CR8096C
Omron H3CR Multi-Function Timer Relay 48x48mm - H3CR8096C
Reference: E3WPQ
Brand: Omron
Mfr. Part: H3CR8096C

Industrial 8-pin plug-in timer relay with 1/16 DIN (48x48mm) form factor. Features multiple timing modes including on-delay, flicker-on/off, interval, and one-shot delay. Operating range of 0.05s to 300h with DPDT output rated at 5A. Compatible with 24-48 VAC or 12-48 VDC input power. Includes screw terminal connections and dual changeover contacts rated at 250 VAC/30 VDC.

View all
$106.60 USD
excl VAT
In stock Ships in 39d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 39 days. Up to 43 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD (excl VAT)
Expected delivery in 41 - 43 business days

We sell only to registered businesses
Description
Specifications
Downloads

Description

Industrial 8-pin plug-in timer relay with 1/16 DIN (48x48mm) form factor. Features multiple timing modes including on-delay, flicker-on/off, interval, and one-shot delay. Operating range of 0.05s to 300h with DPDT output rated at 5A. Compatible with 24-48 VAC or 12-48 VDC input power. Includes screw terminal connections and dual changeover contacts rated at 250 VAC/30 VDC.

Pros:

  • Wide voltage range: 24-48 VAC/12-48 VDC compatibility
  • Multiple timing modes for versatile applications
  • Extended timing range from 0.05s to 300h
  • Standard 1/16 DIN size for easy panel mounting

Downloads

Product datasheet (EN)
pdf
Download
Product datasheet (EN)
pdf
Download

Specifications

Electrical connectioni
Plug-in connection
Function delay-on energization
Yes
Function delay on de-energization
No
Function floating contact on energization
Yes
Function floating contact on de-energization
No
Function star-delta
No
Function pulse shaping
No
Function flashing, starting with pause, fixed time
No
Function flashing, starting with pulse, fixed time
No
Clock function, starting with pause, variable
No
Clock function, starting with pulse, variable
Yes
With plug-in socket
No
Remote operation possible
No
Suitable as remote control
No
Pluggable on auxiliary contact block
No
Rated control supply voltage Us at AC 50HZ (V)
24 to 48
Rated control supply voltage Us at AC 60HZ (V)
24 to 48
Rated control supply voltage Us at DC (V)
12 to 48
Voltage type for actuating
AC/DC
Nominal current (A)
5
