OCS Tile Passage ABS 169mm Black - 58.80.011

OCS Tile Passage ABS 169mm Black - 58.80.011
OCS Tile Passage ABS 169mm Black - 58.80.011

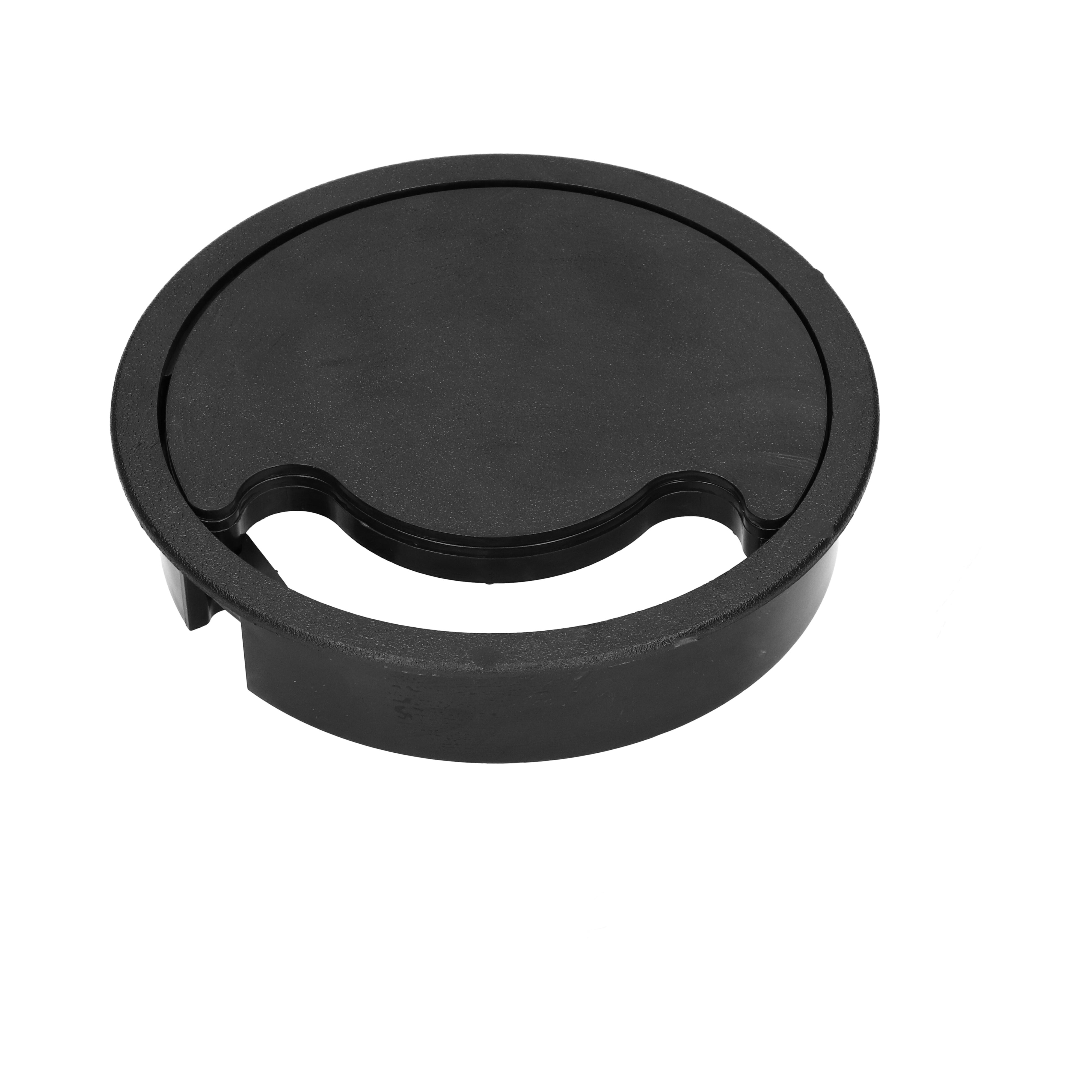

Image may vary slightly
See specifications for accurate information.
Reference: E3HWK
Brand: OCS
Mfr. Part: 58.80.011

This OCS floor box/floor duct cover set is designed for floor ducts, hollow floors, and double floors. The cover set is black (RAL 9005) and features a carpet protection frame. It allows for a dry floor maintenance, with an installation diameter of 169mm and an outer diameter of 180mm. The plastic tile feedthrough is ideal for routing cables through a hollow space in the floor. Available in various diameters including 169mm, the cable entrance on the feedthrough is continuously adjustable and can optionally be sealed with neoprene rubber.

View all
Note: product cannot be returned
$37.59
excl VAT
In stock +20 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 20 days. Up to 78 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 22 - 23 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

This OCS floor box/floor duct cover set is designed for floor ducts, hollow floors, and double floors. The cover set is black (RAL 9005) and features a carpet protection frame. It allows for a dry floor maintenance, with an installation diameter of 169mm and an outer diameter of 180mm. The plastic tile feedthrough is ideal for routing cables through a hollow space in the floor. Available in various diameters including 169mm, the cable entrance on the feedthrough is continuously adjustable and can optionally be sealed with neoprene rubber.

OCS offers an ideal solution for routing cables through a hollow space floor with tile conduits. The tile conduits are available in various diameters of 102mm, 127mm, 169mm, and 209mm respectively.

Downloads

Specifications

Model
Round
Suitable for sub-floor duct
Yes
Suitable for hollow floor
Yes
Suitable for double floor built-in
Yes
Depth of flooring recess (mm)
0
Floor maintenance
Dry
Frame model
Carpet protection frame
Built-in diameter (mm)
169
Outer-diameter (mm)
Outer diameter of the component.
180
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Other
Color
Black
