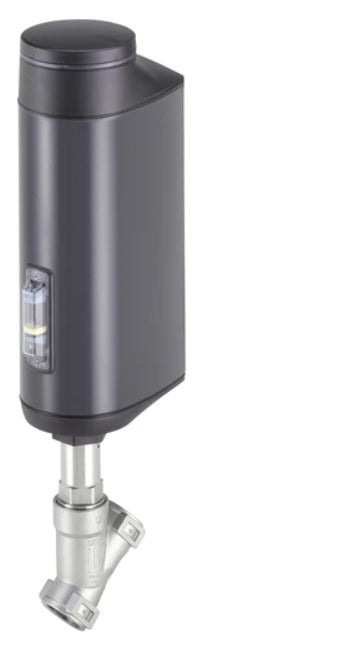

NPT 1/2 inch On/Off NC Stainless Steel Electric Angle Seat Valve - 3320 - 20018391
Bürkert angle seat valve (type 3320) with NPT 1/2 inch female threaded ports. Designed for on/off applications. For media temperatures ranging from -10 to 130°C (14 to 266°F) and a maximum pressure of up to 25 bar (351 psi). Housing of stainless steel with a PTFE sealing and a Kv-value of 5 m3/h (Cv-value of 5.8 gpm). Electrically actuated with a 24V DC actuator. The actuator uses a büs communications protocol.
- Regular price
- $3988.97
Description
This Bürkert 2/2-way (type 3320) electric angle seat valve is designed for on/off applications. This valve has NPT 1/2 inch female threaded ports. The valve has a stainless steel housing with a PTFE sealing. The valve is delivered as normally closed (NC), which means the valve opens when voltage is applied. The actuator has an energy storage unit. The unit can be used to set a safe position for the valve to return to in case of power loss. For media temperatures ranging from -10 to 130°C (14 to 266°F) and a maximum pressure of up to 25 bar (351 psi). The valve has a Kv-value of 5 m3/h (Cv-value of 5.8 gpm). The stainless steel housing is durable, suitable for corrosive media and harsh environments. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. The valve takes 2.2 s to go from fully open to fully closed position. The actuator uses a büs communications protocol.
Pros:
- Versatile diagnostic, process monitoring and preventive maintenance thanks to fieldbus
- High IP protection IP65/67 ensures adequate splash protection
- An electric actuator with a ball screw precisely positions the control cone
Series:
The Bürkert Type 3320 is the best solution for shut-off applications under demanding operating conditions. Positioning the control cone is extremely precise with the electric actuator and ball screw. This system's unique feature is its high positioning speed of up to 6 mm/s, which reacts quasi-delay-free to process signals. With their closed design and robust surfaces, the actuator and valve are perfectly matched. The result is a fast, residue-free cleaning that meets hygienic requirements. The Type 3320 is well suited for harsh environments thanks to its protection class IP65/67 and high impact and vibration resistance. With the 3320 valve, you can monitor your processes, diagnose valve problems, and perform predictive maintenance.
