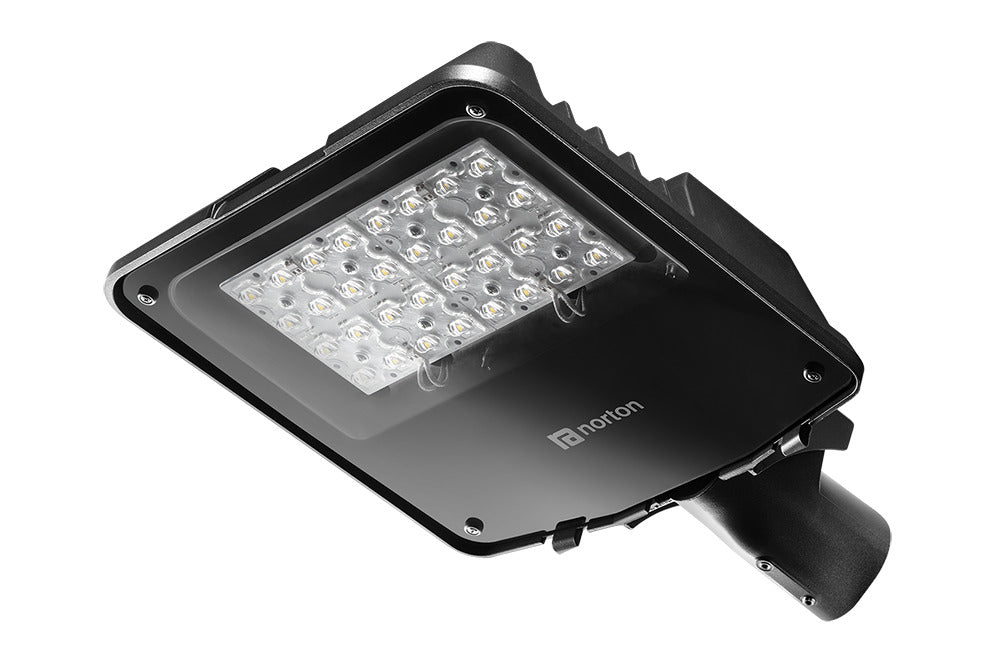

Norton KFA LED Street Lighting Fixture - 3139011816

Norton KFA LED Street Lighting Fixture - 3139011816
Norton KFA LED Street Lighting Fixture - 3139011816
Image may vary slightly
See specifications for accurate information.
Reference: E3APP
Brand: Norton
Mfr. Part: 3139011816

Norton KFA LED Case luminaire street and square lighting fixture, length 474mm, effective luminous flux according to IEC 13750lm, specific luminous flux luminaire 125lm/W, temperature 4000K, light color white, suitable for lamp power 110W, system power 110W, set-up/sliding, housing anthracite.

View all
Note: product cannot be returned
$542.16
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 5 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: Free
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

Norton KFA LED Case luminaire street and square lighting fixture, length 474mm, effective luminous flux according to IEC 13750lm, specific luminous flux luminaire 125lm/W, temperature 4000K, light color white, suitable for lamp power 110W, system power 110W, set-up/sliding, housing anthracite.

Downloads

Specifications

Mounting method
Post top/side entry
Lamp type
LED not exchangeable
With light source
Yes
Suitable for number of lamps
1
Lamp holder
None
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Aluminium
Surface protection
The type of surface protection of the component.
Powder coating
Colour housing
Anthracite
Material cover
Glass transparent
Voltage-type
AC
Nominal voltage (V)
220 V to 240 V
Type of control gear
LED operating device current-controlled
With control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
Yes
Light distributor
Focal lens
Colour consistency (McAdam ellipse)
SDCM4
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Rated life time L90/B10 at 25 °C (h)
100000
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP66
Adjustable optics
No
Suitable for spigot size (mm)
42 mm to 60 mm
Impact strength
IK10
Protection class
I
Luminaire with limited surface temperature, sign "D“
No
Rated ambient temperature according to IEC62722-2-1 (°C)
-40 °C to 55 °C
Remote control
None
With radio control
No
With light regulation program control
No
With connection cable
Yes
Cable length (m)
1
Suitable for lamp power (W)
110 W to 110 W
Max. system power (W)
110
Rated luminous flux according to IEC 62722-2-1 (lm)
13750
Luminaire efficacy (lm/W)
125
Colour of light
White
Colour temperature (K)
4000 K to 4000 K
Colour rendering index CRI
70-79
Power factor
0.96
Width (mm)
The product's width without packaging.
354
Height/depth (mm)
95
Length (mm)
474
Type of wiring
Ending
Number of poles
3
Conductor cross section (mm²)
1.5
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Connection type
Other
Compatible with Amazon Alexa
No
IFTTT support available
No
