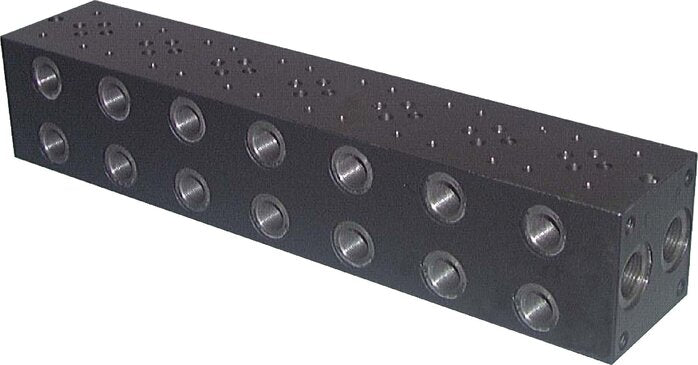

NG6 (D03) Sub-Plate 6 Stations without Relief Valve 315bar

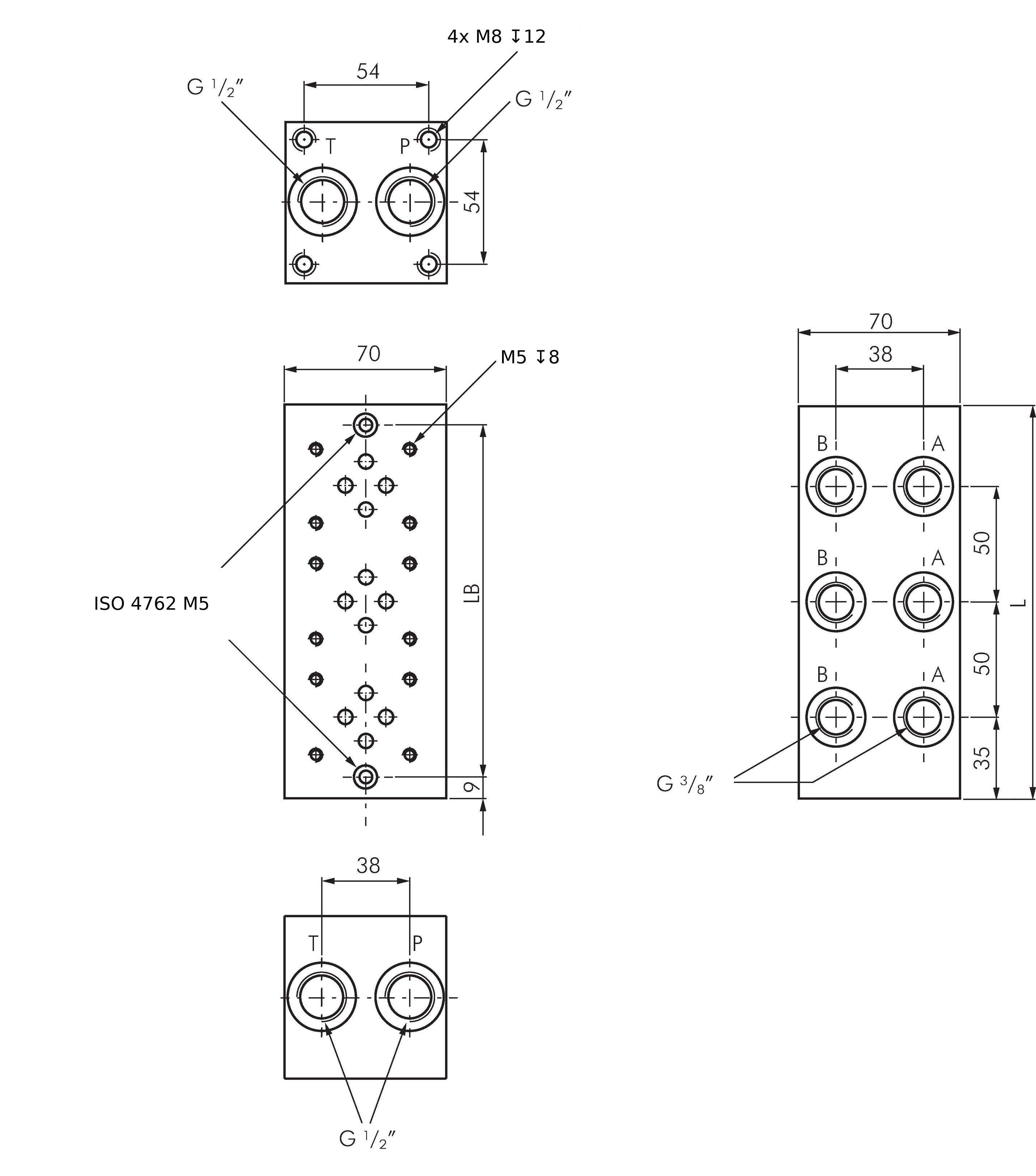

Sub-plate for 6 NG6 / D03 valves, up to 315 bar, without pressure relief valve. Each station has its own A and B ports (G3/8) on the side; the P and T ports (G1/2) are drilled through and can be used from either end. Grey cast iron, nominal flow up to 30 l/min, length 320 mm.
- Regular price
- $559.42 USD
We sell only to registered businesses
Description
All 6 stations share the common P and T channels, so one pump line and one tank line supply every valve. Protect the circuit with a separate pressure relief valve, or choose the plate with built-in relief valve. Mount the plate with the four M8 threads on the end faces or through the lengthwise holes for M5 screws. Fix each valve or valve stack with four M5 socket head screws of property class 12.9, not included. Close unused stations with a blanking plate.
Pros:
- P and T usable from either end
- Standard NG6 / D03 pattern on every station
- Unused stations can be closed with a blanking plate
Cons:
- No relief valve - fit one in the circuit, or choose the plate with relief valve
- Nominal flow up to 30 l/min
- Valve fixing screws not included
Series:
Cast iron sub-plates for NG6 / D03 valves (DIN 24340-A6, ISO 4401-03, CETOP R 35 H-03, NFPA D03), with one to eight stations. The valves or valve stacks sit on top. Each station has its own A and B ports (G3/8) on the side, while P and T (G1/2) run through the plate and can be used from either end. The plates mount with M8 threads on the end faces or through lengthwise holes for M5 screws. Two versions are available: with a built-in pressure relief valve adjustable from 100 to 315 bar, or without. Operating pressure up to 315 bar, nominal flow up to 30 l/min (single plate without relief valve: 50 l/min), -20 to +80 °C. Valves are fixed with M5 socket head screws of property class 12.9, tightened to 8.9 Nm.
